Pioneer VSX-452 User Manual

* Illustration shows U.S. and Canadian models.
Q ® ®®@ ® ®
I
® @ ® @ @®@ @

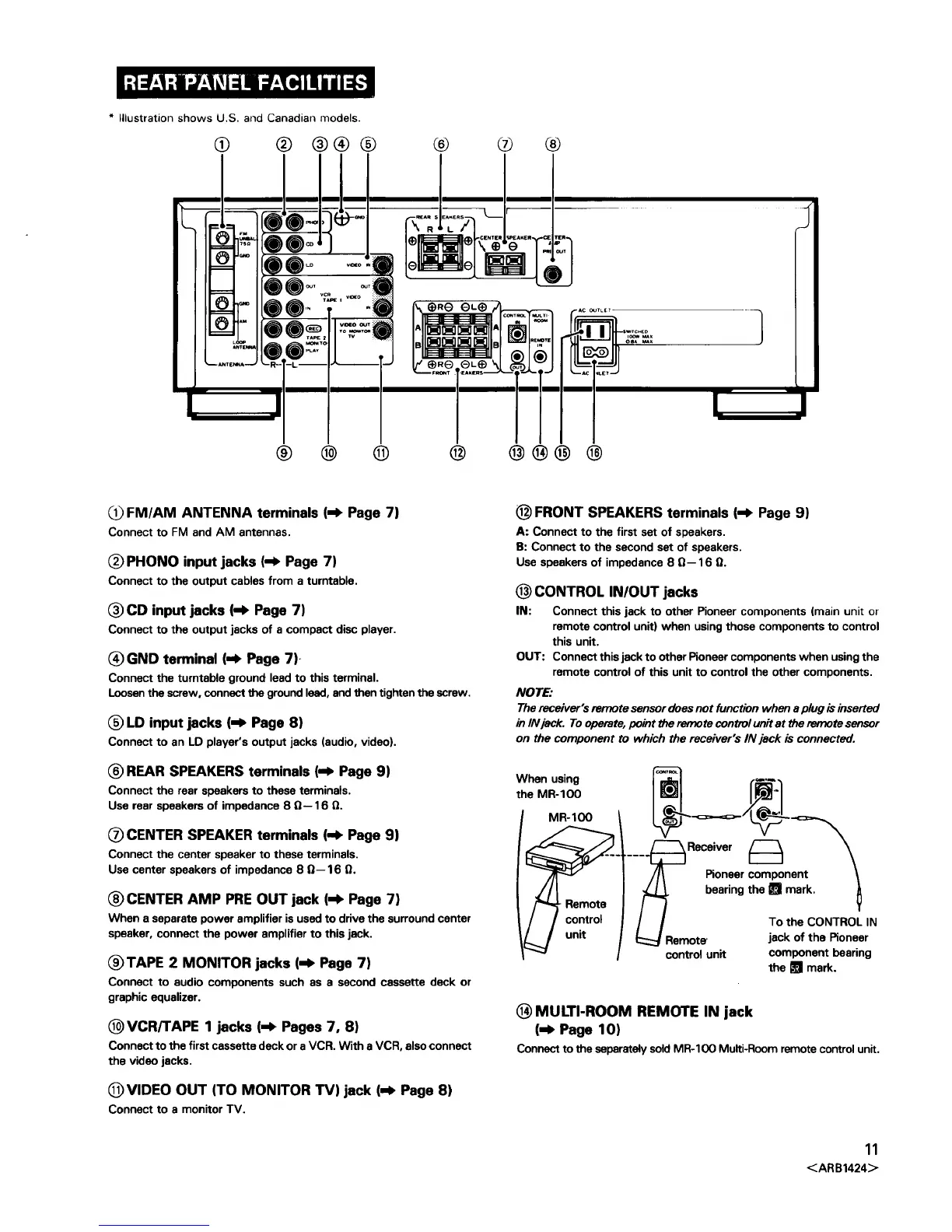

FM/AM ANTENNA terminals (-I_ Page 7)
Connectto FM andAM antennas.
_) PHONO input jacks (-I_ Page 7)
Connect to the output cables from a turntable.
(_) CD input jacks (-I_ Page 7)
Connect to the output jacks of a compact disc player.
_) GND terminal (,,_ Page 7).
Connect the turntable ground lead to this terminal.
Loosen the screw, connect the ground lead, and then tighten the screw.
(_) LD input jacks (-I_ Page 8)
Connect to an LD player's output jacks (audio, video).
(_ REAR SPEAKERS terminals (-I_ Page 9)
Connect the rear speakers to these terminals.
Use rear speakers of impedance 8 _-- 16 Q.
Q CENTER SPEAKER terminals (-I_ Page 9)
Connect the center speaker to these terminals.
Use center speakers of impedance 8 Q--16 t_.
CENTER AMP PRE OUT jack (-I_ Page 7}
When a separate power amplifier is used to drive the surround center
speaker, connect the power amplifier to this jack.
_) TAPE 2 MONITOR jacks (-I_ Page 7)
Connect to audio components such as a second cassette deck or
graphic equalizer.
_) VCR/TAPE 1 jacks (-I_ Pages 7, 8)
Connect to the first cassette deck or a VCR. With a VCR, also connect
the video jacks.
(_VIDEO OUT (TO MONITOR TV) jack (,-_ Page 8)
Connectto a monitorTV.
(_ FRONT SPEAKERS terminals |-I_ Page 9)
A: Connect to the first set of speakers.
B: Connect to the second set of speakers.
Use speakers of impedance 8 Q--16 0.
(_)CONTROL IN/OUT jacks
IN: Connect this jack to other Pioneer components (main unit or
remote control unit) when using those components to control
this unit.
OUT: Connect this jack to other Pioneer components when using the
remote control of this unit to control the other components.
NOTE:
The receiver's remote sensor does not function when a plug is inserted
in IN jack. To operate, point the remote control unit at the remote sensor
on the component to which the receiver's IN jack is connected.
When using
the MR-IO0
uni
___._ Receiver (_
/M Pioneer component
/'L"L}" bearing the _'1!mark'
/ I To the CONTROL IN
Remote jack of the Pioneer
control unit component bearing
the _1 mark.
(_ MULTI-ROOM REMOTE IN jack
(-I_ Page 10)
Connect to the separately sold MR- 100 Multi-Room remote control unit.
11
<ARB1424>

Pioneer VSX-452 Specifications

Power

continuous average power output	80 watts
continuous power output (surround mode)	20 W + 20 W (1 kHz, 0.8 %, 8 Q)
power requirements (U.S. and Canadian models)	AC 120 V, 60 Hz
power requirements (multi-voltage model)	AC 110 V/120--127 V/220 V/240 V
power consumption (U.S. and Canadian models)	240 W, 340 VA
power consumption (multi-voltage model)	620 W

FM Tuner Section

frequency range	87.5 MHz to 108 MHz
usable sensitivity mono	12.3 dBf, IHF (1.1 pV/76 o)
50 dB quieting sensitivity mono	16.8 dBf
50 dB quieting sensitivity stereo	38.6 dBf
signal-to-noise ratio mono	73 dB (at 65 dBf)
signal-to-noise ratio stereo	70 dB (at 85 dBf)
alternate channel selectivity	50 dB (400 kHz)
stereo separation	35 dB (1 kHz)
frequency response	30 Hz to 15 kHz +1 dB

AM Tuner Section

frequency range (9 kHz step)	531 kHz -- 1, 602 kHz
frequency range (10 kHz step)	530 kHz -- 1, 700 kHz
sensitivity (IHF, loop antenna)	350 pV/m
selectivity	20 dB

Weight and Dimensions

dimensions	420 (W) x 140.5 (H) x 349 (D) mm
dimensions in inches	16-9/16 (W) x 5-9/16 (H) x 13-3/4 (D) in
weight	8.3 kg (18 Ib 5 oz)
