Pioneer VSX-452 User Manual

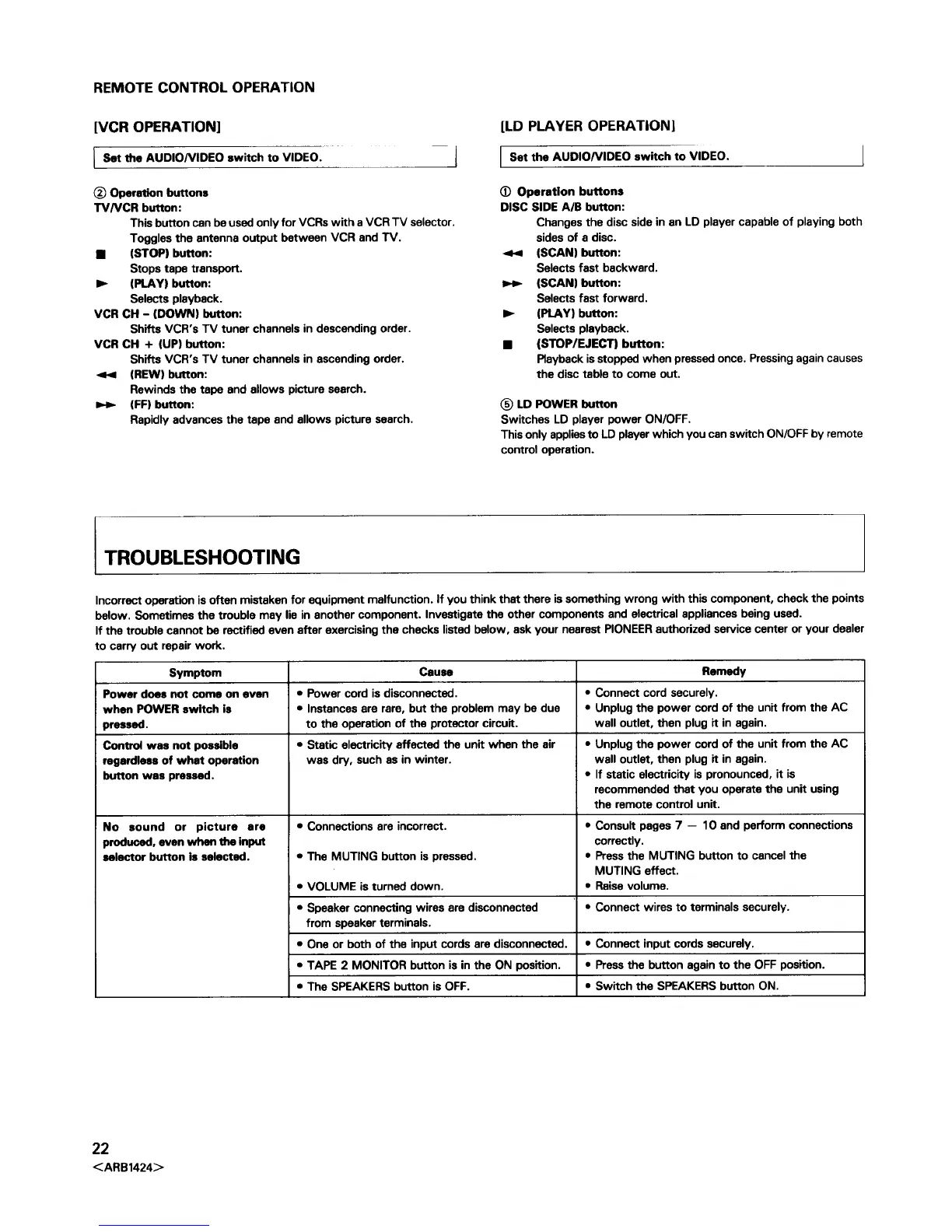

REMOTE CONTROL OPERATION
[VCR OPERATION]
I Set AUDIO/VIDEO switch VIDEO.
the to
J
(_ Operation buttons
TVNCR button:
This button can be used only for VCRs with aVCR TV selector.
Toggles the antenna output between VCR and TV.
• (STOP) button:
Stops tape transport.
I_ (PLAY) button:
Selects playback.
VCR CH - (DOWN) button:
Shifts VCR's "IV tuner channels in descending order.
VCR CH + (UP) button:
Shifts VCR's TV tuner channels in ascending order.
_41 (REW) button:
Rewinds the tape and allows picture search.
B-_ (FF) button:
Rapidly advances the tape and allows picture search.
[LD PLAYER OPERATION]
I Set the AUDIO/VIDEO switch to VIDEO.
_) Operation buttons
DISC SIDE A/B button:
Changes the disc side in an LD player capable of playing both
sides of a disc.
<P4 (SCAN) button:
Selects fast backward.
IM_ (SCAN) button:
Selects fast forward.
I_ (PLAY) button:
Selects playback.
• (STOP/EJECT) button:
Playback is stopped when pressedonce. Pressing again causes
the disc table to come out.
(_ LD POWER button
Switches LD player power ON/OFF.
This only appliesto LD player which you can switch ON/OFF by remote
control operation.
I TROUBLESHOOTING
Incorrect operation isoften mistaken for equipment malfunction. If you think that there is something wrong with this component, check the points
below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used.
If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest PIONEER authorized service center or your dealer
to carry out repair work.
Symptom Cause Remedy
Power does not come on even • Power cord is disconnected. • Connect cord securely.
when POWER switch is • Instances are rare, but the problem may be due • Unplug the power cord of the unit from the AC
pressed, to the operation of the protector circuit, wall outlet, then plug it in again.
Control was not possible • Static electricity affected the unit when the air • Unplug the power cord of the unit from the AC
regardless of what operation was dry, such as in winter, wall outlet, then plug it in again.
button was pressed. • If static electricity is pronounced, it is
recommended that you operate the unit using
the remote control unit.
• Connections are incorrect.
No sound or picture are
produced, even when the input
selector button is selected.
• The MUTING button is pressed.
• VOLUME is turned down.
• Speaker connecting wires are disconnected • Connect wires to terminals securely.
from speaker terminals.
• One or both of the input cords are disconnected. • Connect input cords securely.
• TAPE 2 MONITOR button is in the ON position. • Press the button again to the OFF position.
• The SPEAKERS button isOFF. • Switch the SPEAKERS button ON.
• Consult pages 7 -- 10 and perform connections
correctly.
• Press the MUTING button to cancel the
MUTING effect.
• Raise volume.
22
<ARB1424>

Pioneer VSX-452 Specifications

Power

continuous average power output	80 watts
continuous power output (surround mode)	20 W + 20 W (1 kHz, 0.8 %, 8 Q)
power requirements (U.S. and Canadian models)	AC 120 V, 60 Hz
power requirements (multi-voltage model)	AC 110 V/120--127 V/220 V/240 V
power consumption (U.S. and Canadian models)	240 W, 340 VA
power consumption (multi-voltage model)	620 W

FM Tuner Section

frequency range	87.5 MHz to 108 MHz
usable sensitivity mono	12.3 dBf, IHF (1.1 pV/76 o)
50 dB quieting sensitivity mono	16.8 dBf
50 dB quieting sensitivity stereo	38.6 dBf
signal-to-noise ratio mono	73 dB (at 65 dBf)
signal-to-noise ratio stereo	70 dB (at 85 dBf)
alternate channel selectivity	50 dB (400 kHz)
stereo separation	35 dB (1 kHz)
frequency response	30 Hz to 15 kHz +1 dB

AM Tuner Section

frequency range (9 kHz step)	531 kHz -- 1, 602 kHz
frequency range (10 kHz step)	530 kHz -- 1, 700 kHz
sensitivity (IHF, loop antenna)	350 pV/m
selectivity	20 dB

Weight and Dimensions

dimensions	420 (W) x 140.5 (H) x 349 (D) mm
dimensions in inches	16-9/16 (W) x 5-9/16 (H) x 13-3/4 (D) in
weight	8.3 kg (18 Ib 5 oz)
