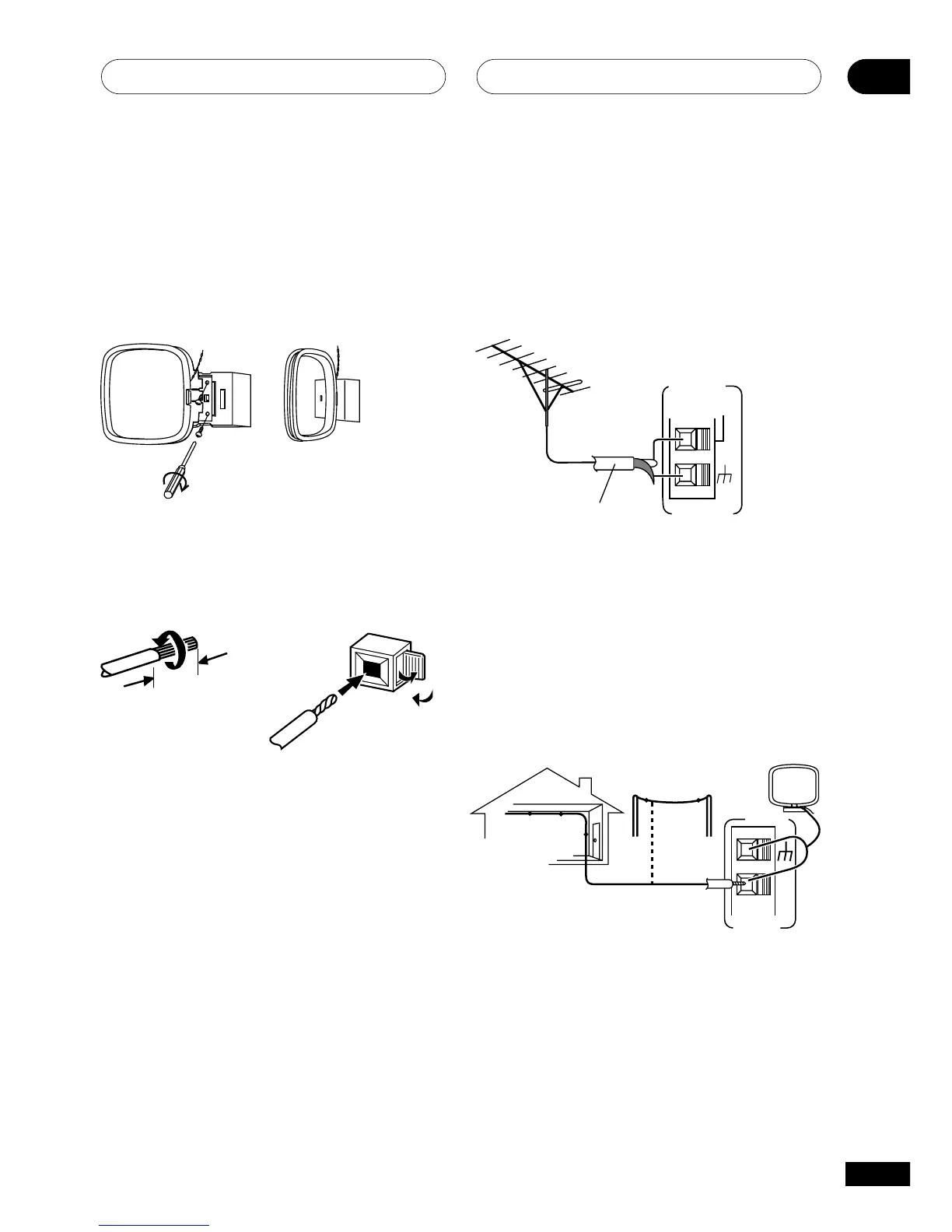

To improve FM reception
Connect an external FM antenna.
FM
UNBAL
75Ω
FM
ANTENNA
AM LOOP
ANTENNA
To improve AM reception
Connect a 15-18 feet length of vinyl-coated wire
to the AM antenna terminal without disconnect-
ing the supplied AM loop antenna.
For the best possible reception, suspend
horizontally outdoors.
Outdoor antenna
AM loop antenna
Assemble the antenna and connect to the
receiver. Attach to a wall, etc. (if desired) and
face in the direction that gives the best
reception.
Antenna snap connectors
Twist the exposed wire strands together and
insert into the hole, then snap the connector
shut.
75 Ω coaxial cable
3/8 in. (10mm)
Using external antennas
15-18 ft. (5–6m)
Indoor antenna
(Vinyl-coated wire)
