8.WIRING DIAGRAM
8. Wiring diagram

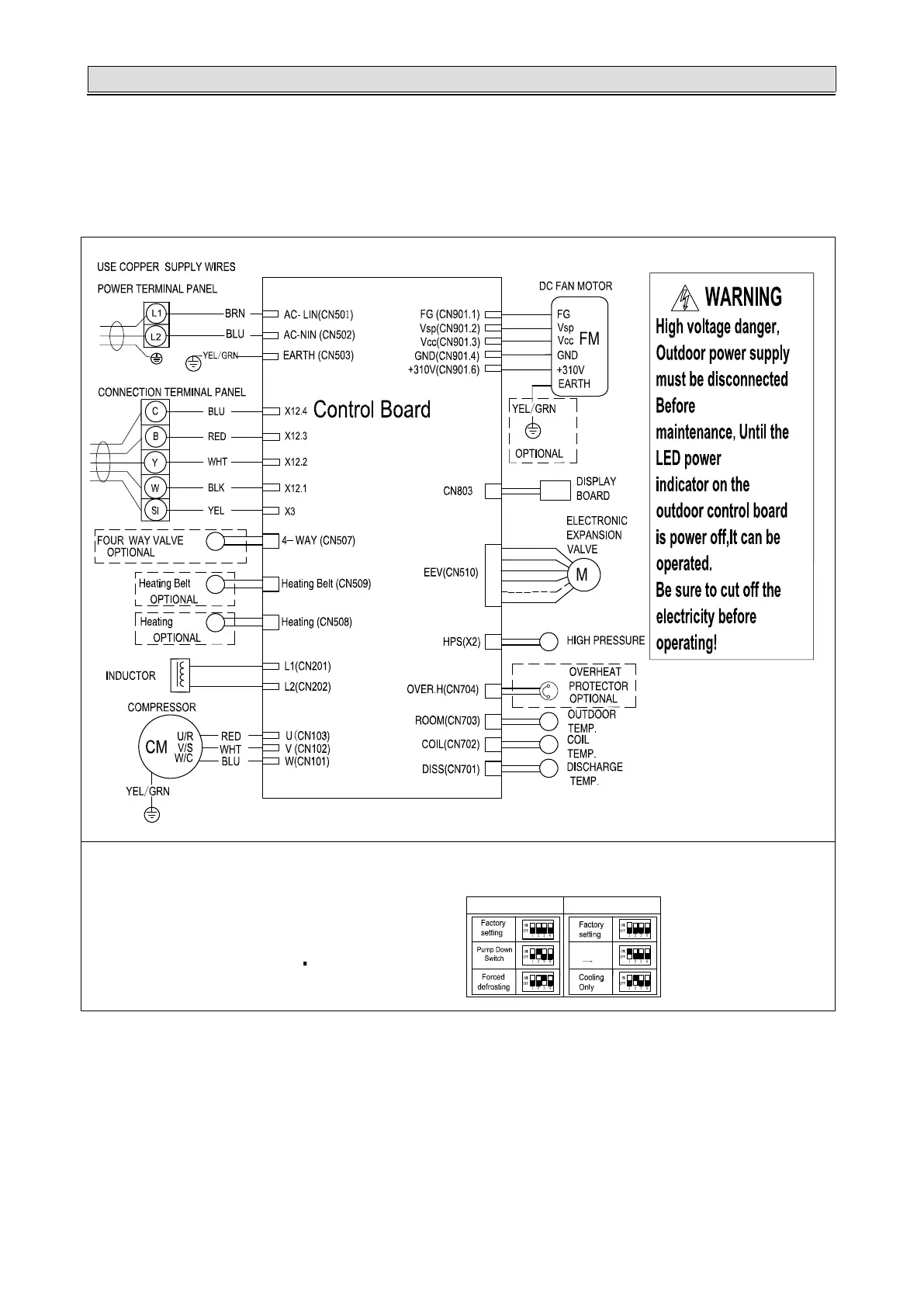

8.1 Electrical wiring diagram
Electric wiring diagram 2150423.D
24K/36K
S4 DIP switch setting
S5 DIP switch setting
DIP Switch Setting of Outdoor Unit
Turn on the power before setting the DIP
switch. Without turning on, the swithes
do not work and the content of the setting
are invalid. Mark of " " indicates the
position of DIP switches.
Capacity
Hi Low
To Next Page
