16.DISASSEMBLY AND ASSEMBLY FOR COMPRESSOR AND MOTOR

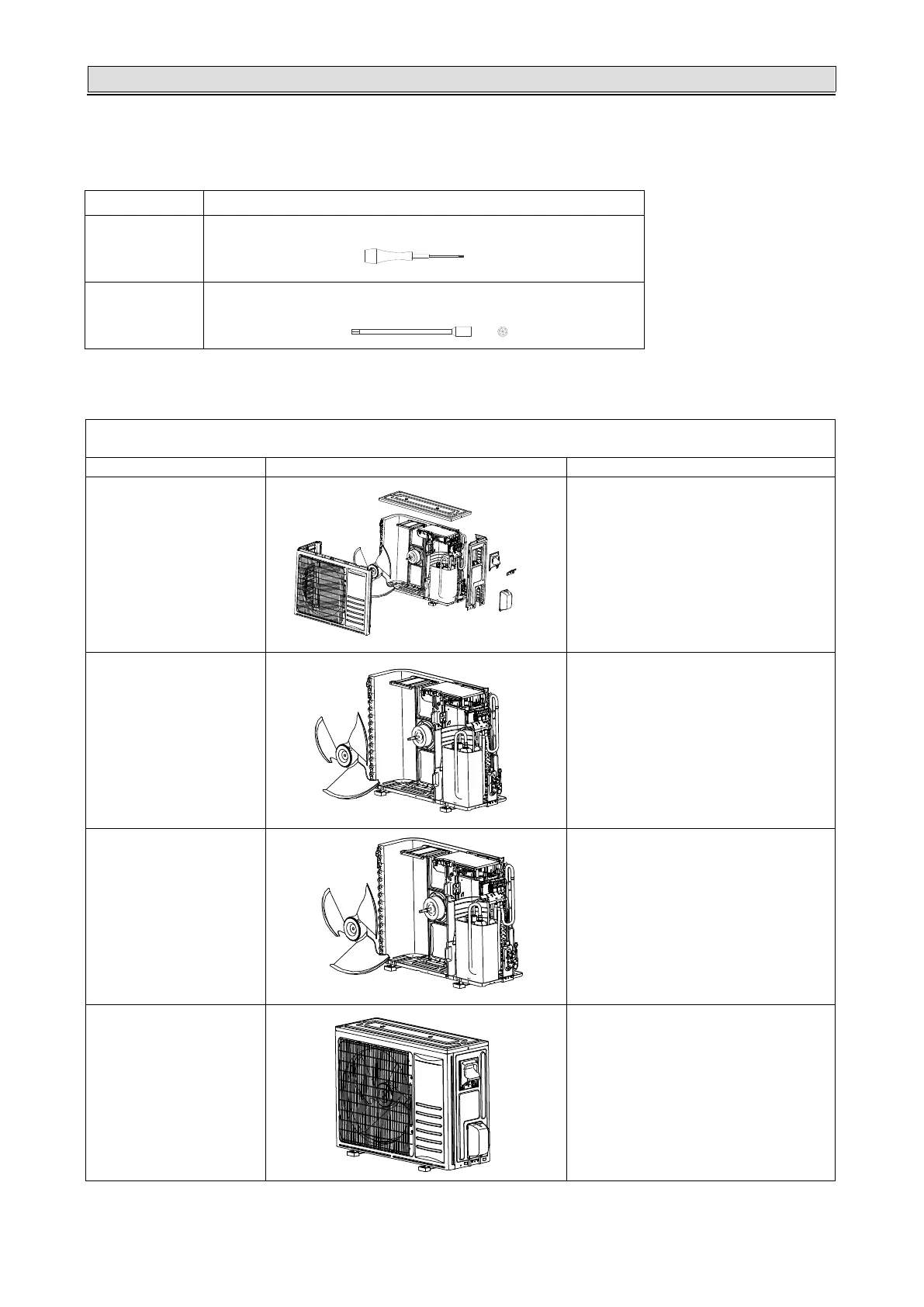

16. Disassembly and assembly for compressor and motor
The special tools for compressor & motor disassembly and assembly：
Tool
1
Hexagon Screwdriver
2
Hexagon Socket
Outdoor unit
24K
Important: Before disassembly and assembly, make sure that the power to the system
has been
disconnected and verified as voltage free.
Step Illustration Handling Instruction
1. Remove external casing
1.
Remove the top cover, handle and
valve cover;
2.
Remove the outer case and right side
plate.
2. Remove motor
1.
Remove the blade nut and then
remove the blade;
2. Remove the motor from motor
supporter.
3. Remove c
ompressor
1.
Reclaim the refrigerant from the
entire system;
2. Unsolder the 4-way valve piping assy
from compressor;
3.
Remove the compressor mounting
bolts;
4.
Carefully remove the compressor
from chassis.
4. Assemble unit
Assemble the unit in the reverse order
of disassembly.
64
