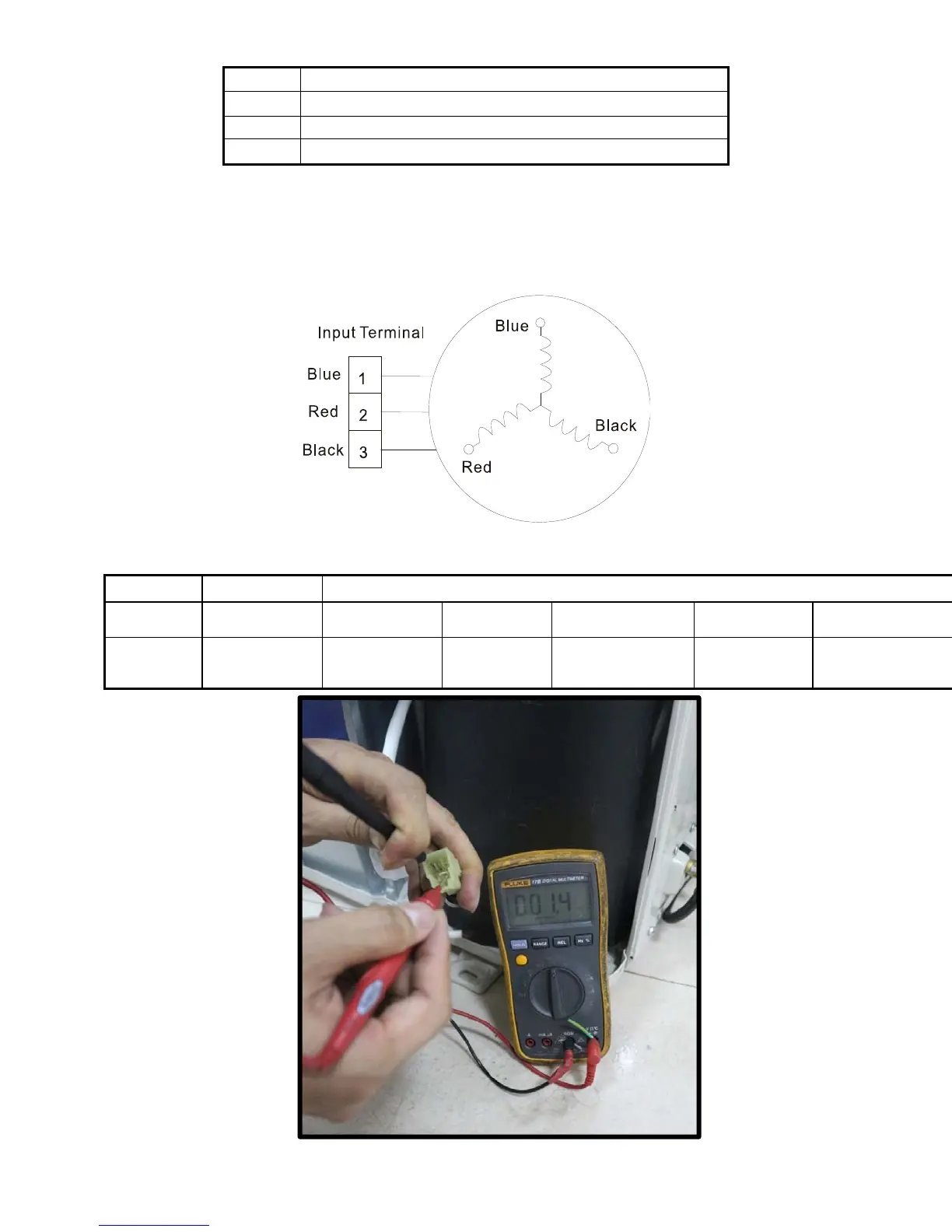

2. Compressor check

Measure the resistance value of each winding by using the tester.

Position

Resistance Value

ATM150D23UFZ ATF235D22UMT ATF250D22UMT

ATF310D43UMT ATQ360D1UMU ATQ420D1UMU

Blue - Red

1.72Ω 0.75Ω

0.75 Ω

0.65Ω 0.37 Ω 0.38Ω
