99

9. Disassembly Instructions

Note: This part is for reference, the photos may have slight difference with your machine.

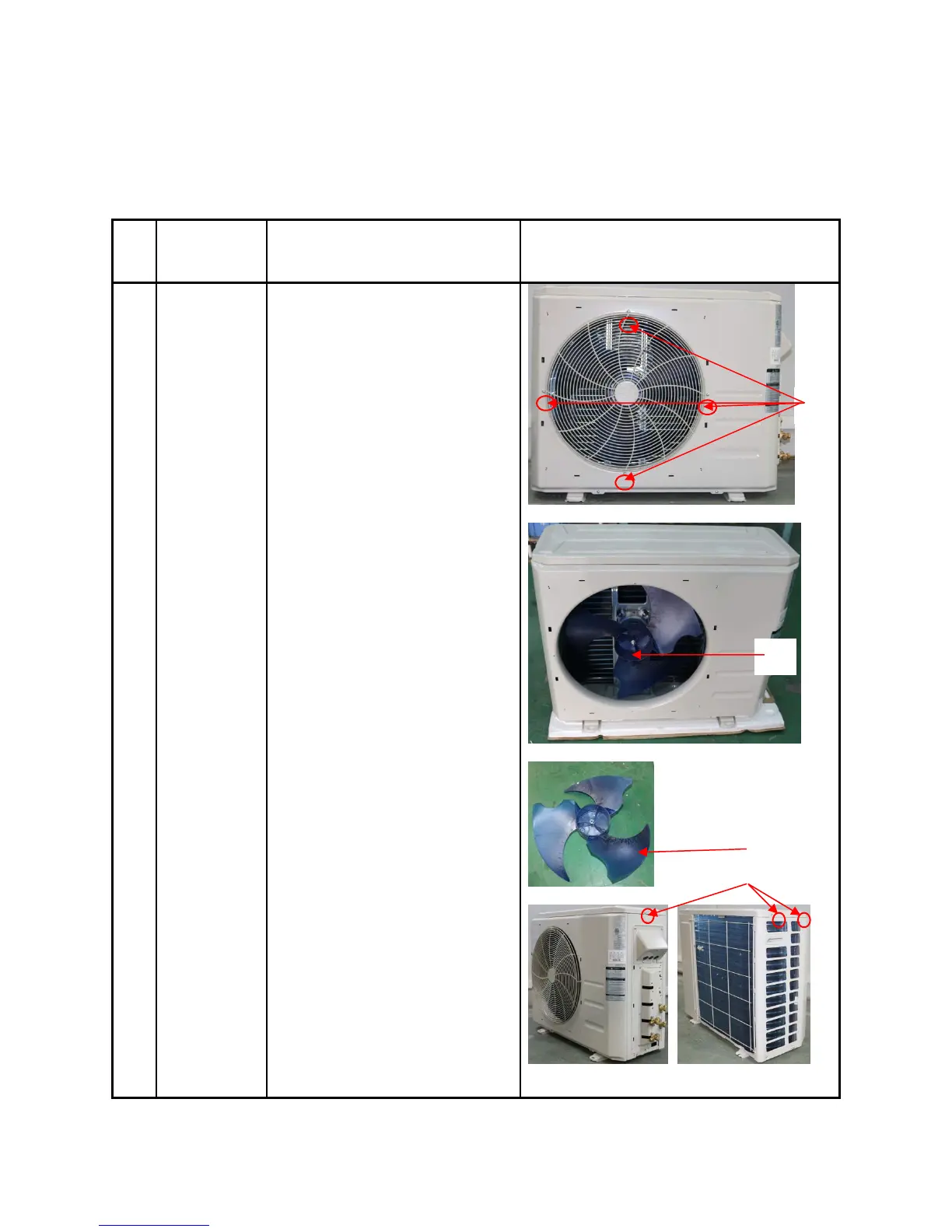

 DUAL (2 ZONE) OUTDOOR UNIT (WCA30 metal plate)

Part name Procedures Remarks

1 Fan

assembly

How to remove the fan

assembly.

1) Turn off the air conditioner

and turn off the power

breaker.

2) Remove the screws of air

outlet grille(4 screws)

3) Remove the hex nut fixing

the fan.

4) Remove the fan.

Remove the screws of top

cover, and remove the top

③

④

Screws of top

②
