46
FEATURES

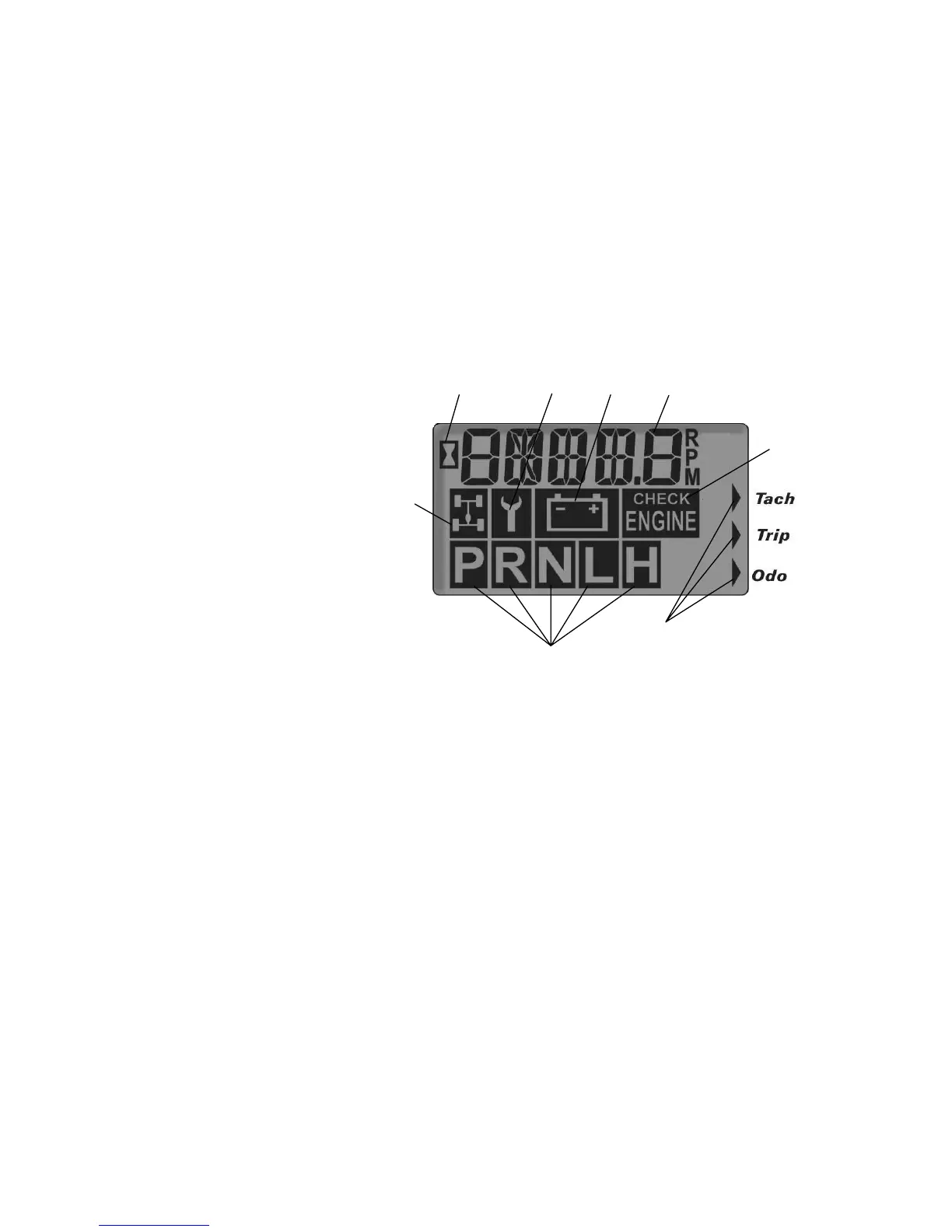

Instrument Cluster
Rider Information Center
The rider information center is located in the instrument cluster. All
segments will light up for 2.5 seconds at start-up.
NOTE: If the instrument cluster fails to illuminate, a battery
over-voltage may have occurred and the instrument cluster may have
shut off to protect the electrical system. If this occurs, take the ATV to
your Polaris dealer for proper diagnosis.
1. Gear Indicator - As the shift lever is moved, this indicates the
gear the transmission is in:
H = High Range
L = Low Range
N = Neutral
R = Reverse
P = Park (if equipped)
2. AWD Indicator - This
indicator illuminates
when the electrical
portion of the AWD
system is enabled.
3. Engine Hour Display Indicator
4. Service Interval/Diagnostic Mode Indicator
5. Low Battery and Over Voltage - This warning usually indicates
that the ATV is being operated at an RPM too low to keep the
battery charged. A low battery warning may also occur under normal
operation if the machine is at idle and high electrical load (lights,
cooling fan, accessories) is applied. Driving at a higher RPM or
connecting a battery charger will usually clear the warning.
6. Odometer/Tachometer/Tripmeter/ Hour Meter
7. Check Engine Warning Indicator - The word HOT will display
alphanumerically when the engine is overheating. Do not continue
to operate the ATV is this warning appears or serious engine
damage could result.
8. Mode Indicator
7
5
4
3
1
6
2
8
