ELECTRONIC FUEL INJECTION
4
P
RELIMINARY
V
ERS
I
ON

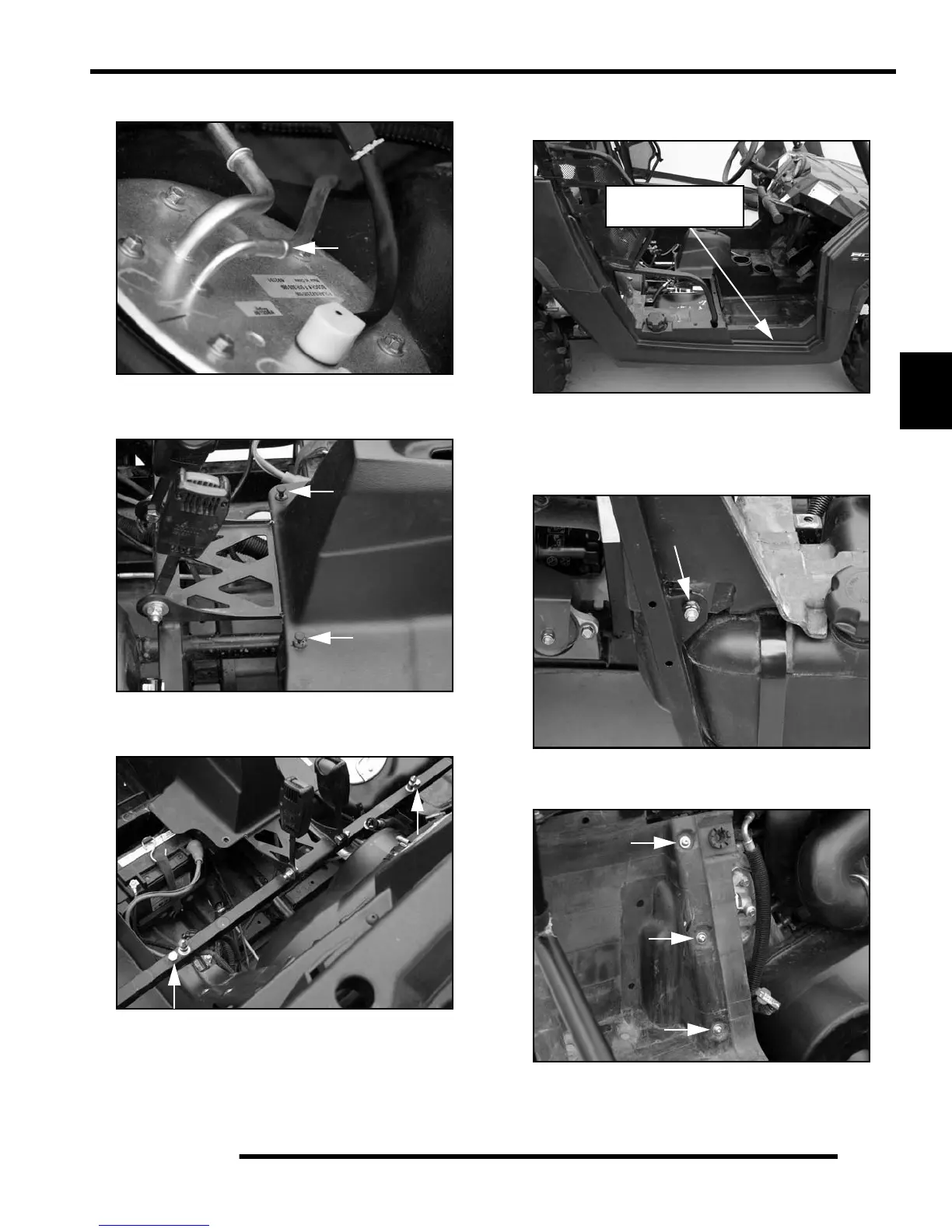

5. Remove the fuel tank vent hose.
6. Remove the (2) push rivets from the rear of the center
console.
7. Remove the (2) fasteners from the rear seat base and
remove the assembly from the vehicle.
8. Remove the (11) push rivets and (4) Torx screws retaining
the RH rocker panel and remove panel from the vehicle.
9. Remove the lower bolt retaining the seat belt mechanism
near the rear RH portion of the fuel tank. Once removed,
place the mechanism in the rear cargo box to keep it out of
the way.
10. Remove the (3) Torx fasteners from the rear RH fender well
and remove the fender well from the vehicle.
NOTE: Lift fender well up over the fuel tank filler
neck and out from the vehicle.
Remove
RH Rocker Panel
