8.6
TRANSMISSION
P
RELIMINARY
V
ERS
I
ON

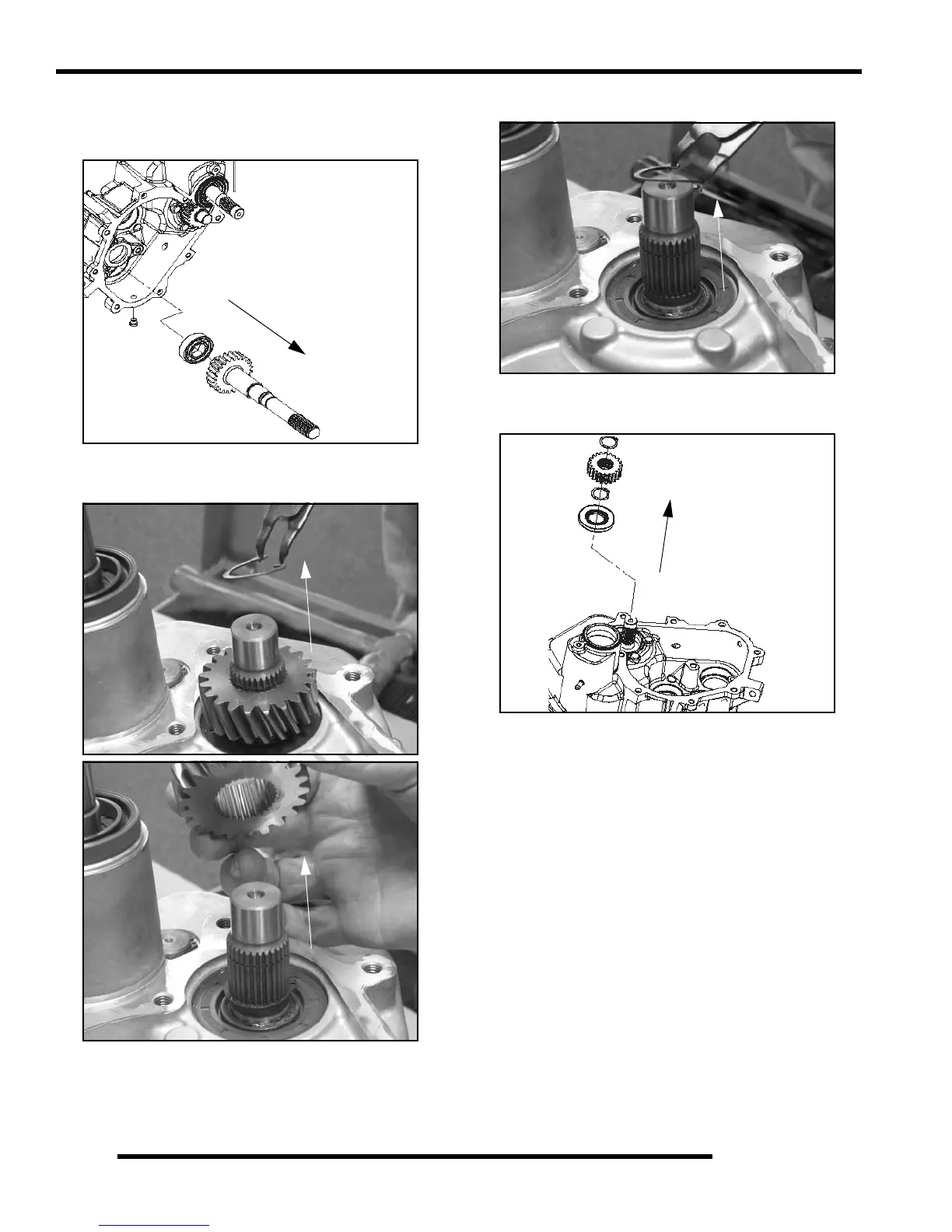

13. Remove the front output pinion shaft assembly. The shaft
can be disassembled as shown using a press and standard
bearing removal tools.
14. Remove the upper snap ring from the top side of the 21T
main pinion gear and remove the gear.
15. Remove the lower snap ring from under the gear.
16. Remove the intermediate shaft seal using a seal puller or
other suitable method.
