MAINTENANCE
Lights
Headlight Adjustment
The headlight may be adjusted for vertical aim using the following pro-
cedure.
1. Place the snowmobile on a level surface with the headlight approxi-
mately 25 feet (7.6 m) from a wall.
2. Measure the distance from the floor to the center of the headlight
and make a mark on the wall.
3. Start the engine and turn the headlight switch to high beam.
4. Observe the headlight aim. The most intense part of the headlight
beam should be aimed 2I (5.1 cm) below the mark placed on the
wall.
NOTE: Rider weight must be included on the seat.
5. Turn the adjustment nut (+), located inside the hood, just below the
headlamp opening. Turn the knob in or out as needed for proper
aim.

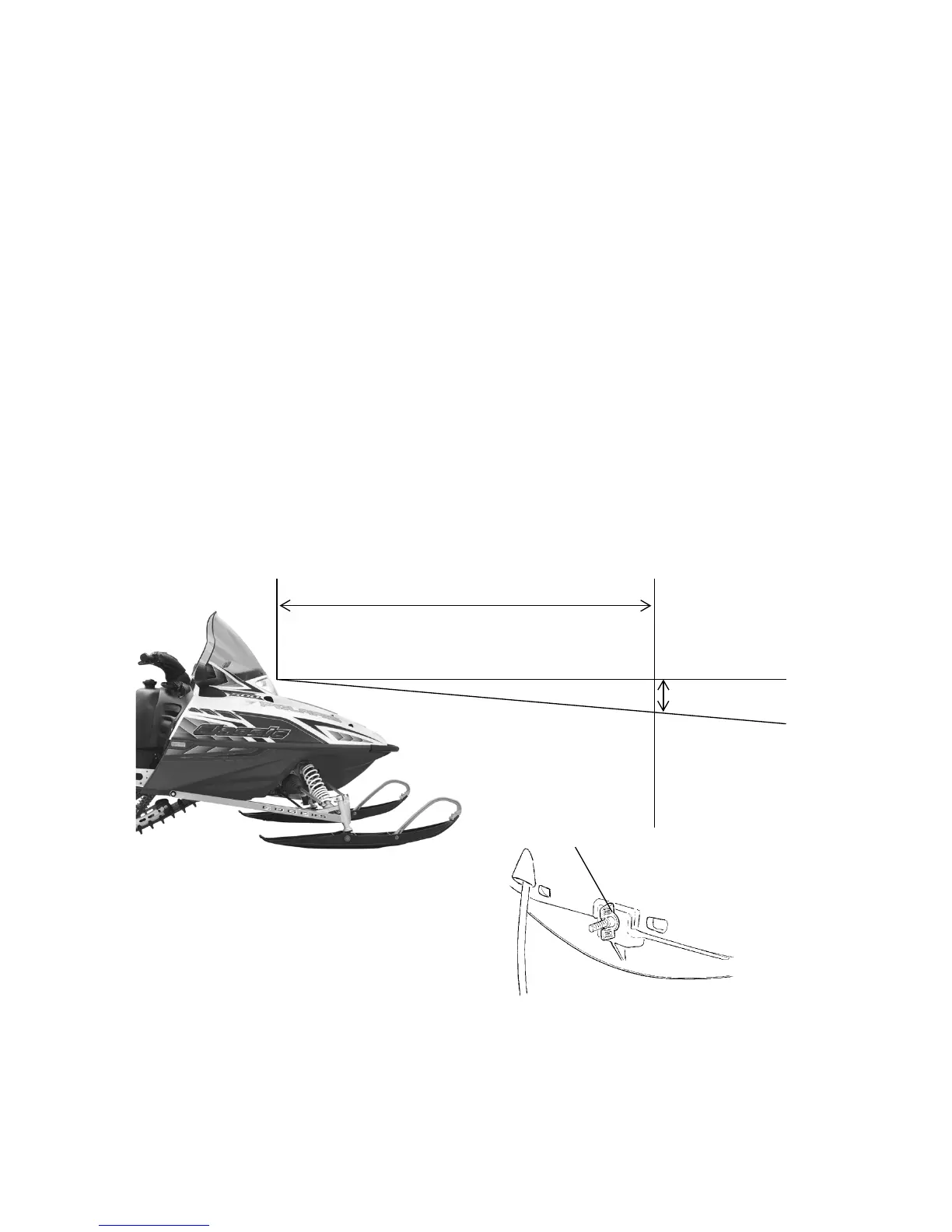

2I (5.1 cm)
Lamp Center Height
25 ft. (7.6 m)
+
