ADJUSTMENTS

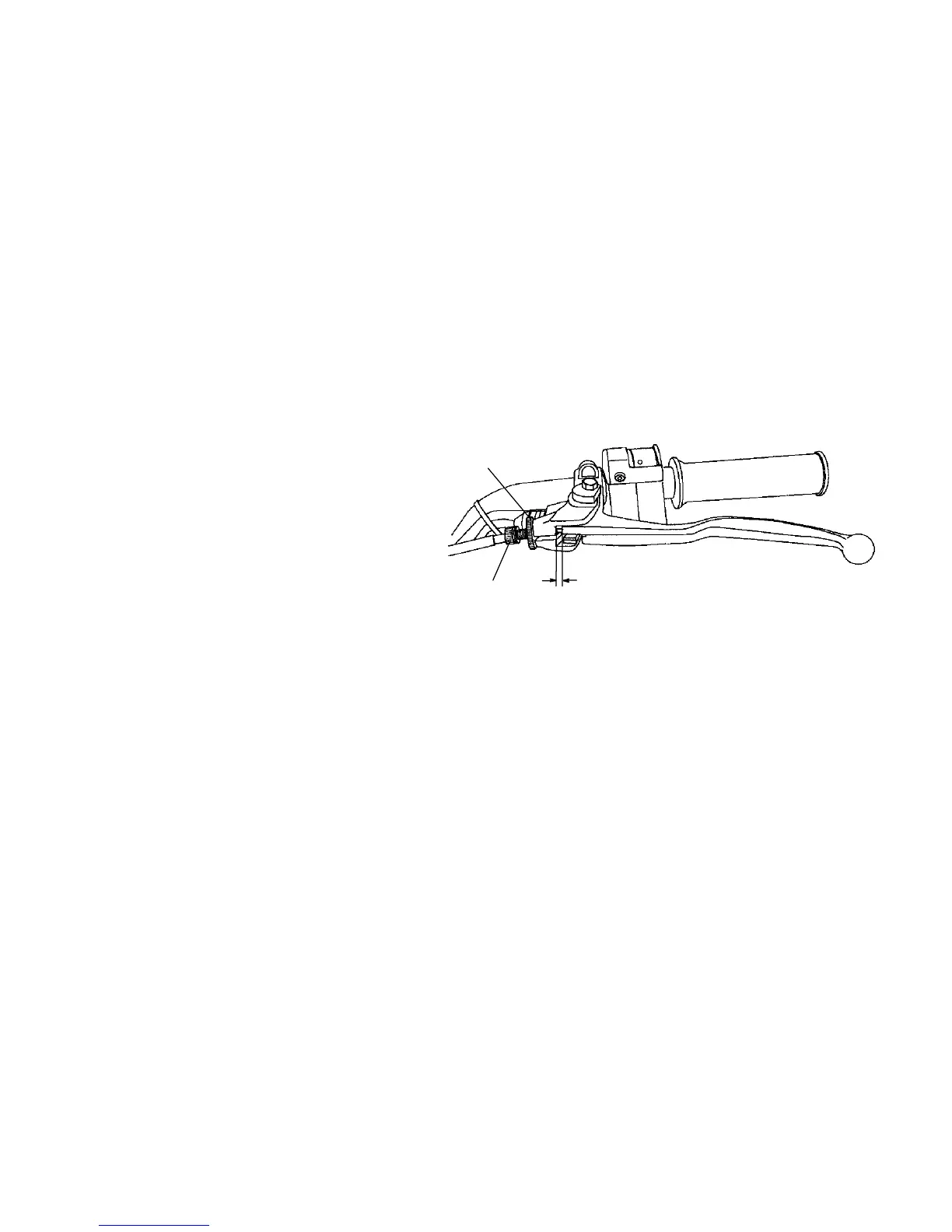

Clutch Lever Freeplay
1. Measure clutch lever freeplay between
the perch and the lever (A). This
distance should be 1/8″ -3/16″
(3.1 mm - 4.7 mm).
2. If adjustment is required, slide the
clutch perch pivot boot down the
clutch cable to access the clutch
adjustment screw (B) and lock ring (C).
3. Loosen the lock ring and turn the screw in (clockwise) to increase lever travel. Turn
the screw out (counterclockwise) to decrease lever travel. Tighten the lock ring.
4. Squeeze the lever fully and release. Slightly squeeze the lever again until a slight
resistance is felt. Measure the freeplay again. If necessary, repeat the adjustment
procedure until proper freeplay is attained.
5. Replace the clutch perch pivot boot over the screw and lock ring.
C
B
A
