ADJUSTMENTS
20
Rear Track Angle of Attack
To obtain the correct angle of attack on rear track systems, use the
following procedure. Refer to the track kit installation instructions for
more information as needed. Perform steps 1-3 for both rear track
systems.

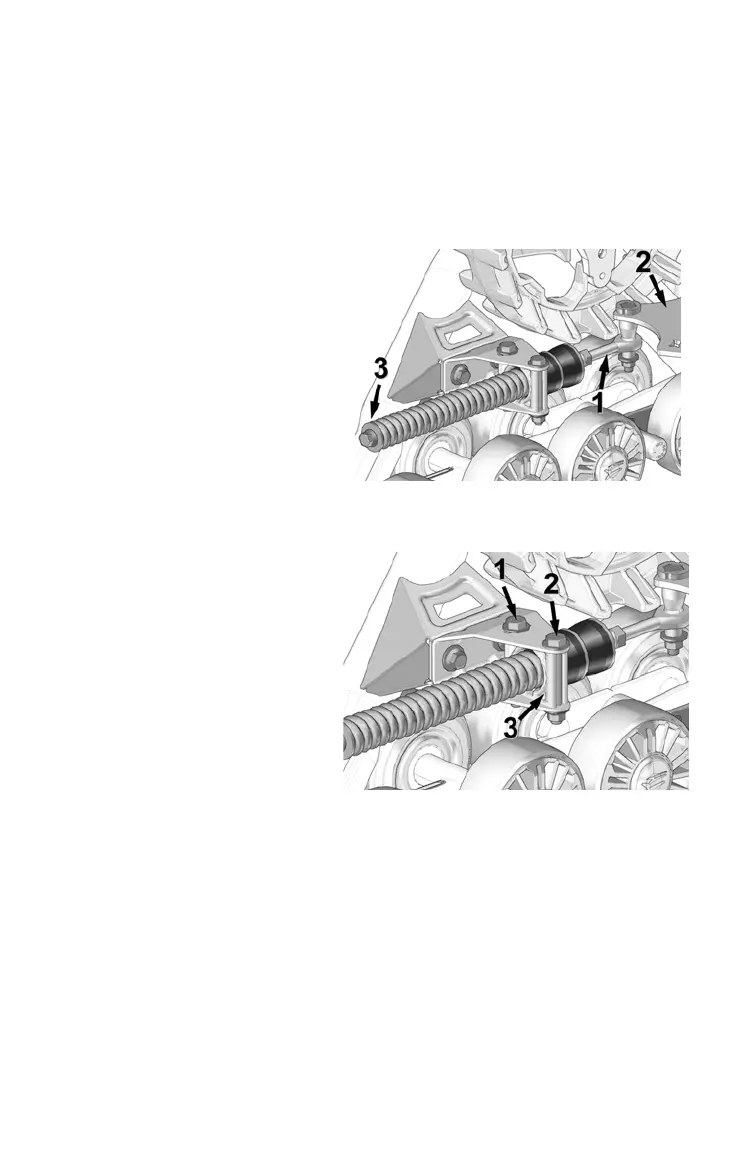

1. Verify that the stabilizing
arm (1) is attached to the
rear anchor bracket (2).
2. Verify that the spring
assembly bolt (3) is
tightened to specification.
Torque: 29.5 ft. lbs. (40 Nm)
3. Verify that stabilizing arm
components are
installed in
the correct order. Refer
to the track kit installation
instructions for more
information as needed.
4. Loosen the anti-rotation
bracket bolts (1) and (2) to
allow the anti-rotation
retainer (3) to rotate on its
axis.
