SERVICE KITS
42
SERVICE KITS
Exploded Views
Check the torque of critical bolts as identified in this section of the user
manual. Tighten any loose bolts to specification using a high strength
threadlocker such as Loctite® 263. Do not over-tighten.

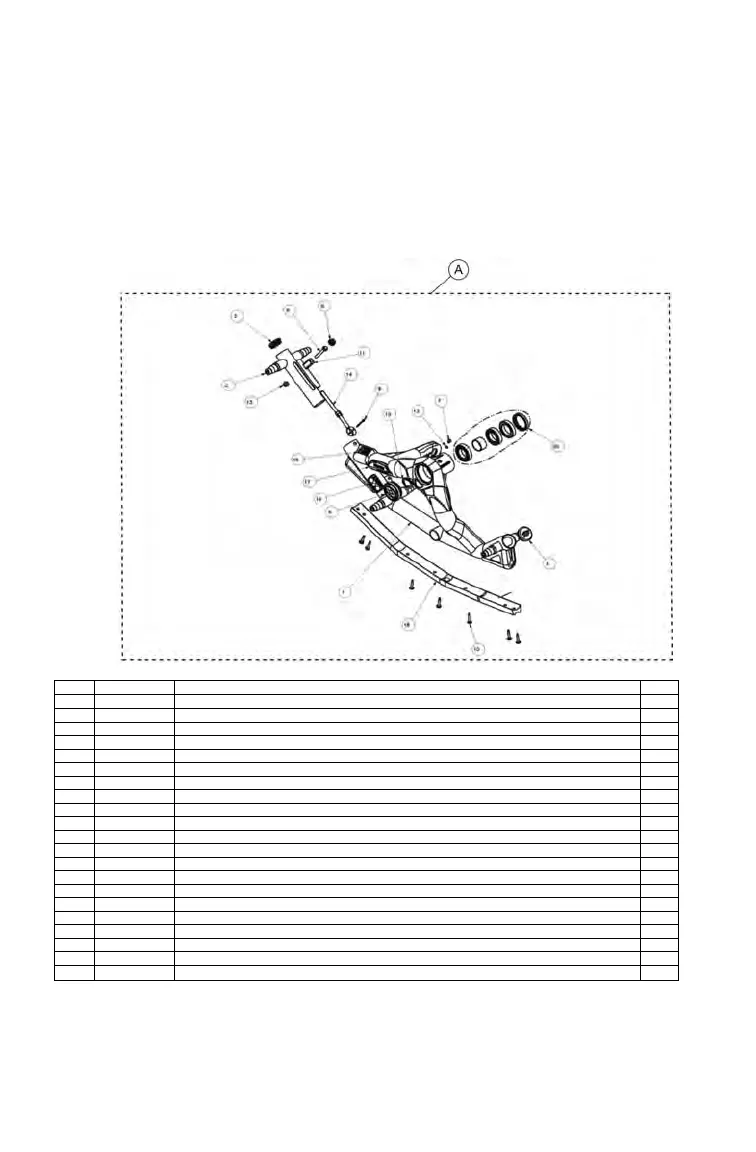

Front Left Frame Kit / Ensemble châssis avant gauche
ITEM # PART #
DESCRIPTION
QTY
A
TBD K-FRAME, CMPLST, FL, UTV
1
1--
LH FRONT FRAME / CADRE AVANT GAUCHE -- UTV
1
2--
TENSIONNER - TENSIONNEUR -- UTV
1
3--
2 LIPS CAP, 1-3/4" O.D. TUBE / BOUCHON 2 LÈVRES, TUBE DIA EXT 1-3/4 PO
1
4--
2 LIPS CAP, 2" O.D. TUBE / BOUCHON 2 LÈVRES, TUBE DIA EXT 2 PO
1
5--
CAP NUT / CAPUCHON DE BOULON
1
6--
HUB CAP POLARIS ASSY / CAP DE MOYEU POLARIS
1
7--
HSBS, M6-1X10, 10.9, ZP
1
8--
HFCS, M8-1.25X70, 10.9, ZP, IFI536
1
9--
CP, 1/8, 1-3/4, ZP
1
10 --
SDSQWS, #12-24X1.5, ZP
7
11 --
TENSIONNER BUSHING / COUSSINET, TENSIONNEUR
1
12
--
W, 9.9X6X0.9, AL
1
13
--
FNN, M8-1.25, 8, ZP, DIN6926
1
14 --
TENSIONNER ROD - HEX NUT ASS'Y / ENS. TIGE TENSIONNEUR - ÉCROU HEX
1
15 --
STICKER - ALIGNMENT / AUTOCOLLANT - ALIGNEMENT
1
16 --
STICKER - WARNING / AUTOCOLLANT - AVERTISSEMENT
1
17 --
STICKER / AUTOCOLLANT -- POLARIS UTV
1
18 --
TRACK GUIDE FRONT / GUIDE CHENILLE AVANT -- UTV
1
19
--
ERR, 35, 2.4, ZP, SHR-137
1
20
2205871 K-BEARING, CMPLST, UTV MY15
1
To Next Page
