ADJUSTMENTS
22
Front Track System Alignment
Inspect steering system components for damage before performing the
following front track system alignment procedures. Damaged steering
components can adversely affect vehicle operation and prevent proper
adjustments to track system alignment.
Alignment Inspection
1. Operate the vehicle in a
straightahead direction for
approximately 10 ft. (3 m). Stop the
vehicle on a level surface.
2. Stop the engine. Place the
transmission in park (if equipped) or
in forward gear. Engage the park
brake (if equipped).

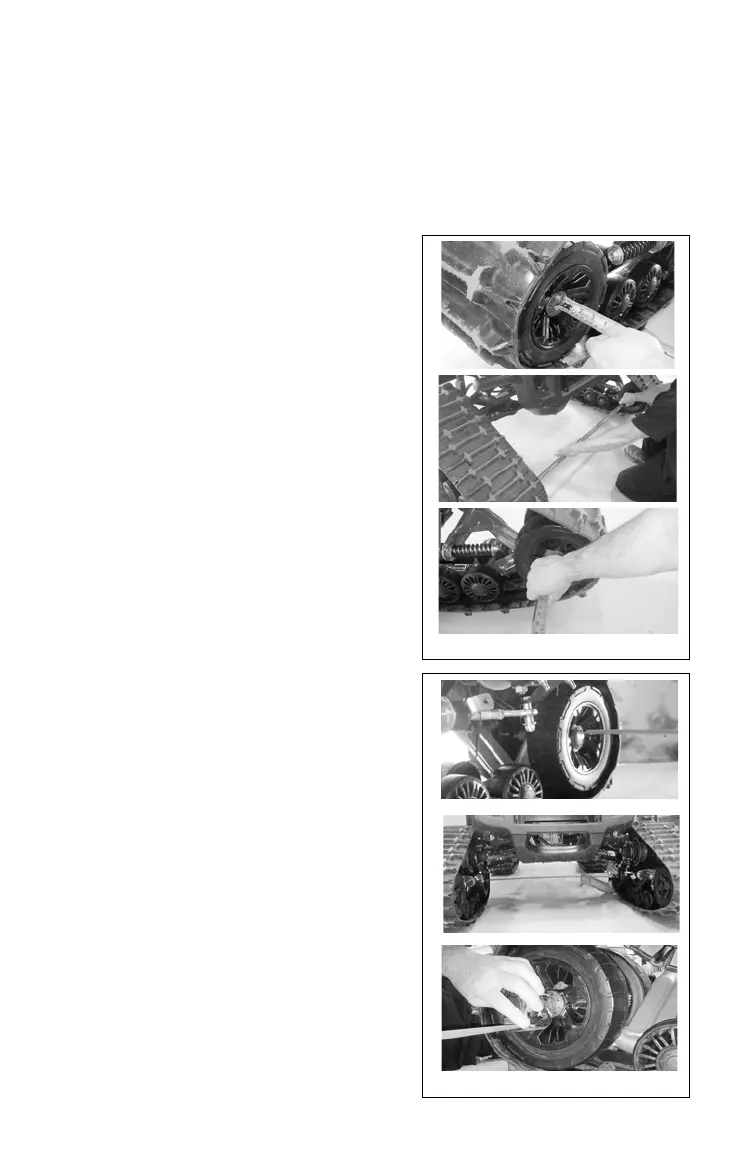

3. Perform the following measurements
on the front track systems:
• Measure the distance between the
two front inner 241mm wheels (A).
Measurement A
• Measure the distance between the
two rear inner 241 mm wheels (B).
Measurement B
