20.When finished, reinstall the oil fill cap, oil dipstick and lock the lever.
21.Dispose of used oil and filter properly.
GEARCASES
GEARCASE SPECIFICATION CHART
GEARCASE LUBRICANT CAPACITY
FILL PLUG
TORQUE
DRAIN PLUG/
LEVEL
CHECK PLUG
TORQUE
Transmission
(Main
Gearcase)
AGL Gearcase
Lubricant &
Transmission
Fluid
41 oz.
(1200 ml)
10-14 ft. lbs.
(14-19 Nm)
10-14 ft. lbs.
(14-19 Nm)
Demand Drive
Unit (Front
Gearcase)
Demand Drive
Fluid
9.3 oz.
(275 ml)
8-10 ft. lbs.
(11-13.6 Nm)
11 ft. lbs.
(15 Nm)
TRANSMISSION (MAIN GEARCASE)
TRANSMISSION OIL CHECK
Always check and change the transmission oil at the intervals outlined in the
Periodic Maintenance Chart. Maintain the oil level even with the bottom thread
of the fill plug hole.

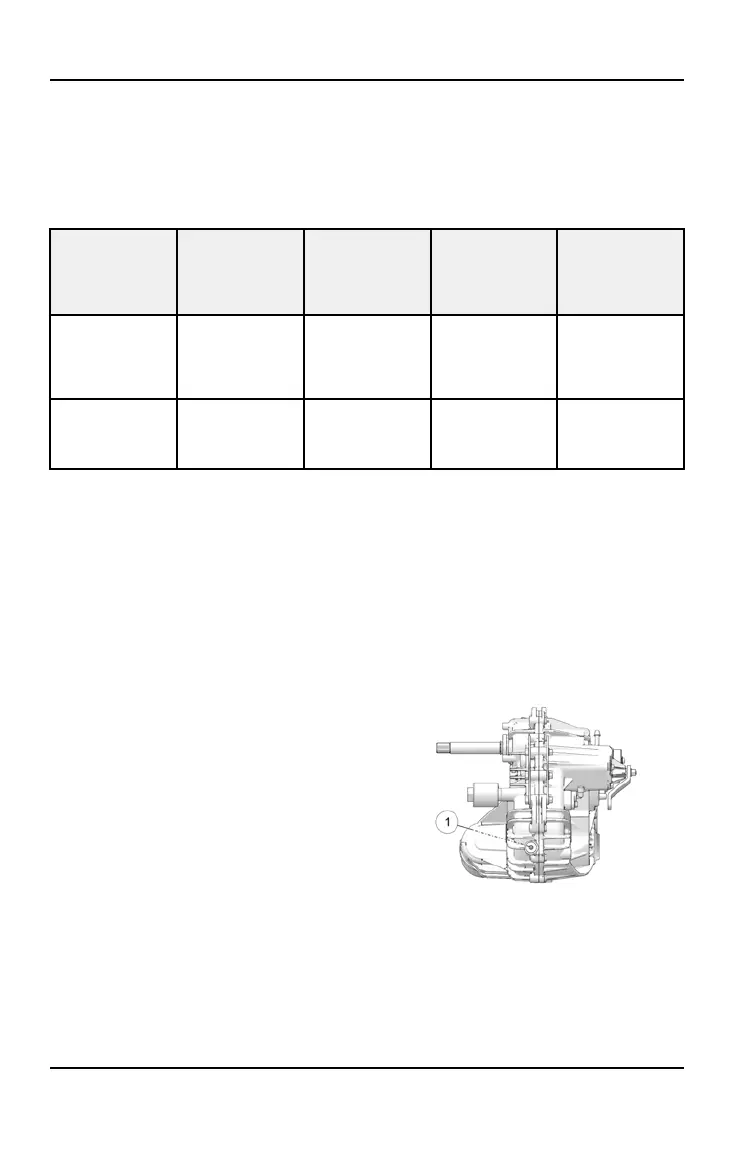

The fill plug is located on the rear of the gearcase. Maintain the fluid level at the
bottom of the fill plug hole.
To check the transmission fluid, do the following:
1. Position the vehicle on a level
surface.
2. Remove the fill plug
q
.
3. Check the fluid level.
4. Add the recommended fluid to the
bottom of the fill plug hole. Do not
overfill.
5. Reinstall the fill plug. Torque to
specification.
108
MAINTENANCE
