TRANSMISSION
TRANSMISSION OIL CHANGE
NOTE
Maximum transmission fluid volume cannot exceed 25oz. (750ml). Fill / check
method is not fill to spill. Follow Fluid Change Procedure to verify transmission
is filled with fluid. Do not overfill.
Always change the fluid at the intervals outlined in the Periodic Maintenance
Interval Chart. Polaris recommends the use of AGL Gearcase Lubricant and
Transmission Fluid for this vehicle.

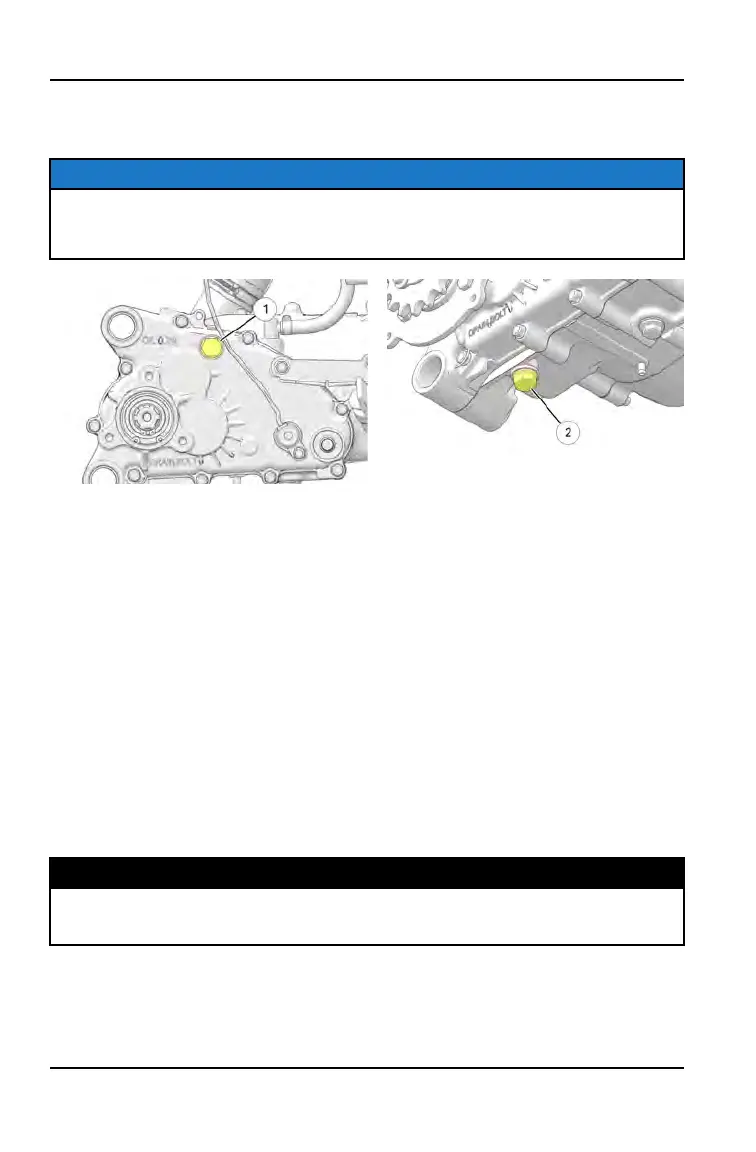

The fill plug
q
is located on the side of the transmission gearcase. Access the
fill plug on the right-hand side of the gearcase. The drain plug
w
is located on
the bottom of the transmission gearcase. Access the drain plug from the bottom
of the vehicle.
To change the transmission fluid, do the following:
1. Remove the fill plug.
2. Place a drain pan under the transmission drain plug.
3. Remove drain plug
w
and allow lubricant to drain completely.
4. Clean the drain plug magnetic surface.
5. Reinstall the drain plug and torque to specification.
TORQUE
Transmission Fill / Drain Plug:
14 ft-lbs (19 N⋅m)
