26
FEATURES AND CONTROLS

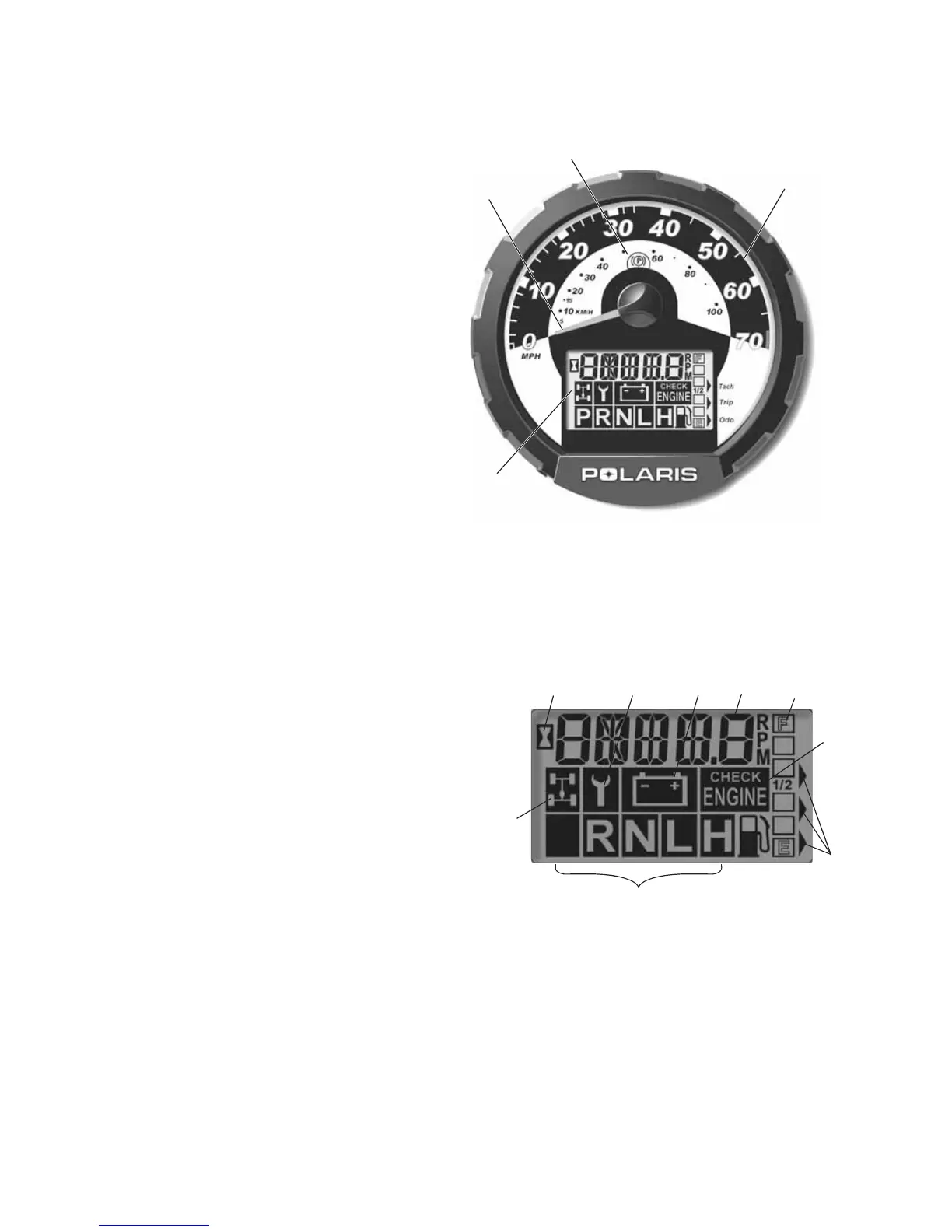

Instrument Cluster
Your vehicle is equipped with an
instrument cluster that senses vehi-
cle speed from the transmission. In
addition to showing vehicle speed,
the speedometer needle flashes
when a warning condition exists.
NOTICE: High water pressure may
damage components. Wash
the vehicle by hand or with a
garden hose using mild soap.
Certain products, including
insect repellents and
chemicals, will damage the
instrument cluster lens and
other plastic surfaces. Do not
use alcohol to clean the
instrument cluster. Do not
allow insect sprays to contact
the lens. Immediately clean
off any fuel that splashes on
the instrument cluster.
Rider Information Center
The rider information center is located in the instrument cluster. All segments will briefly
light up and “HOT” may display at start-up. If the instrument cluster fails to illuminate, a
battery over-voltage may have occurred and the instrument cluster may have shut off to pro-
tect the electronic speedometer. If this occurs, take the vehicle to your Polaris dealer for
proper diagnosis.
1. Gear Indicator - This indicator displays
gear shifter position.
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
2. AWD Indicator - This indicator illumi-
nates when the AWD switch is on AWD.
3. Engine Hour Display Indicator
