MAINTENANCE
Lights
Headlight Lamp Replacement
1. Open the hood.
CAUTION! Hot components can cause burns to skin. Allow lamps to cool before servicing.
2. Unplug the headlamp from the wiring harness. Be sure to pull on the connector, not on
the wiring.
3. Turn the lamp counterclockwise to remove it.
4. Install the new lamp.
Tip: Make sure the tab on the lamp locates properly in the housing.
5. Reinstall the harness assembly into the headlight assembly.
Headlight Beam Adjustment

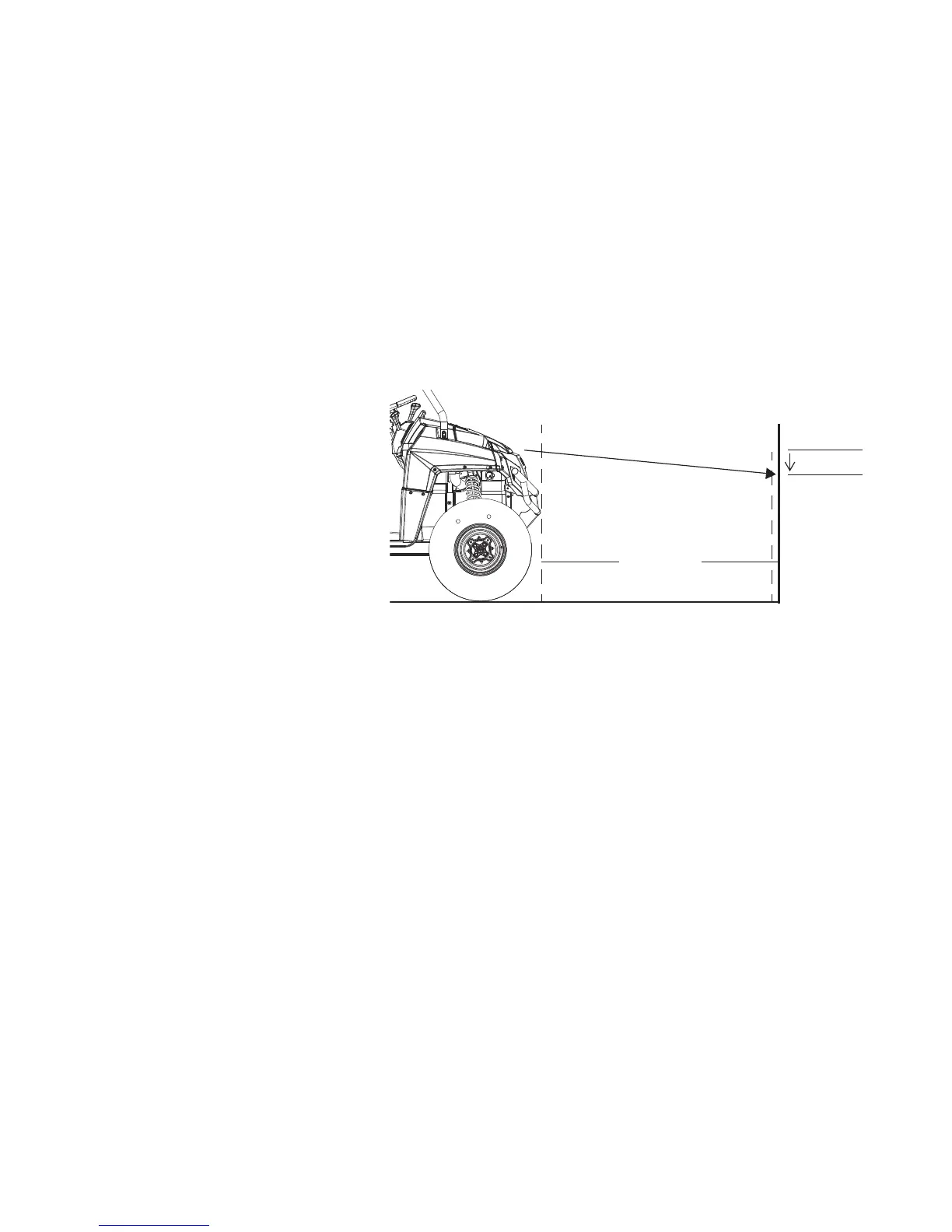

1. Place the vehicle on a level
surface with the headlight
approximately 25 ft. (7.6 m)
from a wall.
2. Place the transmission in
gear. Engage the park brake.
3. Measure the distance from
the floor to the center of the
headlight and make a mark
on the wall at the same
height.
4. Apply the brakes. Start the engine. Turn on the headlights.
5. Observe the headlight aim. The most intense part of the headlight beam should be aimed
8" (20 cm) below the mark placed on the wall. Include the weight of a rider on the seat
while performing this step.
6. If a headlight needs adjustment, locate the adjustment screw at the back of the headlight.
7. Loosen the screw, adjust the headlight, and tighten the screw.
8. Repeat steps 5-7 until the lamp is properly adjusted.
