FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
The rider information center is located in the instrument cluster. All seg-
ments will light up for 2.5 seconds at start-up. If the instrument cluster
fails to illuminate, a battery over-voltage may have occurred and the
instrument cluster may have shut off to protect the electronic speedome-
ter. If this occurs, take the vehicle to your Polaris dealer for proper diag-
nosis.

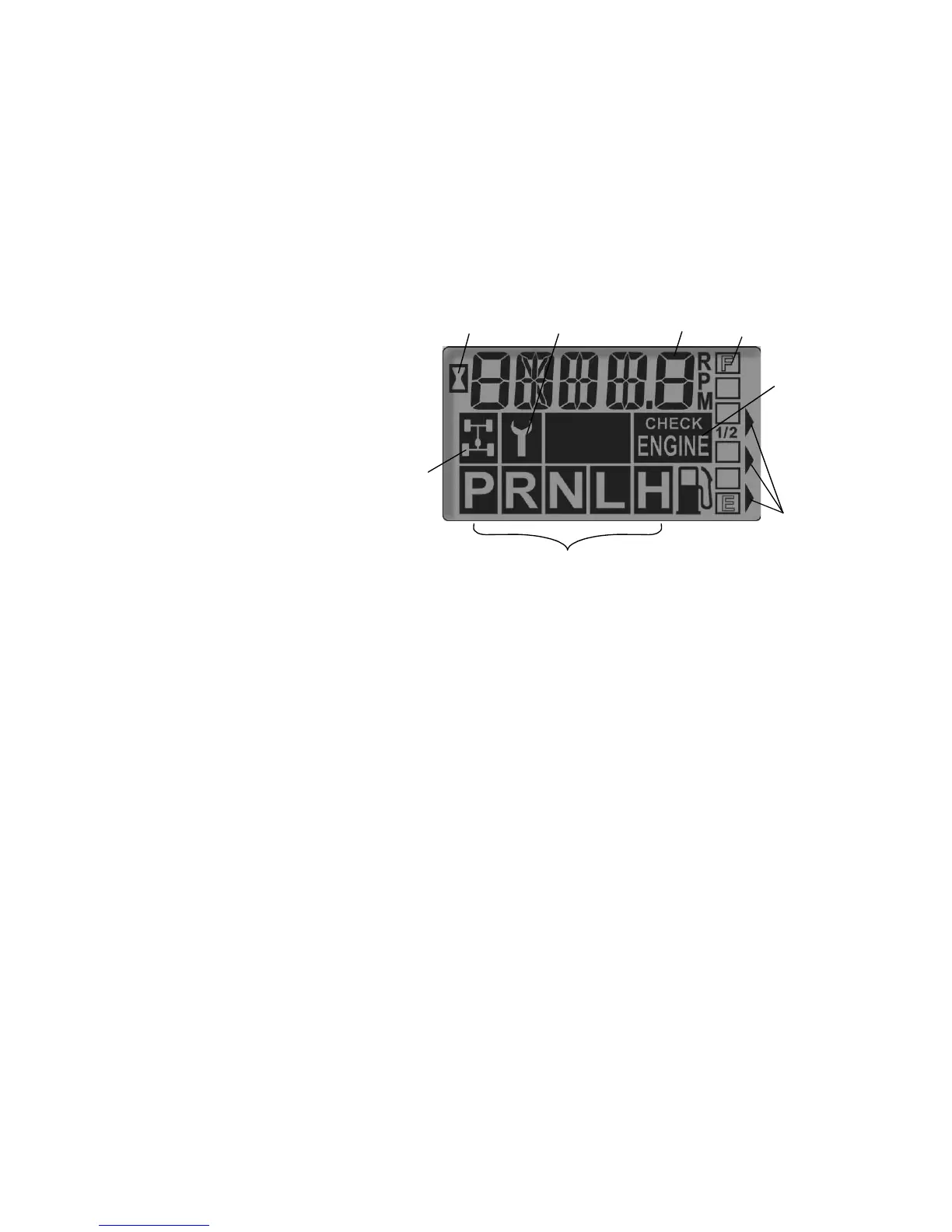

1. Gear Indicator - This
indicator displays gear
shifter position:
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
2. AWD Indicator - This
indicator illuminates
when the AWD switch
is in the AWD position.
3. Engine Hour Display Indicator
4. Service Interval/Diagnostic Mode Indicator
5. Odometer/Tachometer/Tripmeter/ Hour Meter
6. Fuel Gauge - The segments of the fuel gauge show the level of fuel
in the fuel tank. When the last segment clears, a low fuel warning is
activated. All segments will flash, FUEL will display in the LCD,
and the speedometer needle will blink. Refuel immediately.
7. Check Engine Warning Indicator - The word HOT displays if the
engine overheats. Do not operate the vehicle if this warning
appears. Serious engine damage could result.
8. Mode Indicator
