FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
The rider information center is located in the instrument cluster. All
segments will light up for 2.5 seconds at start-up.
NOTE: If the instrument cluster fails to illuminate, a battery
over-voltage may have occurred and the instrument cluster
may have shut off to protect the electronic speedometer. If
this occurs, take the ATV to your Polaris dealer for proper
diagnosis.

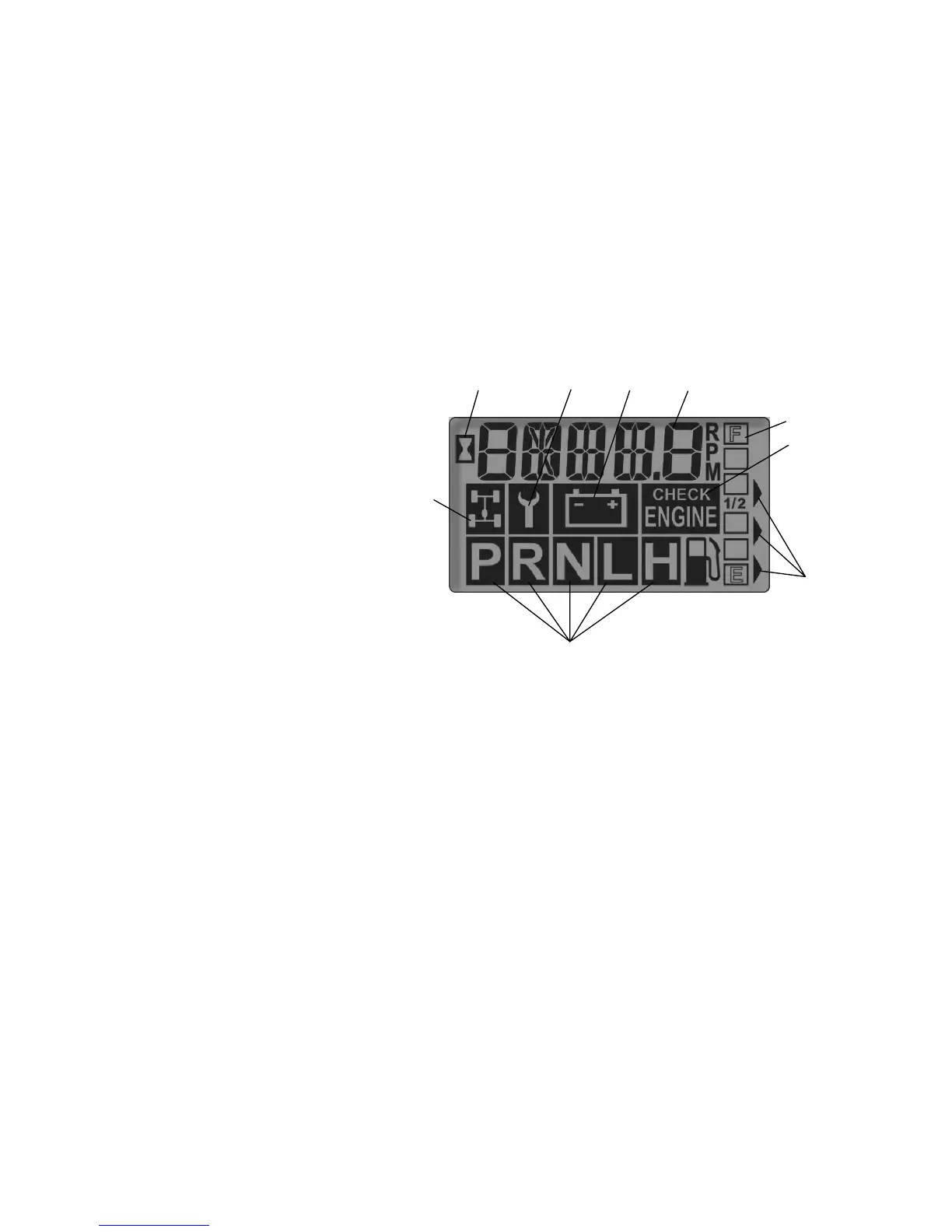

1. Gear Indicator - As the shift lever is moved, this indicates the
gear the transmission is in:
H = High Range
L = Low Range
N = Neutral
R = Reverse
P=Park
2. AWD Indicator - This
indicator illuminates
when the electrical
portion of the AWD
system is enabled.
3. Engine Hour Display Indicator
4. Service Interval/Diagnostic Mode In dicator
5. Low Battery and Over Voltage - This warning usually indicates
that the ATV is operating at an RPM too low to keep the battery
charged. A low batte ry warn ing ma y also occ ur under norma l
oper ation if the machine is at idle and high elec tric al load (lights,
cooling fan, accessories) is applied. Driving at a higher RPM or
connecting a battery charger will usually clear the warning.
6. Odometer/Tachometer/Tripmeter/ Hour Meter
7. Fuel Gauge - The segments of t he fuel gauge show the level of
fuel in the fuel tank. When the last segment clears, a low fuel
warning is activated. All segments will flash, FUEL will display
in the LCD, and the speedometer needle will blink. Refuel
immediately.
8. Check Engine Warning Indicator - This indicator serves two
purposes. The word HOT displays if the engine overheats. It also
appears if an EFI-related fault occurs. Do not operate the ATV if
this warning appears. Serious engine damage could result.
9. Mode Indicator
