Revolving Steps

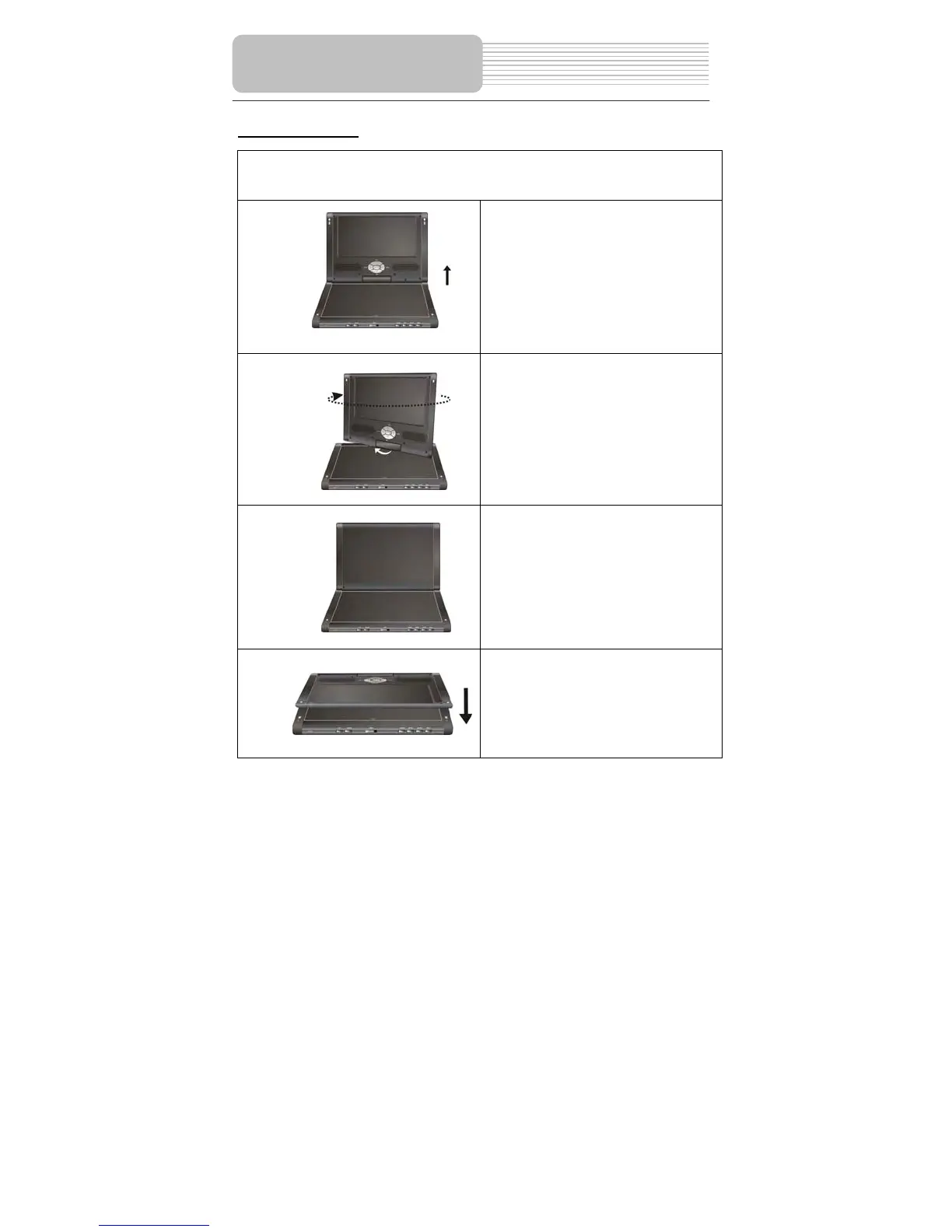

The revolving LCD screen is one of the outstanding features about this product. We’d
like to suggest you to take the following steps for proper operation.
Pos. A
1. Open the screen cover to position
(A) as shown in left figure at which
the screen is vertical to the operation
panel.
Pos. B
2. Revolving the screen horizontally
about it’s axis in the clockwise only.
The maximum revolving degree is
180 (position C). If you want to return
to initial position (A), please revolve
screen counter clockwise until it
clicks.
Pos. C
3. You can rotate the screen vertically
from position C to the operation panel
as indicated in left fig.
Pos. D
4. The final rotating position (position D)
at which the screen facing upward
and back to operation panel.
