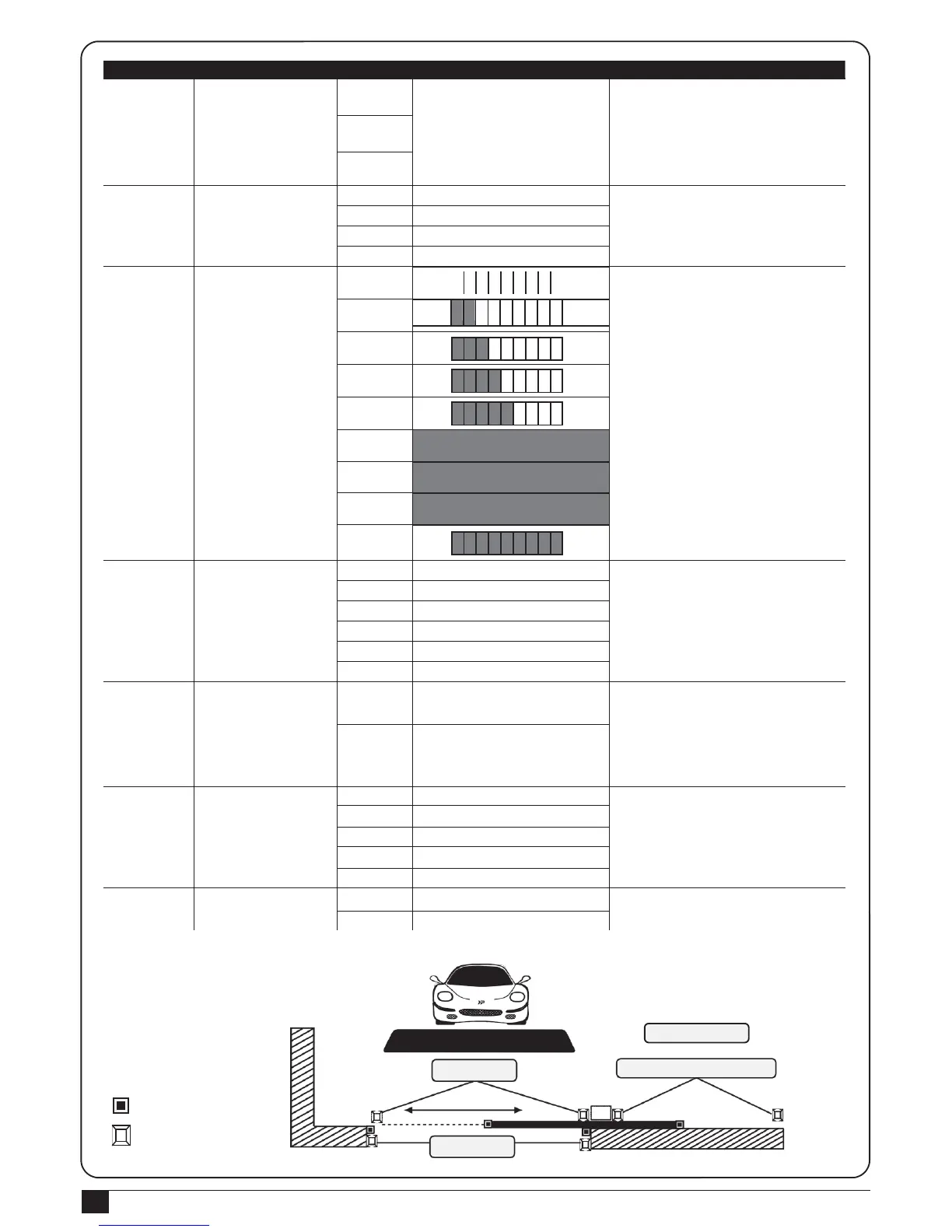

INSTRUCTIONS PL600/PL1000
LED Display Definition Function Value Description
F3
The reactions of the
photocells/ safety
edge/ loop detector
when they detecting
obstacles
F3-1
Please the function setting
after F8
1. Please the function setting after F
2. The factory setting is “F3-1”.
F3-2
F3-3
F4
Motor Speed
F4-1
Slow
1. The function can adjust the
running speed of motor.
2. The factory setting is "F4-4".
F4-2
Medium
F4-3
Fast
F4-4
Very Fast
F5
Motor Force
F5-1
Light Heavy
1. The function can adjust the
running force of motor to be
compatible with the gate weight.
2. The factory setting is "F5-4".
3. The motor force value:
F5-1: 2A F5-6: 7A
F5-2: 3A F5-7: 8A
F5-3: 4A F5-8: 10A
F5-4: 5A F5-9: 13A
F5-5: 6A
F5-2
Light
Heavy
F5-3
Light Heavy
F5-4
Light Heavy
F5-5
Light Heavy
F5-6
Light Heavy
F5-7
Light Heavy
F5-8
Light Heavy
F5-9
Light Heavy
F6
Open Partially
F6-0
3 seconds
1. The function can adjust the time
of opening partially.
2. The factory setting is "F6-1".
F6-1
6 seconds
F6-2
9 seconds
F6-3
12 seconds
F6-4
15 seconds
F6-5
18 seconds
F7
Pre-flashing
F7-0
The flashing light blinks
when the gate starts to move.
1. The factory setting is "F7-0".
F7-1
The flashing light blinks 3
seconds before the gate
starts to move.
F8
Deceleration point
programming of total
travel distance
F8-0
75%
1. The factory setting is “F8-0”.
F8-1
80%
F8-2
85%
F8-3
90%
F8-4
95%
F9
Deceleration speed
F9-1
50% full speed
1. The factory setting is “F9-1”.
F9-2
25% full speed
8
●
The position of safety devices:
Loop Detector
Photocell 1
Photocell 1
or
Photocell 1 / Photocell 2
Safety Edge
Photocell
Photocell 2
