3.3 Preparation for Motor Installation
PL600/PL1000 is not applicable to a gate which is inefficient or unsafe, neither to solve the defects due to incorrect
installation nor poor maintenance.
Check the following items before going for installation:
1). Make sure the weight and dimensions of the gate conform to the operation range of PL600/PL1000. Don’t use
PL600/PL1000 if the gate specifications do not meet the requirements.
2). Make sure the gate structure conform to the criteria of automatic operation and force regulations.
3). Make sure there is no serious friction existing in the opening or closing travel of the gate.
4). Make sure the gate is at horizontal level that the gate will not move aside at any position.
5). Make sure the gate can bear the impact of the motor torque when it is installed on the plate which the surface is
sufficiently sturdy.
6). Make sure that the installation area is not easy to be invaded by flood. If necessary, mount the raised from the
ground.
7). Make sure the photo sensors (optional) are installed on flat surfaces to ensure the two ends of receiving and
transmitting corresponded to each other.
8). Make sure the installation area is suitable to the size of and the area is safe and easy to release the gearmotor.

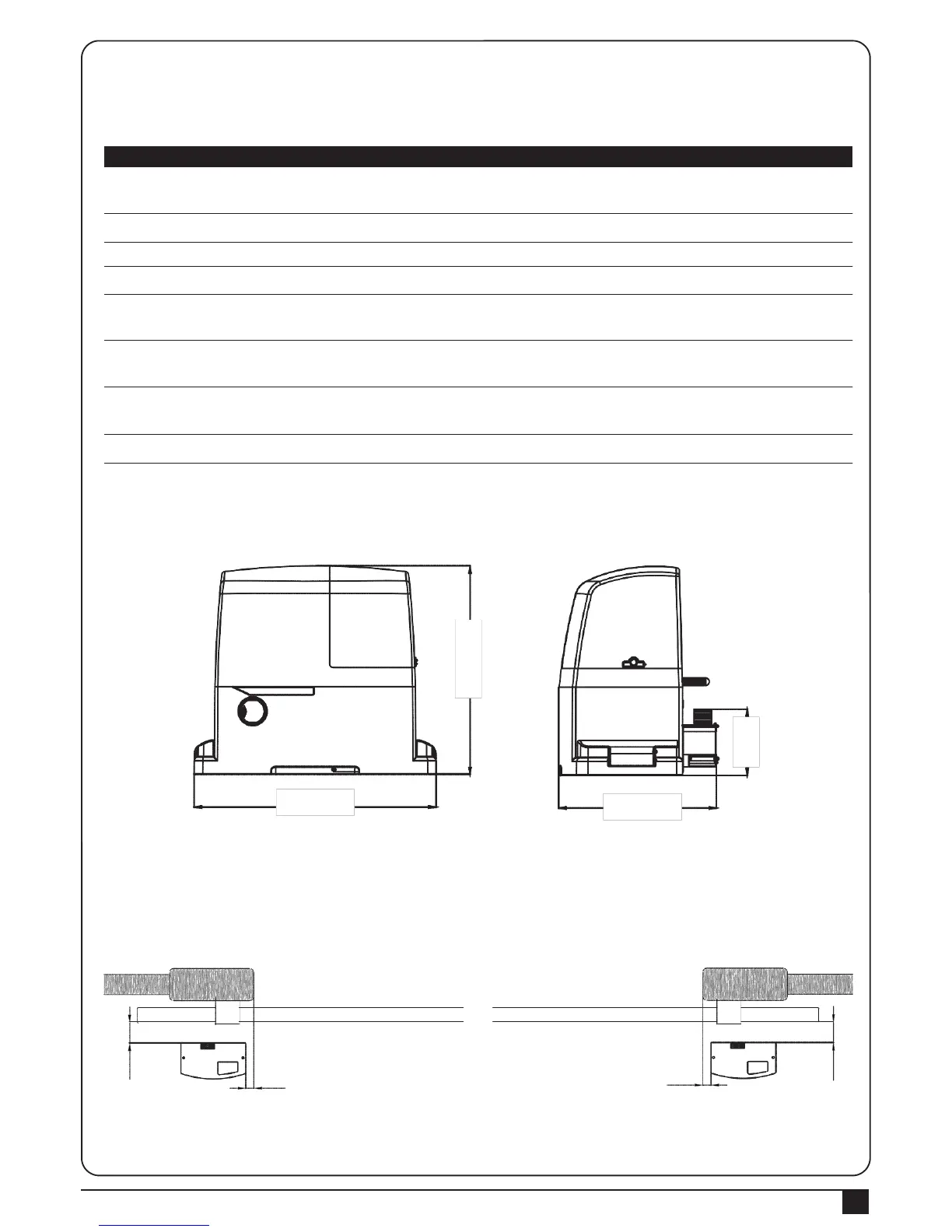

Check the dimensions of the motors as below:
Figure
11
332mm
216mm
9). The installed at the left side and at the right site as below:
Gate without rack: the distances indicated in
Figure 12.
Figure
12
SX
DX
50mm
50mm
