Section 3 USING THE LATHE
What is not in this section ...
The PM-1440BV is a conventional engine lathe that requires
little explanation except for details specic to this particular
model — speed selection, thread cutting, and the saddle/
cross-slide power feed system. Because the user is assumed
to be familiar with general purpose metal lathes, this section
contains very little tutorial.

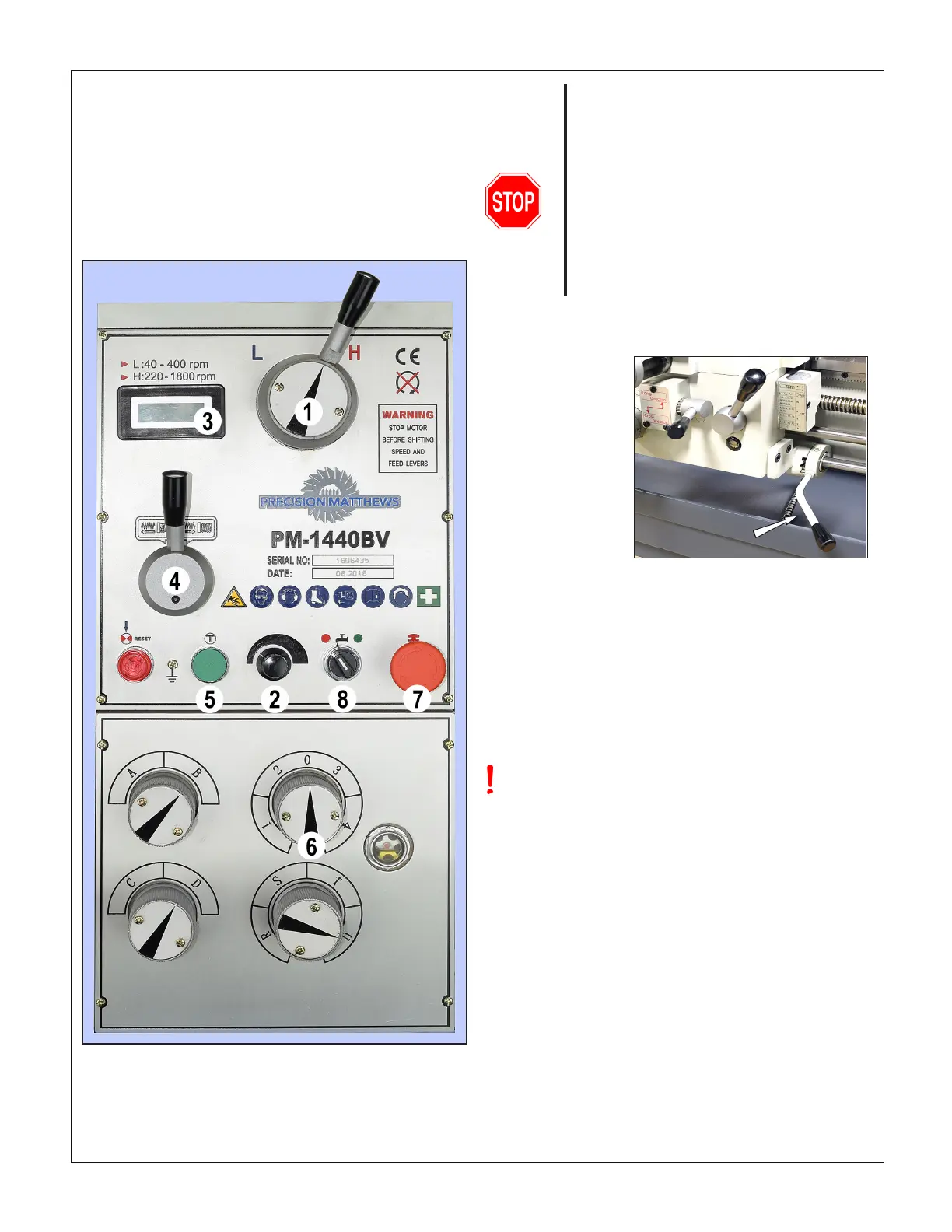

Figure 3-1 Control panel & feed gearbox
(1) Speed range selector; (2) Speed adjust knob; (3) Tachometer
(speed in rpm); (4) Saddle Feed direction selector — shown here in
neutral, no feed; (5) Jog push-button; (6) When set to 0 as shown,
this knob selects feed shaft drive, disengaging the leadscrew; (7)
Emergency E-Stop button — must be OUT for the lathe to function.
Before doing ANYTHING, check the instal-
lation instructions and power-up procedure
in Section 1
STOP the motor before changing speed
RANGE, H to L, L to H
STOP the motor before changing feed DI-
RECTION and saddle feed GEARBOX selec-
tions
Don't use JOG unless the gears are fully
meshed
Before switching power on (switch at back of headstock), be
sure the E-Stop button is not pushed in, (7) Figure 3-1, and
that the Motor Control Lever on the apron is mid-travel, o,
Figure 3-2. Check that the drive train, L or H range, is properly
engaged, then operate the Motor Control Lever to run the spin-
dle in the desired direction. Adjust knob (2) to control spindle
speed.
Figure 3-2 Motor control lever
Mid-travel OFF, Down FORWARD, Up REVERSE
When changing ANY gear selection — speed range, feed direc-
tion, feed speed — rst stop the motor. Be patient! It is not always
possible to go directly from one mesh to another, so move the
spindle back and forth by hand while easing the lever/knob into
position. Don’t use JOG to do this! This may damage gears.
SADDLE FEED DIRECTION
The lever below the tachometer determines whether the sad-
dle feed is right to left — the usual direction for turning and
thread cutting — or reversed. The selected direction applies
to both the leadscrew and the saddle/cross slide power feed.
Power feed is OFF when the knob is at 12 o'clock position, as
in the photo.
JOG FEATURE
"Jog" is momentary-type push-button, active only if the Motor
Control lever is in the mid-travel (OFF) position, Figure 3-2.
Press the button briey to "nudge" the spindle forward by a
few degrees. Jog can be used to reposition the chuck and/or
workpiece, especially useful when low spindle-speed gearing
makes hand rotation dicult.
The control system can be rewired for "Reverse Jog", see
INITIAL CHECKS, Section 1.
