5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench and a Phillips
s
crewdriver .

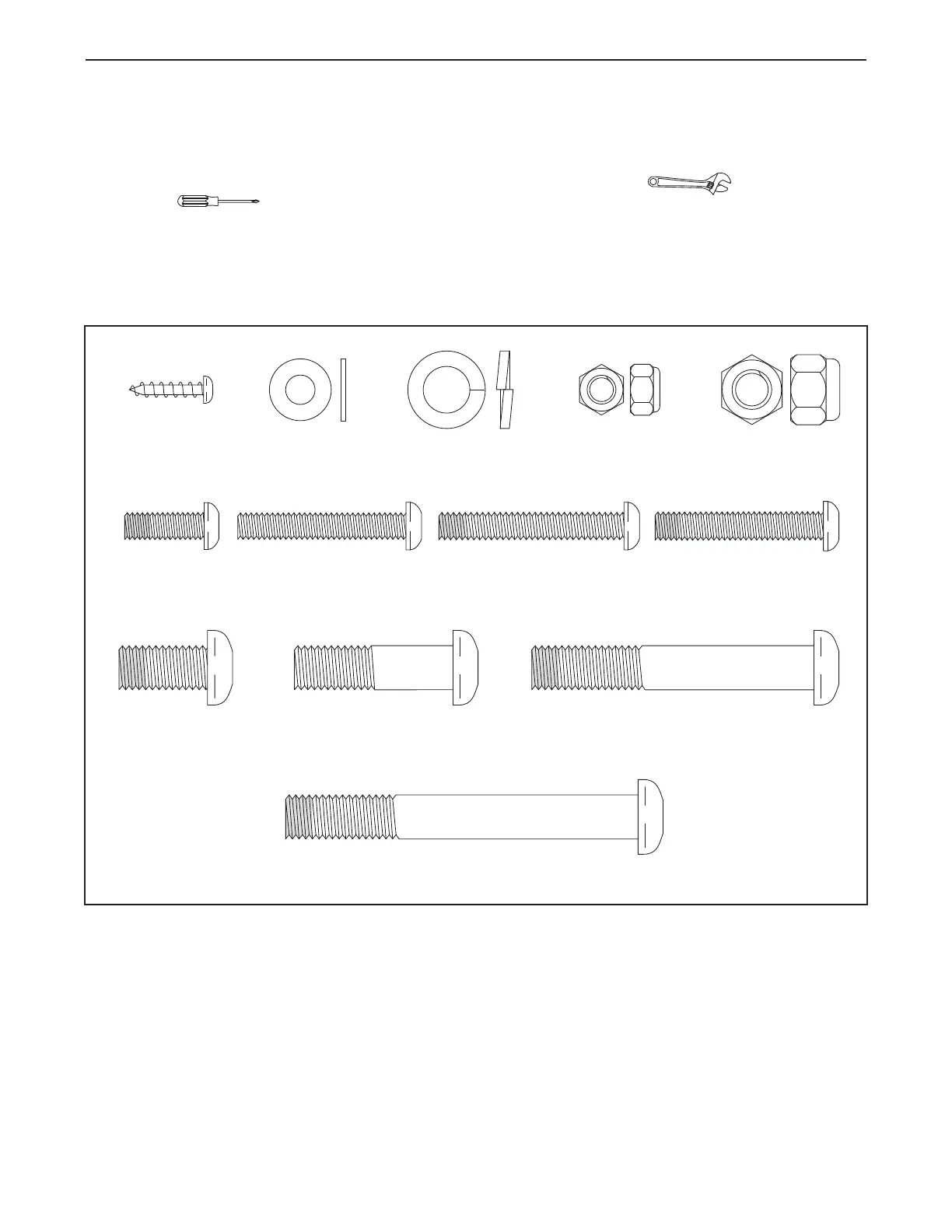

Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled.
M10 Locknut
(58)–2
M10 Split Washer
(48)–2
M10 x 80mm Patch Screw (47)–2
M10 x 64mm Patch
Screw (52)–3
M6 Locknut
(56)–4
M4 x 16mm Screw
(62)–10
M6 Washer
(63)–4
M10 x 20mm Patch
Screw (54)–4
M10 x 36mm
Screw (57)–2
M6 x 18mm Patch
Screw (59)–2
M6 x 42mm Patch
Screw (60)–2
M6 x 38mm Bolt
(55)–4
1/4" x 38mm Patch
Screw (61)–4
