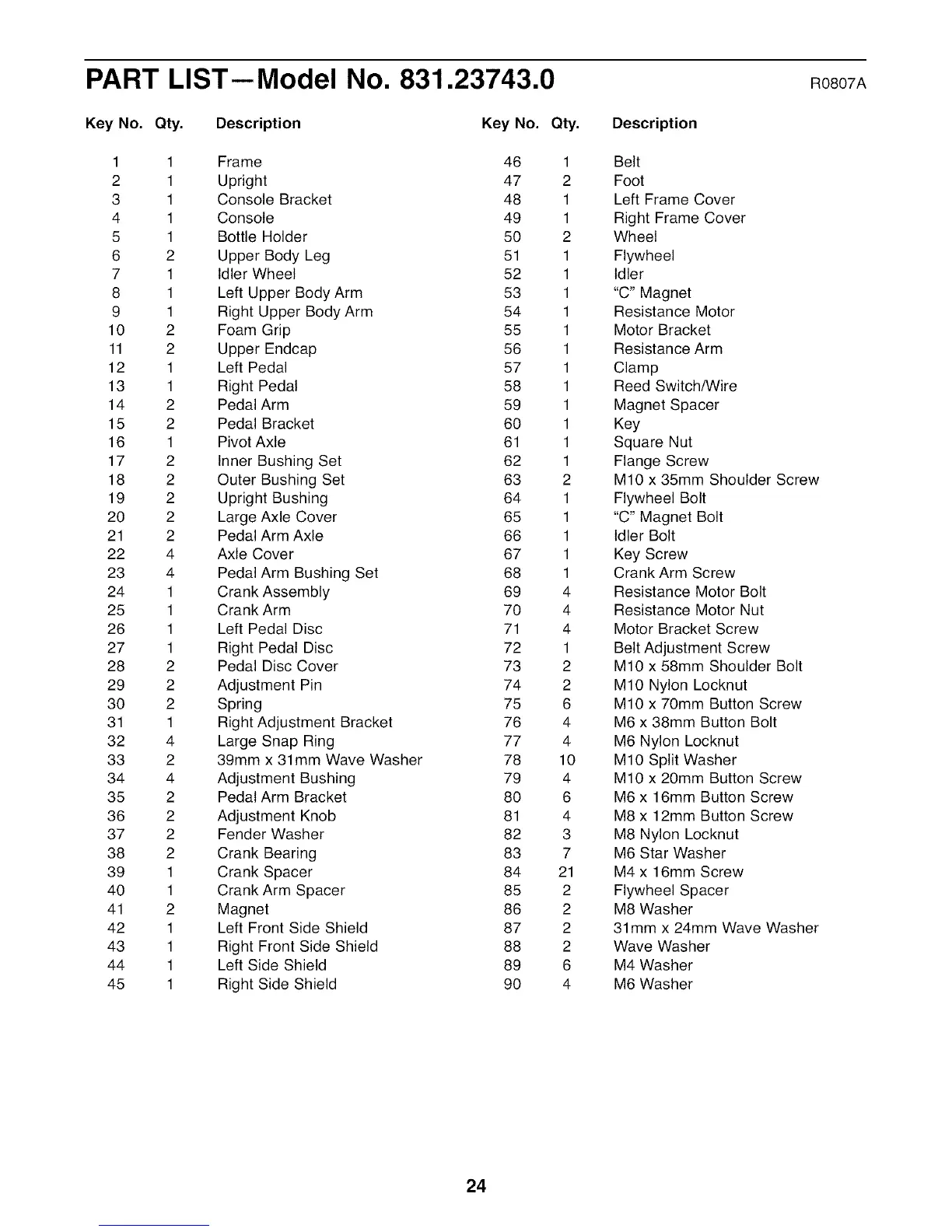

PART LIST--Model No. 831.23743.0 RoaozA
Key No. Qty. Description Key No. Qty.
1 1 Frame 46 1
2 1 Upright 47 2
3 1 Console Bracket 48 1
4 1 Console 49 1
5 1 Bottle Holder 50 2
6 2 Upper Body Leg 51 1
7 1 Idler Wheel 52 1
8 1 Left Upper Body Arm 53 1
9 1 Right Upper Body Arm 54 1
10 2 Foam Grip 55 1
11 2 Upper Endcap 56 1
12 1 Left Pedal 57 1
13 1 Right Pedal 58 1
14 2 Pedal Arm 59 1
15 2 Pedal Bracket 60 1
16 1 Pivot Axle 61 1
17 2 Inner Bushing Set 62 1
18 2 Outer Bushing Set 63 2
19 2 Upright Bushing 64 1
20 2 Large Axle Cover 65 1
21 2 Pedal Arm Axle 66 1
22 4 Axle Cover 67 1
23 4 Pedal Arm Bushing Set 68 1
24 1 Crank Assembly 69 4
25 1 Crank Arm 70 4
26 1 Left Pedal Disc 71 4
27 1 Right Pedal Disc 72 1
28 2 Pedal Disc Cover 73 2
29 2 Adjustment Pin 74 2
30 2 Spring 75 6
31 1 Right Adjustment Bracket 76 4
32 4 Large Snap Ring 77 4
33 2 39mm x 31mm Wave Washer 78 10
34 4 Adjustment Bushing 79 4
35 2 Pedal Arm Bracket 80 6
36 2 Adjustment Knob 81 4
37 2 Fender Washer 82 3
38 2 Crank Bearing 83 7
39 1 Crank Spacer 84 21
40 1 Crank Arm Spacer 85 2
41 2 Magnet 86 2
42 1 Left Front Side Shield 87 2
43 1 Right Front Side Shield 88 2
44 1 Left Side Shield 89 6
45 1 Right Side Shield 90 4
Description
Belt
Foot
Left Frame Cover
Right Frame Cover
Wheel
Flywheel
Idler
"C" Magnet
Resistance Motor
Motor Bracket
Resistance Arm
Clamp
Reed Switch/Wire
Magnet Spacer
Key
Square Nut
Flange Screw
M10 x 35mm Shoulder Screw
Flywheel Bolt
"C" Magnet Bolt
Idler Bolt
Key Screw
Crank Arm Screw
Resistance Motor Bolt
Resistance Motor Nut
Motor Bracket Screw
Belt Adjustment Screw
M10 x 58mm Shoulder Bolt
M10 Nylon Locknut
M10 x 70mm Button Screw
M6 x 38mm Button Bolt
M6 Nylon Locknut
M10 Split Washer
M10 x 20mm Button Screw
M6 x 16mm Button Screw
M8 x 12mm Button Screw
M8 Nylon Locknut
M6 Star Washer
M4 x 16mm Screw
Flywheel Spacer
M8 Washer
31mm x 24mm Wave Washer
Wave Washer
M4 Washer
M6 Washer
