12

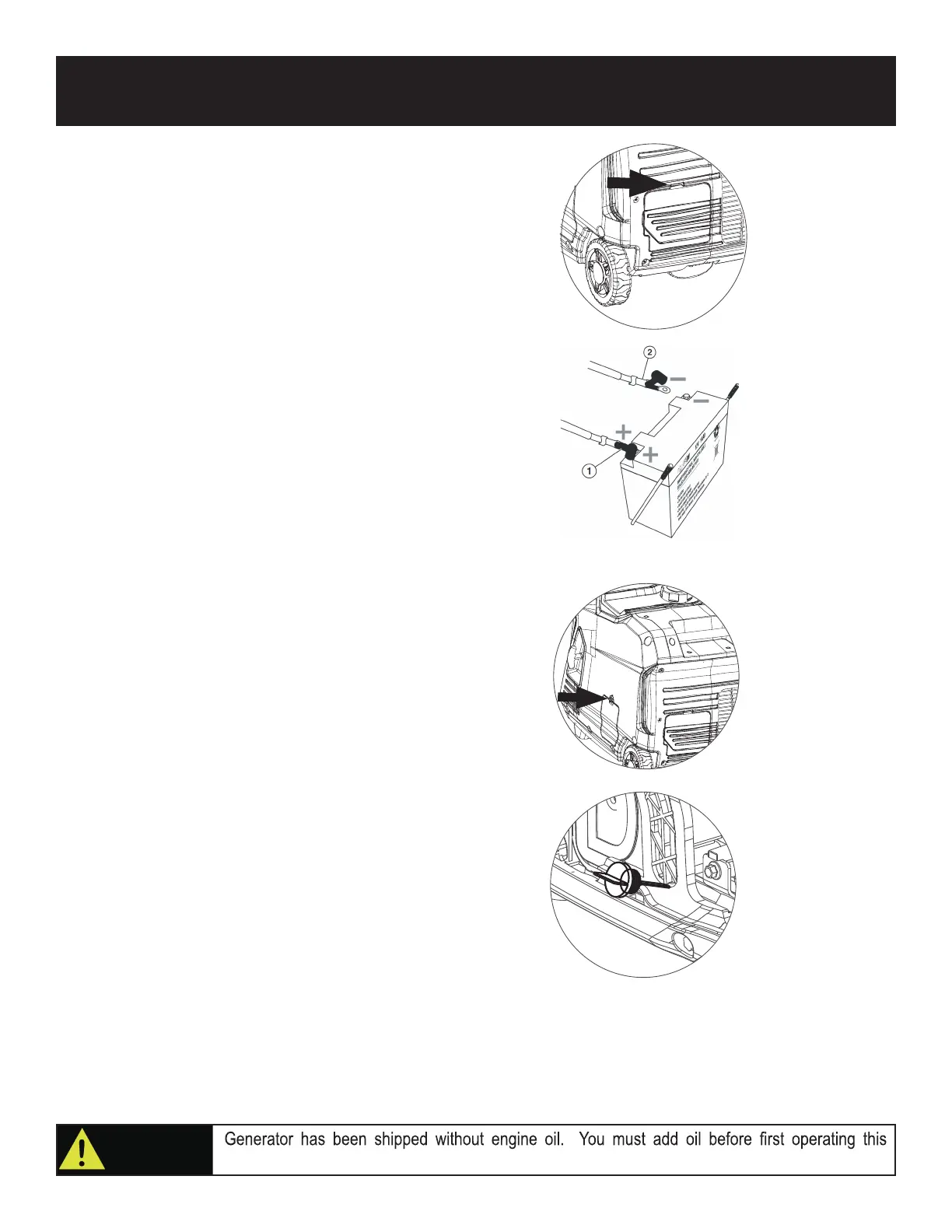

• Place generator on a level surface.
• Unclip and remove the oil service panel to access
the oil fill/drain plug.
CAUTION!
generator. Always check oil level before each operation.
ASSEMBLY
•
• Be sure to replace dipstick and securely tighten before attempting to start the engine.
Insert a funnel into the crankcase dipstick hole and carefully add the specified amount of 4-Cycle engine oil (SAE 10W-
30) to empty reservoir until or oil reaches the outer edge of the oil fill hole (crankcase dipstick hole).
• To check oil, set generator on a level surface, wipe dipstick clean, then reinsert dipstick without re-threading.
• Remove the crankcase dipstick.
Recommended Oil: SAE 10W-30
Oil Capacity: 0.59L (20.2oz)
kcehC / gniddA
Connecting the Battery
ing Engine Oil
• Unclip the battery access panel on the back of the
unit next to the muffler
•
Securely tightened battery cables to the battery post
accordingly (negative cable to negative post) Positive cable
to positive post. (see illustartion)
Installing Battery Leads
Positive
(black)
Negative
(Red)
NOTE: The electric start generator is equipped
with a battery charging feature. Once the engine is
running, a small charge is supplied to the battery
via the battery cables and will slowly recharge the
battery.
