AC Pilot Indicator Light
The green AC Pilot Indicator Light comes on when the engine starts
and generates power.

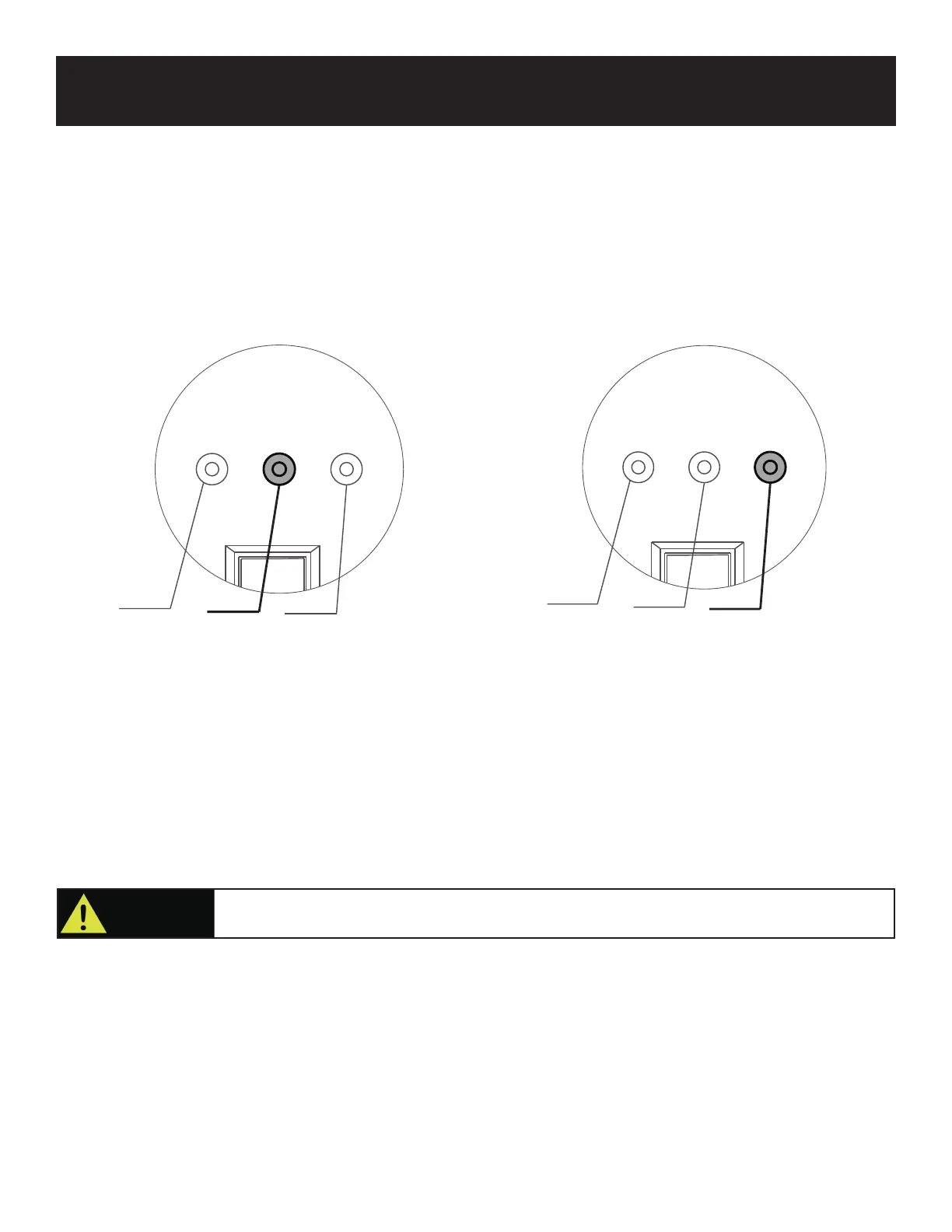

CONTROL PANEL FUNCTIONS
Oil Warning
Indicator
light
Overload
Indicator
light
AC Pilot
Indicator
light
DC Circuit Breaker
When the DC Circuit Breaker is in the “ON” position, the generator is able to supply power to connected electronic devices.
When the DC Circuit Breaker is in the “OFF” position, the generator will no longer supply power. The DC Circuit Breaker
automatically turns “OFF” when connecting electronic devices to the generator that exceed the generator’s rated output. If
the DC Circuit Breaker turns off, reduce the load of connected electronic devices until the load is within the specified rated
output. To re-establish power, return the DC Circuit Breaker back to the “ON” position.
CAUTION!
rekaerB tiucriC CD eht fI turns off again, stop using the generator immediately and consult a
qualified electrician or small Engine repair shop.
Engine Economy Control
• When the Engine Economy switch is turned to the “ON” position, the economy control unit automatically determines the
generator’s proper engine speed based on the connected electronic load. This results in superior fuel economy and
reduces noise.
• When the Economy switch is turned to the “OFF” position, the engine runs at the rated speed of 4,100 r/min.
Note: The engine overload indicator light may turn on for a few sec-
onds when attaching a load due to a power surge. This is normal.
Oil Warning
Indicator
light
Overload
Indicator
light
AC Pilot
Indicator
light
