9
ASSEMBLY
• Parts needed - Support leg & M8 Bolt (2).
Raise the front end of the generator high enough to gain access to the bottom of the frame. Securely position props
underneath to support.
•
• Line up holes on the support leg bracket to the holes on the front of the generator frame.
• Attach the support leg using M8 Bolt.

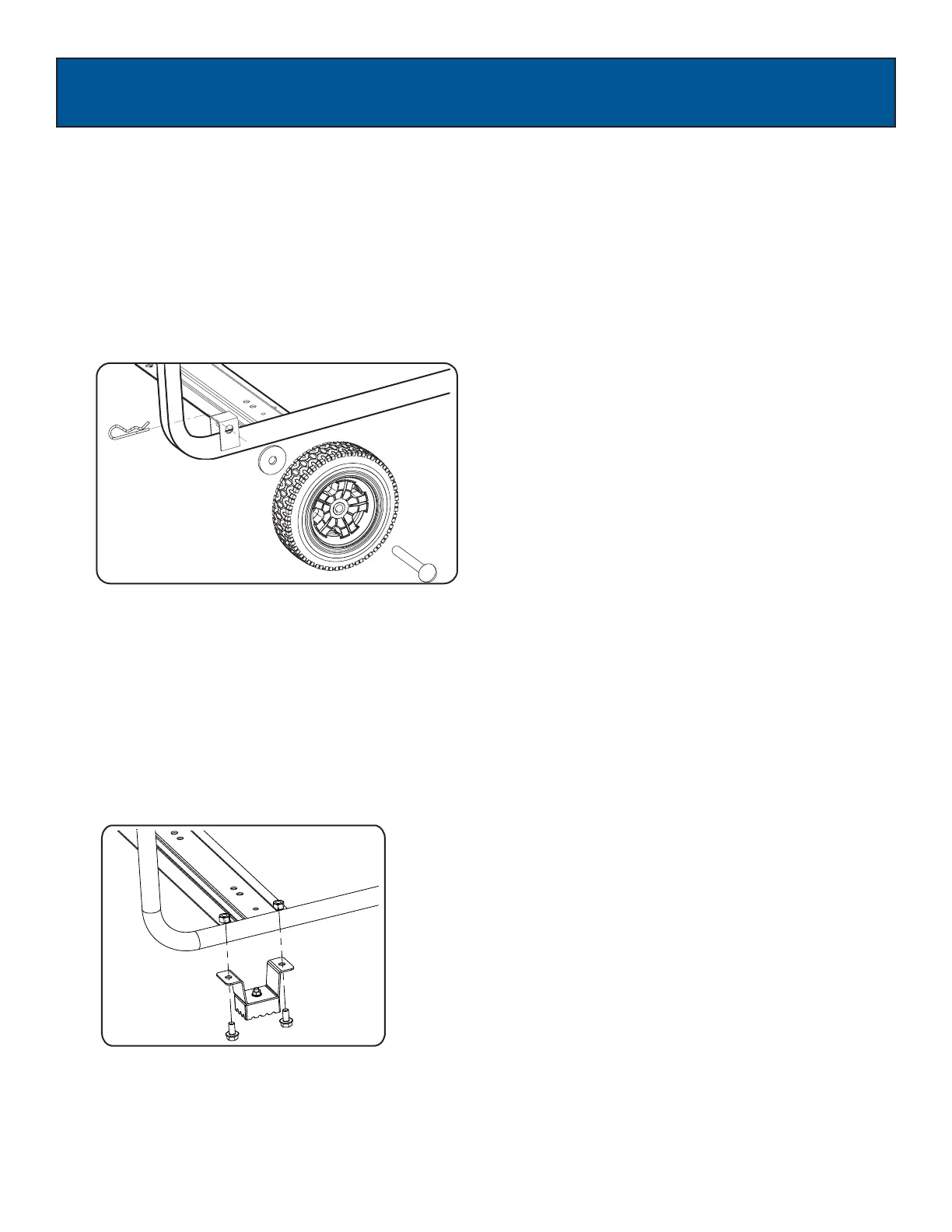

Installing Support Leg (See fig 2)
• Parts needed - 2 wheels, 2 axles, 2 hair pins, and 2 washers.
• Raise or tilt generator so you can slide the wheel axle pin into the wheel, the washer, the wheel mounting hole located
on the side of the frame.
• Secure the wheel assembly by reinserting a hair pin through hole at the end of the wheel axle and pressing until it locks
into place.
• Repeat process on the other side of the generator to install the second wheel.
Attaching Wheels (See fig 1)
Fig 1
Fig 2
