Matrix 6/816 Installation Manual
RINS546-10 Page 1
1. INSTALLATION AND POWER-UP
Before mounting the panel you must decide on the place of installation. The use of remote keypads means
that the panel can be concealed anywhere on the premises, and it is recommended that the panel be housed
in a concealed place.
NOTE: Screws should be tightened with hand tools ONLY. Do NOT use power drivers to tighten
screws.

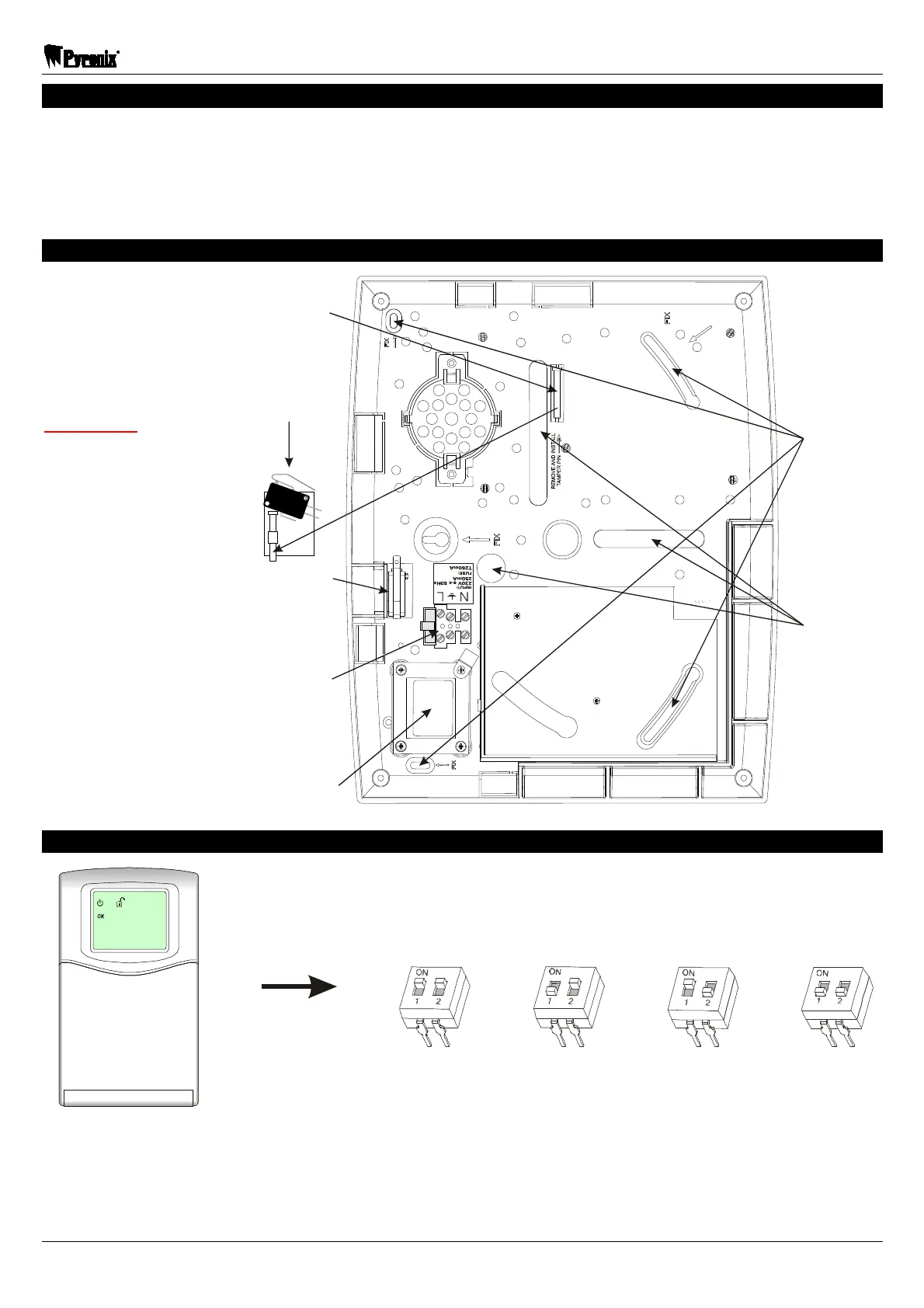

1.1 Plastic Case Assembly
IMPORTANT
To ensure the correct
airflow, always mount
the unit vertically.
Secure the unit to a
sturdy and stable
surface. The panel is no
designed for operation
in a high humidity
environment and is only
suitable for installation
indoors.
1.2 Keypad Addressing
№1 №2 №3 №4
Mains
transformer
Cable
entry
Wall fixing
hole
Mains fused
terminal block
Tamper pin of the
panel case
Tamper switch of the
panel case
Remove and install
tamper pin of the
panel case as below
To Next Page
