6 – Removal/Replacement
Power Supply Removal and Replacement
6-2 59096-04 A
S
6.2
Power Supply Removal and Replacement
The SANbox 5202/5602 power supplies are hot pluggable. This means you can
remove or install one of the power supplies while the switch is operating without
disrupting service. The power supplies are also interchangeable; that is, the left
and right power supplies are the same unit.
When removing or replacing a power supply, consider the following:
The left and right power supplies are interchangeable. However, you must
orient the power supply so that AC receptacle is on the right.
Both power supplies must have the same air flow direction. The part number
label on the power supply indicates the air flow direction.
When removing or replacing a power supply on an operating switch, be sure
the Heartbeat LED is showing the normal 1 blink per second. This allows the
switch to correctly report power supply status.
To remove a power supply, unplug the power supply and loosen the two knurled
fasteners with a cross-head screw driver as shown in Figure 6-1. Grasp the power
supply handle and pull firmly to disengage the modular connector. Slide the power
supply out of its bay.

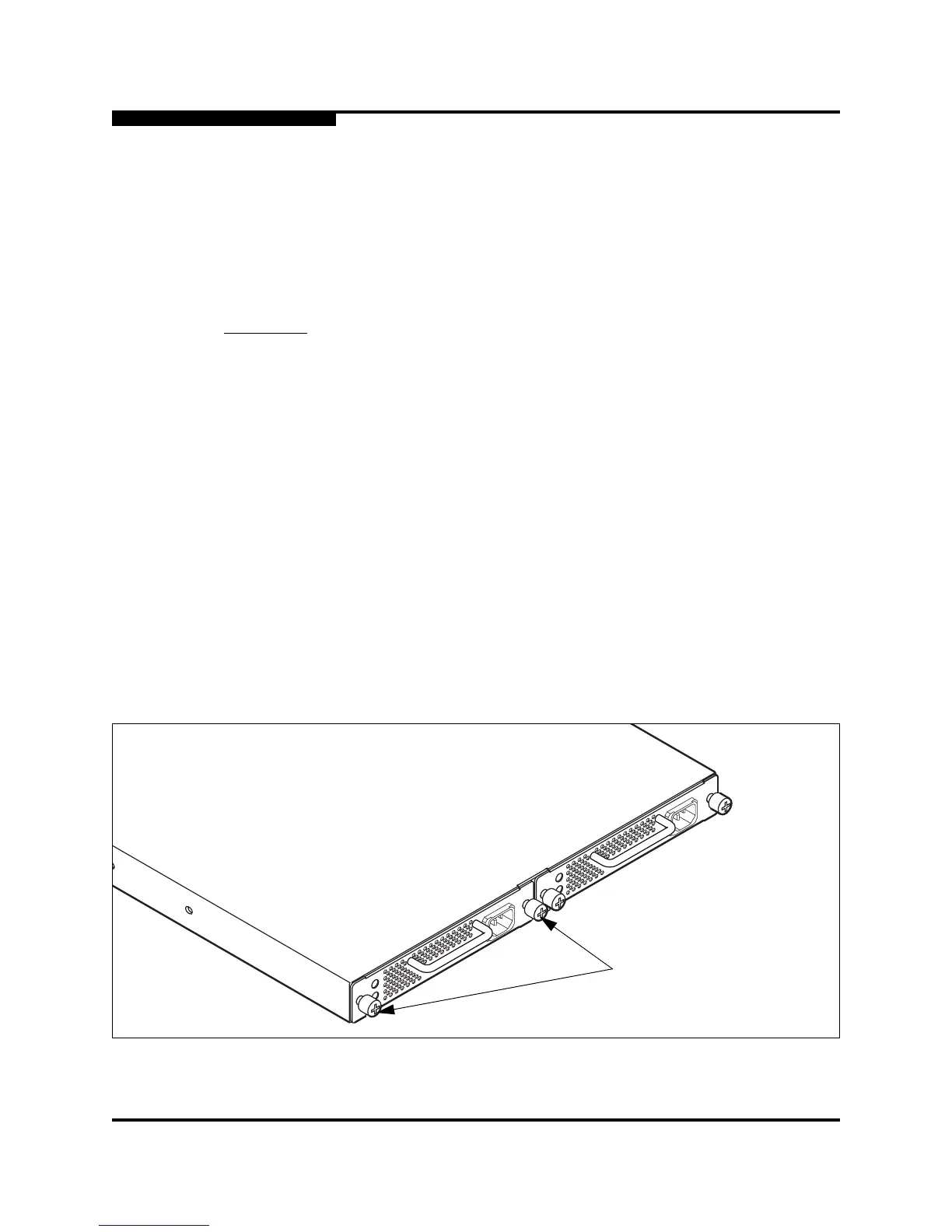

Figure 6-1. Power Supply Removal
CAUTION! Both power supplies must have the same air flow direction to
prevent the switch from overheating.
To avoid overheating, do not operate the switch with one power
supply any longer than necessary.
Knurled
Fasteners
Power Supply 1
Power Supply 2
