Page #11 background imageLoading...

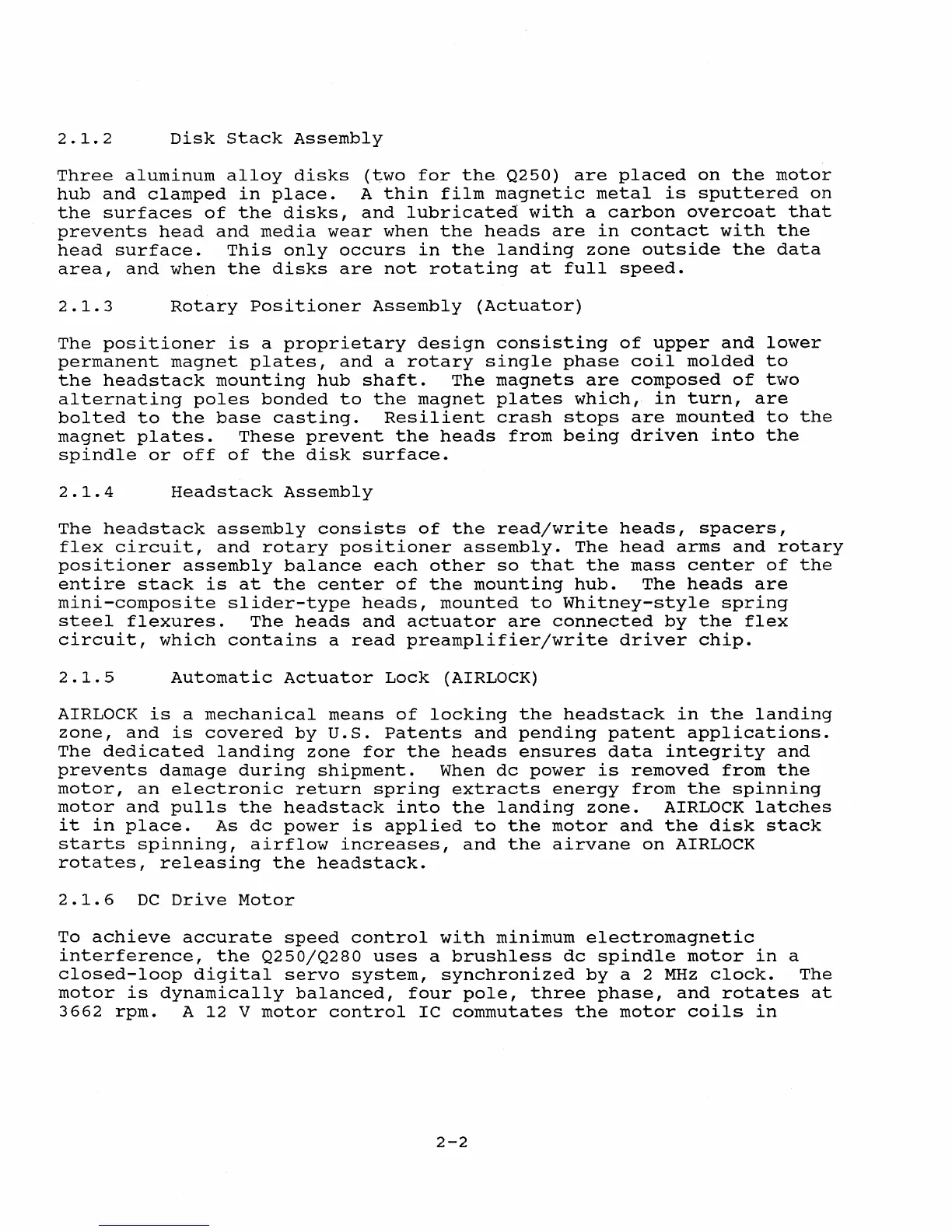

Page #11 background image
2.1.2
Disk
Stack
Assembly
Three
aluminum
alloy
disks
(two
for
the
Q250)
are
placed
on
the
motor
hub
and
clamped
in
place.
A
thin
film
magnetic
metal
is
sputtered
on
the
surfaces
of
the
disks,
and
lubricated
with
a
carbon
overcoat
that
prevents
head
and
media
wear
when
the
heads
are
in
contact
with
the
head
surface.
This
only
occurs
in
the
landing
zone
outside
the
data
area,
and
when
the
disks
are
not
rotating
at
full
speed.
2.1.3
Rotary
positioner
Assembly
(Actuator)
The
positioner
is
a
proprietary
design
consisting
of
upper
and
lower
permanent
magnet
plates,
and
a
rotary
single
phase
coil
molded
to
the
headstack
mounting
hub
shaft.
The
magnets
are
composed
of
two
alternating
poles
bonded
to
the
magnet
plates
which,
in
turn,
are
bolted
to
the
base
casting.
Resilient
crash
stops
are
mounted
to
the
magnet
plates.
These
prevent
the
heads
from
being
driven
into
the
spindle
or
off
of
the
disk
surface.
2.1.4
Headstack
Assembly
The
headstack
assembly
consists
of
the
read/write
heads,
spacers,
flex
circuit,
and
rotary
positioner
assembly.
The
head
arms
and
rotary
positioner
assembly
balance
each
other
so
that
the
mass
center
of
the
entire
stack
is
at
the
center
of
the
mounting
hub.
The
heads
are
mini-composite
slider-type
heads,
mounted
to
Whitney-style
spring
steel
flexures.
The
heads
and
actuator
are
connected
by
the
flex
circuit,
which
contains
a
read
preamplifier/write
driver
chip.
2.1.5
Automatic
Actuator
Lock
(AIRLOCK)
AIRLOCK
is
a
mechanical
means
of
locking
the
heads
tack
in
the
landing
zone,
and
is
covered
by
u.s.
Patents
and
pending
patent
applications.
The
dedicated
landing
zone
for
the
heads
ensures
data
integrity
and
prevents
damage
during
shipment.
When
dc
power
is
removed
from
the
motor,
an
electronic
return
spring
extracts
energy
from
the
spinning
motor
and
pulls
the
headstack
into
the
landing
zone.
AIRLOCK
latches
it
in
place.
As
dc
power
is
applied
to
the
motor
and
the
disk
stack
starts
spinning,
airflow
increases,
and
the
airvane
on
AIRLOCK
rotates,
releasing
the
headstack.
2.1.6
DC
Drive
Motor
To
achieve
accurate
speed
control
with
minimum
electromagnetic
interference,
the
Q250/Q280
uses
a
brushless
dc
spindle
motor
in
a
closed-loop
digital
servo
system,
synchronized
by
a 2
MHz
clock.
The
motor
is
dynamically
balanced,
four
pole,
three
phase,
and
rotates
at
3662
rpm.
A
12
V
motor
control
IC
commutates
the
motor
coils
in
2-2
