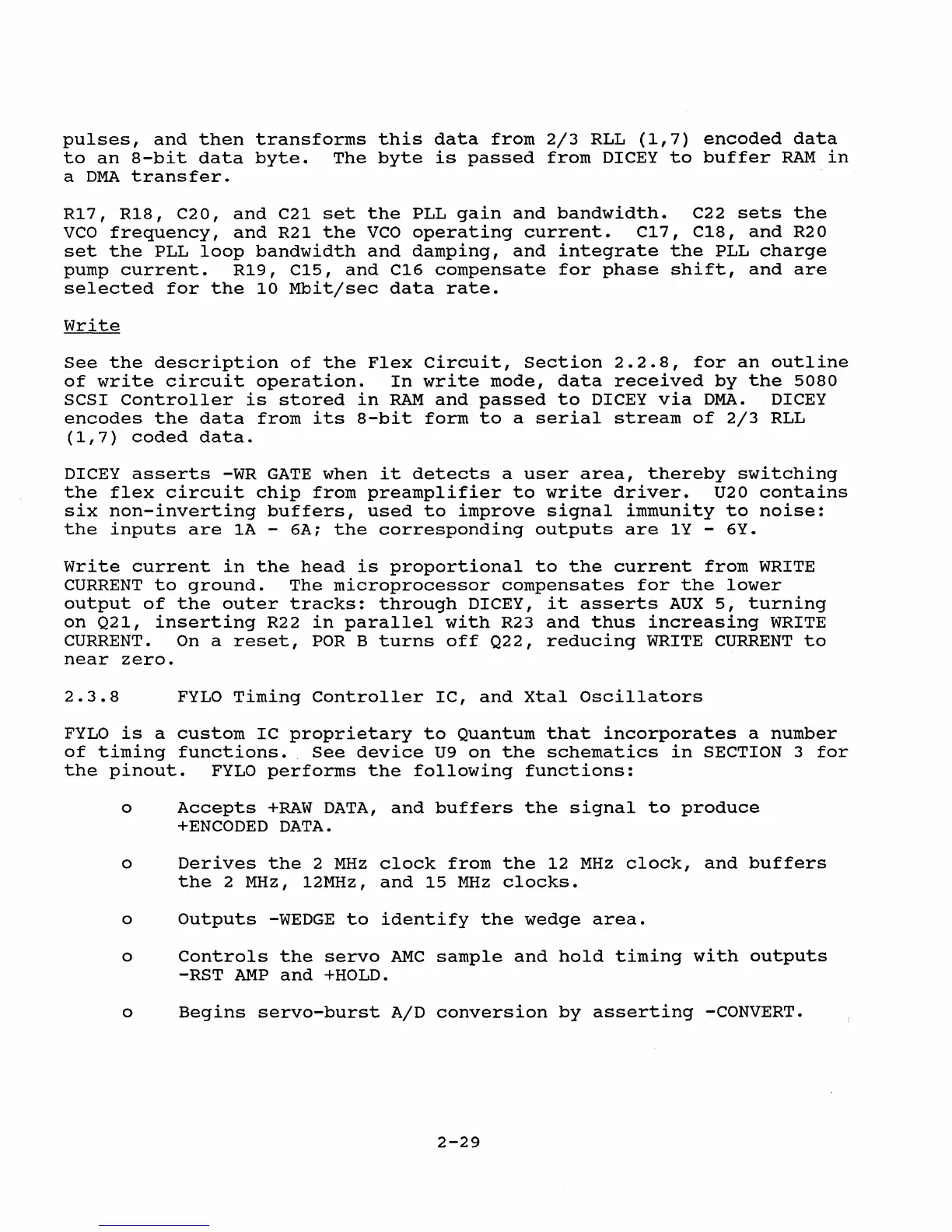

Page #38 background image
pulses,
and
then
transforms
this
data
from
2/3
RLL
(1,7)
encoded
data
to
an
a-bit
data
byte.
The
byte
is
passed
from
DICEY
to
buffer
RAM
in
a
DMA
transfer.
R17,
RIB,
C20,
and
C21
set
the
PLL
gain
and
bandwidth.
C22
sets
the
VCO
frequency,
and
R21
the
VCO
operating
current.
C17,
C1B,
and
R20
set
the
PLL
loop
bandwidth
and
damping,
and
integrate
the
PLL
charge
pump
current.
R19,
C15,
and
C16
compensate
for
phase
shift,
and
are
selected
for
the
10
Mbit/sec
data
rate.
write
See
the
description
of
the
Flex
Circuit,
section
2.2.B,
for
an
outline
of
write
circuit
operation.
In
write
mode,
data
received
by
the
50BO
SCSI
Controller
is
stored
in
RAM
and
passed
to
DICEY
via
DMA.
DICEY
encodes
the
data
from
its
B-bit
form
to
a
serial
stream
of
2/3
RLL
(1,7)
coded
data.
DICEY
asserts
-WR
GATE
when
it
detects
a
user
area,
thereby
switching
the
flex
circuit
chip
from
preamplifier
to
write
driver.
U20
contains
six
non-inverting
buffers,
used
to
improve
signal
immunity
to
noise:
the
inputs
are
1A - 6A;
the
corresponding
outputs
are
1Y
- 6Y.
write
current
in
the
head
is
proportional
to
the
current
from
WRITE
CURRENT
to
ground.
The
microprocessor
compensates
for
the
lower
output
of
the
outer
tracks:
through
DICEY,
it
asserts
AUX
5,
turning
on
Q21,
inserting
R22
in
parallel
with
R23
and
thus
increasing
WRITE
CURRENT.
On a
reset,
POR
B
turns
off
Q22,
reducing
WRITE
CURRENT
to
near
zero.
2.3.B
FYLO
Timing
Controller
IC,
and
Xtal
Oscillators
FYLO
is
a
custom
IC
proprietary
to
Quantum
that
incorporates
a
number
of
timing
functions.
See
device
U9
on
the
schematics
in
SECTION 3
for
the
pinout.
FYLO
performs
the
following
functions:
o
Accepts
+RAW
DATA,
and
buffers
the
signal
to
produce
+ENCODED
DATA.
o
Derives
the
2
MHz
clock
from
the
12
MHz
clock,
and
buffers
the
2 MHz, 12MHz,
and
15
MHz
clocks.
o
Outputs
-WEDGE
to
identify
the
wedge
area.
o
Controls
the
servo
AMC
sample
and
hold
timing
with
outputs
-RST
AMP
and
+HOLD.
o
Begins
servo-burst
AID
conversion
by
asserting
-CONVERT.
2-29
