Quantum Q250 User Manual

PlL HI 811
1IA DATA
AD DATA
AD CLOCK
PRE VLD
IF
ADDAIDATA
UTCI£D
ADDA.DUT
AUX
I/O
BUS
DICEY IC
..
SERIAL CHANNEL
III
RESISTER 11
BUS
I I
11
- --
UP
..
INTERFACE
-"""
.....
,
MASTER
CONTROL
UNIT
..
-
•
,
DMA
CONTROLLER
-
-
BlFFEA
DATA
BlFFER
AIlIlA.
BlFFER
CONTROLS
SCSI
INTEIFACE

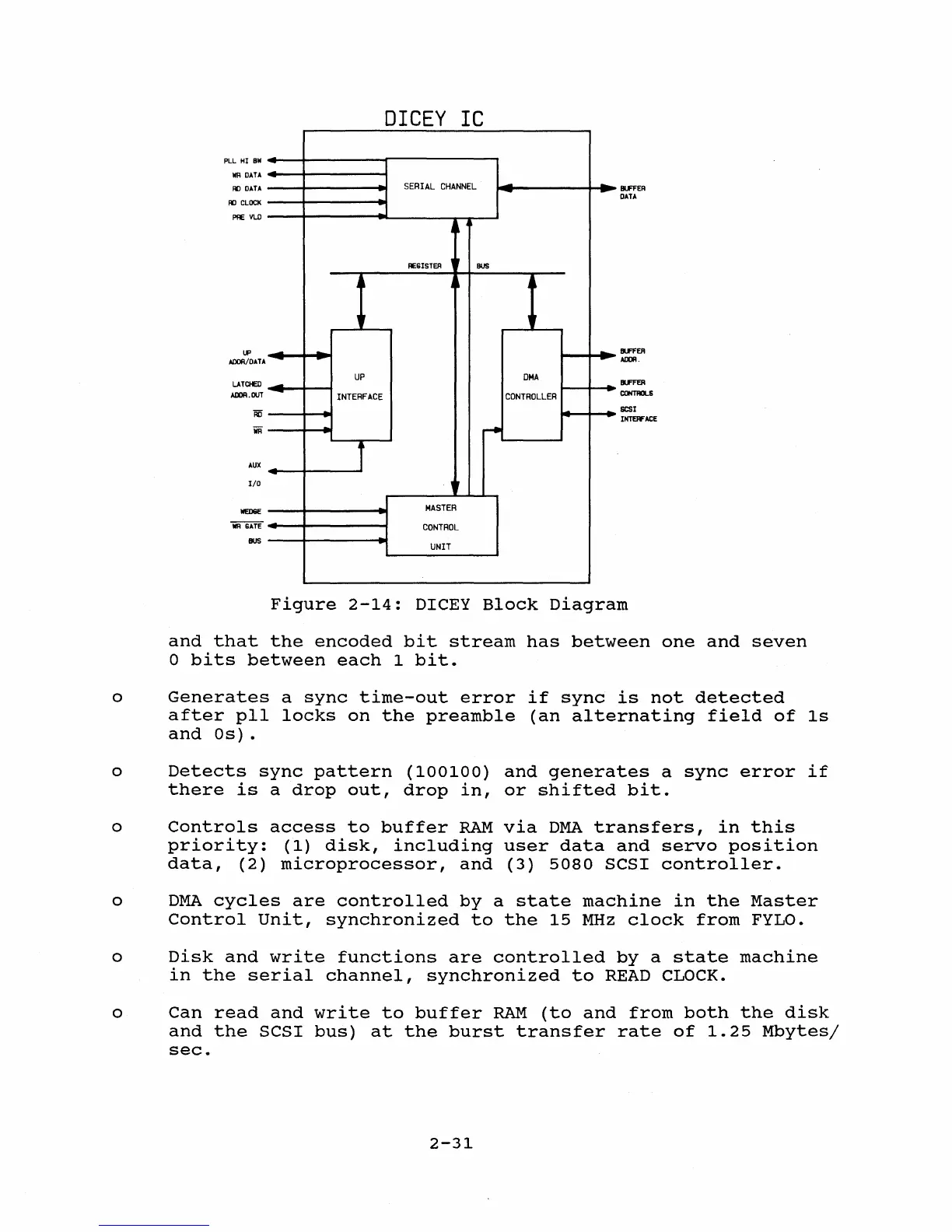

Figure 2-14: DICEY Block Diagram
and that the encoded bit stream has between one and seven
o bits between each 1 bit.
o Generates a sync time-out error if sync is not detected
after pll locks on the preamble (an alternating field of Is
and Os).
o Detects sync pattern (100100) and generates a sync error if
there is a drop out, drop in, or shifted bit.
o Controls access to buffer RAM via DMA transfers, in this
priority: (1) disk, including user data and servo position
data, (2) microprocessor, and (3) 5080 SCSI controller.
o DMA cycles are controlled by a state machine in the Master
Control Unit, synchronized to the 15 MHz clock from FYLO.
o Disk and write functions are controlled by a state machine
in the serial channel, synchronized to READ CLOCK.
o Can read and write to buffer RAM (to and from both the disk
and the SCSI bus) at the burst transfer rate of 1.25 Mbytesj
sec.
