SECTION 2. PRINCIPLES OF OPERATION
2.1
Head Disk Assembly (HDA)
2.1.1 Base Casting Assembly
The single piece, aluminum alloy base casting provides a mounting
surface for the rest of the drive mechanism, PCB, and shock mount
brackets. See Figure 2-1 for relative locations.
yo '\~'ST ~:K ASSEMBLY
r- HEADS
/
ACTUATOR
UPPER AND LOWER
MAGNETS
FACEPLATE
DISK CLAMP
MAGNETIC DISK
! I!
/t:tD
/' '
/' !
MOUNTING HOLES

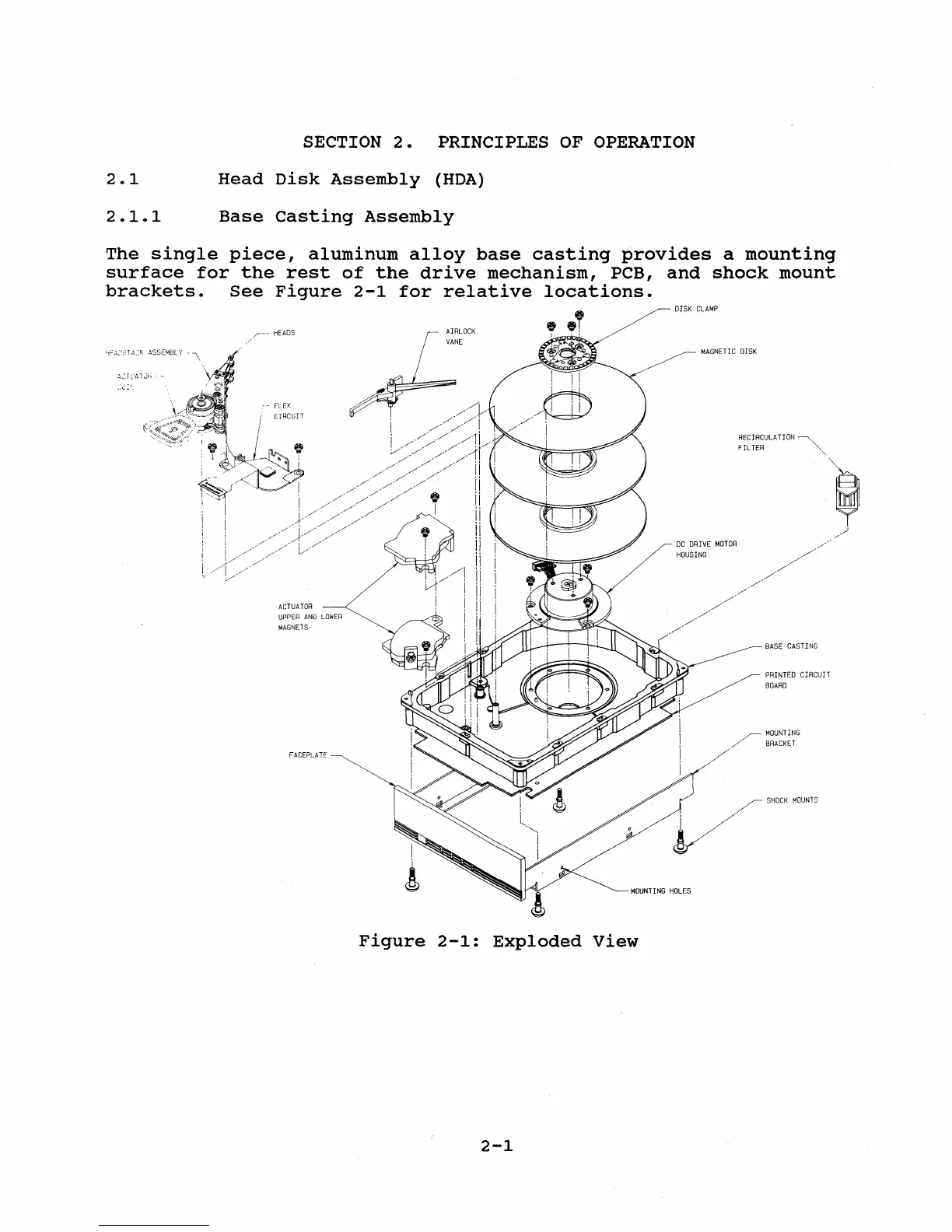

Figure 2-1: Exploded View
2-1
RECIRCULATION ~
FIL TER ",
,
BASE CASTING
PRINTED CIRCUIT
BOARD
~ MOUNTING
/' BRACKET
/~/
