M66 Hardware Design
M66_Hardware_Design Confidential / Released 53 / 80
3.13. Network Status Indication
The NETLIGHT signal can be used to drive a network status indicator LED. The working state of this pin
is listed in the following table.
Table 20: Working State of the NETLIGHT

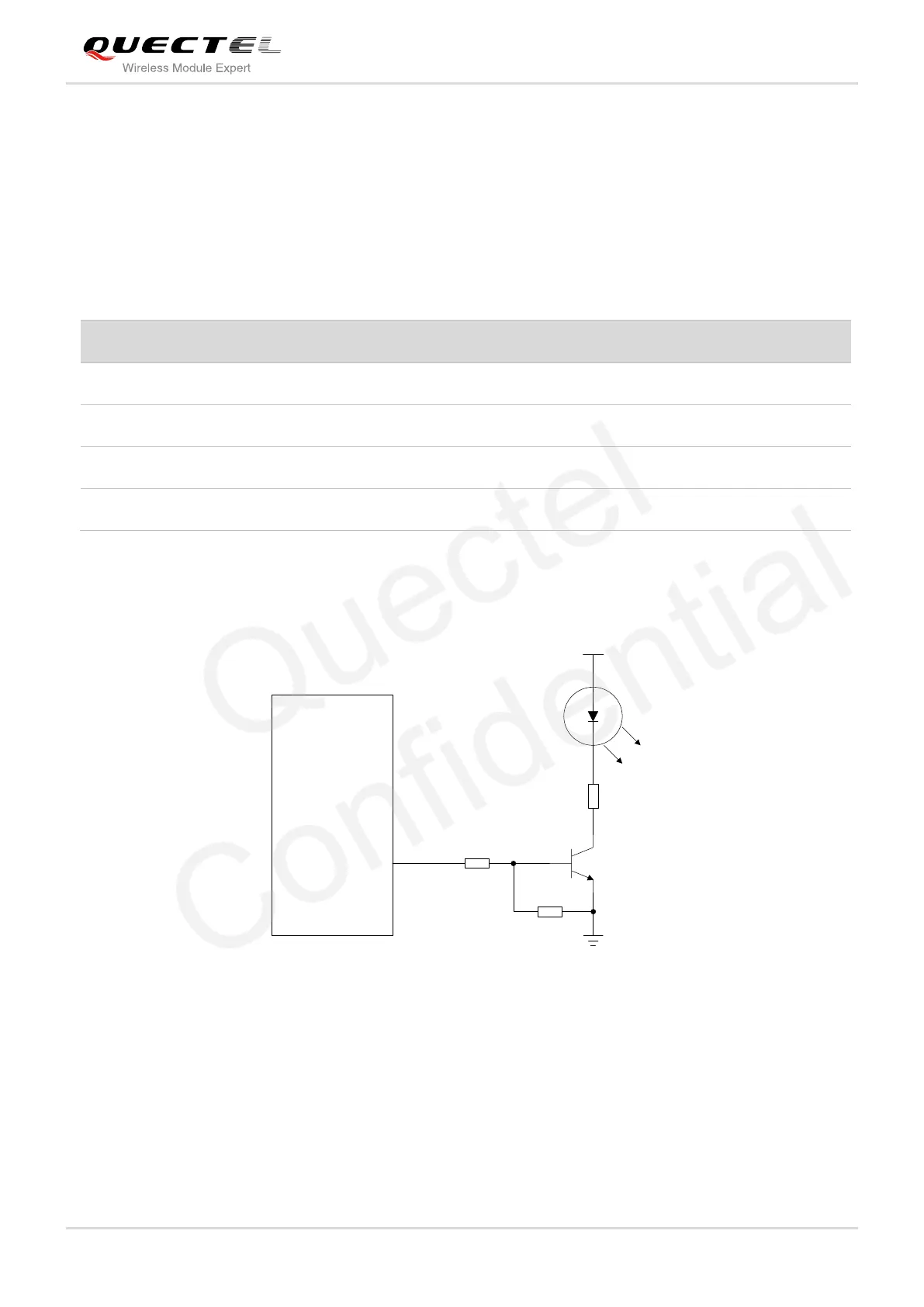

A reference circuit is shown as below.
Module
NETLIGHT
4.7K
47K
300R
VBAT
Figure 37: Reference Design for NETLIGHT
State
Module Function
Off
The module is not running.
64ms On/800ms Off
The module is not synchronized with network.
64ms On/2000ms Off
The module is synchronized with network.
64ms On/600ms Off
The GPRS data transmission after dialing the PPP connection.
