3 Interface Application
3.1. USB Interface

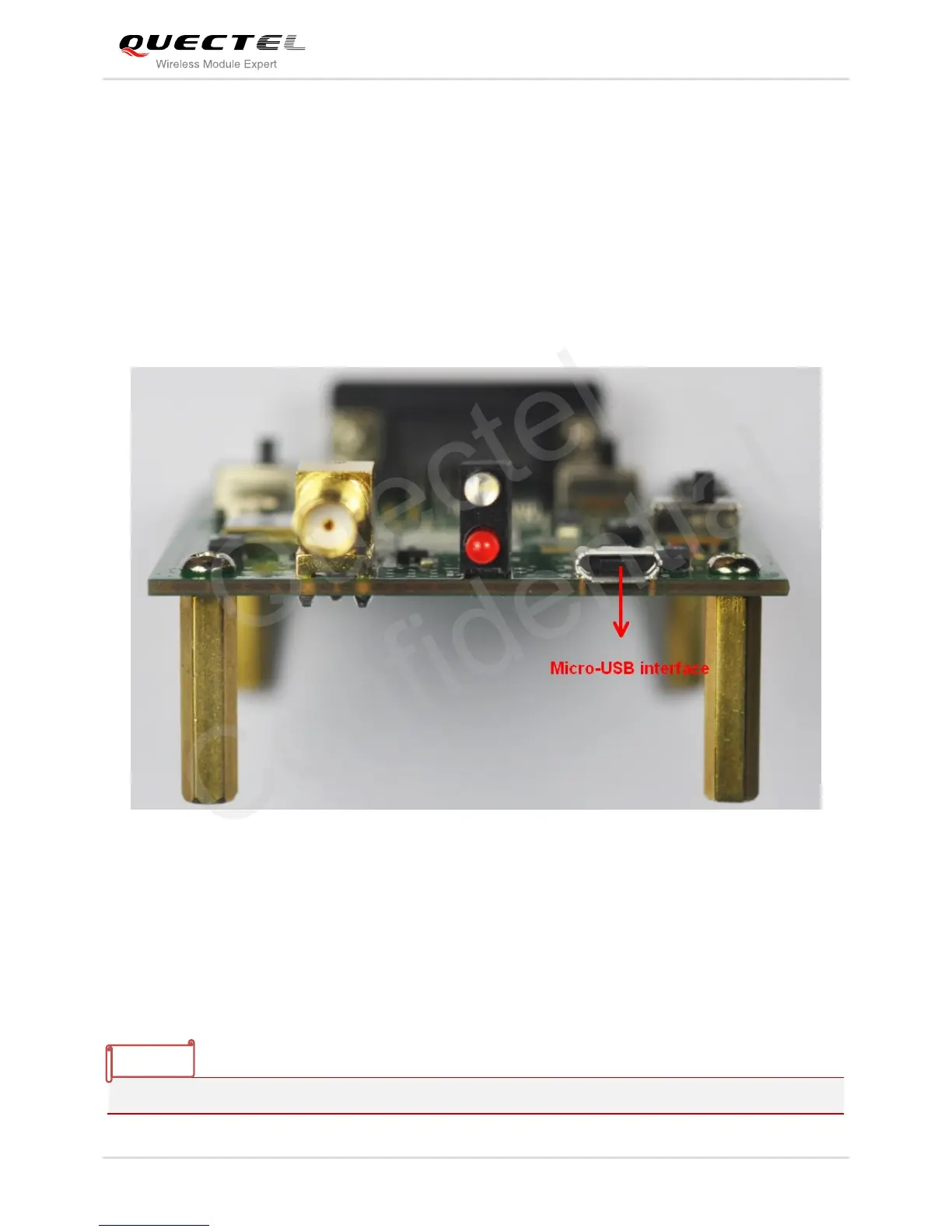

Figure 4: Micro-USB Interface
The main power is supplied via Micro-USB interface. We provide two ways for data communication:
Micro-USB and UART interface which are controlled by alternation switch (S2). Both of RS232 and
Micro-USB cable are necessary, if you want to use UART to output NEMA. So the easy way is to use
Micro-USB cable which both supplies the power and outputs NEMA. You can makes alternation
between UART port and Micro-USB interfaces via switch (S2).
If you want to use PowerGPS Tool, UART interface is recommended for data communication.
