NB-loT Module Series
BC660K-GL-TE-B User Guide
BC660K-GL-TE-B_User_Guide 11 / 30
2.3. Interface Distribution Diagram
The following figure shows the interface distribution of BC660K-GL-TE-B.
J305 J308
S103
J106
J201
J304
J105
J301
D304
J202
J206
D203
J302
J306 J307
S101
S102
J303

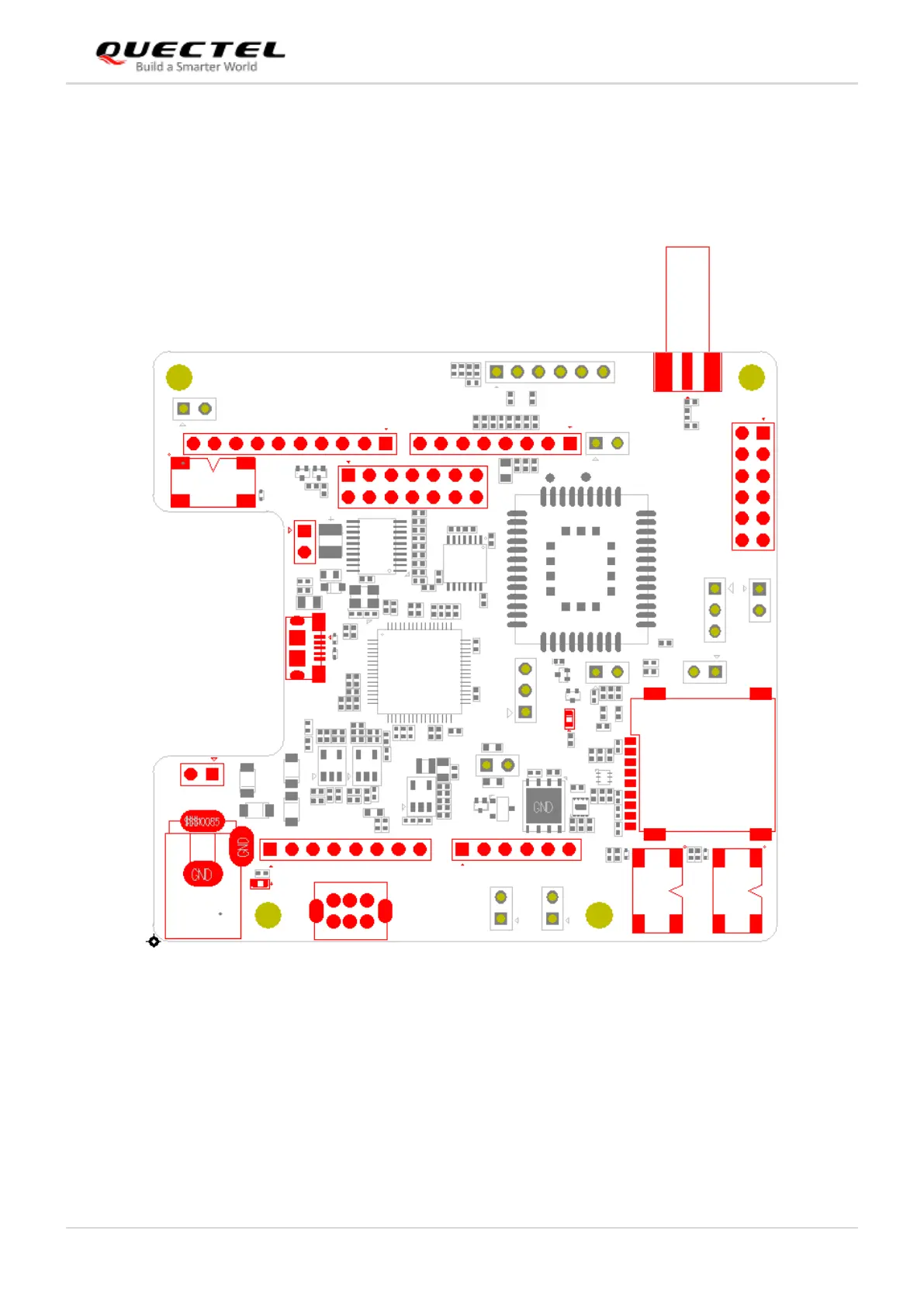

Figure 2: Interface Distribution Diagram of BC660K-GL-TE-B
