QVM 9
Series 34
■ Safety Valve : When excessive pressure occurs, the valve opens to reduce pressure by draining water.
When leaving home for a long time, water in the water heater should be drained to prevent
freezing of the water heater.
■ Strainer : Increases heating performance by filtering impurities from the system. When heating
performance is decreased, clean the filter by removing clip, washing out and re-inserting
the filter. Replace the clip!
CAUTION
THE WATER FLOWING OUT OF THE PRESSURE / RELIEF VALVE DURING IT’S OPERATION
MAY BE EXTREMELY HOT. BEFORE OPERATING RELIEF VALVE, MAKE SURE DRAIN LINE IS
INSTALLED TO DIRECT DISCHARGE TO A SAFE LOCATION SUCH AS AN OPEN DRAIN. AVOID
SCALDING AND/OR WATER DAMAGE.

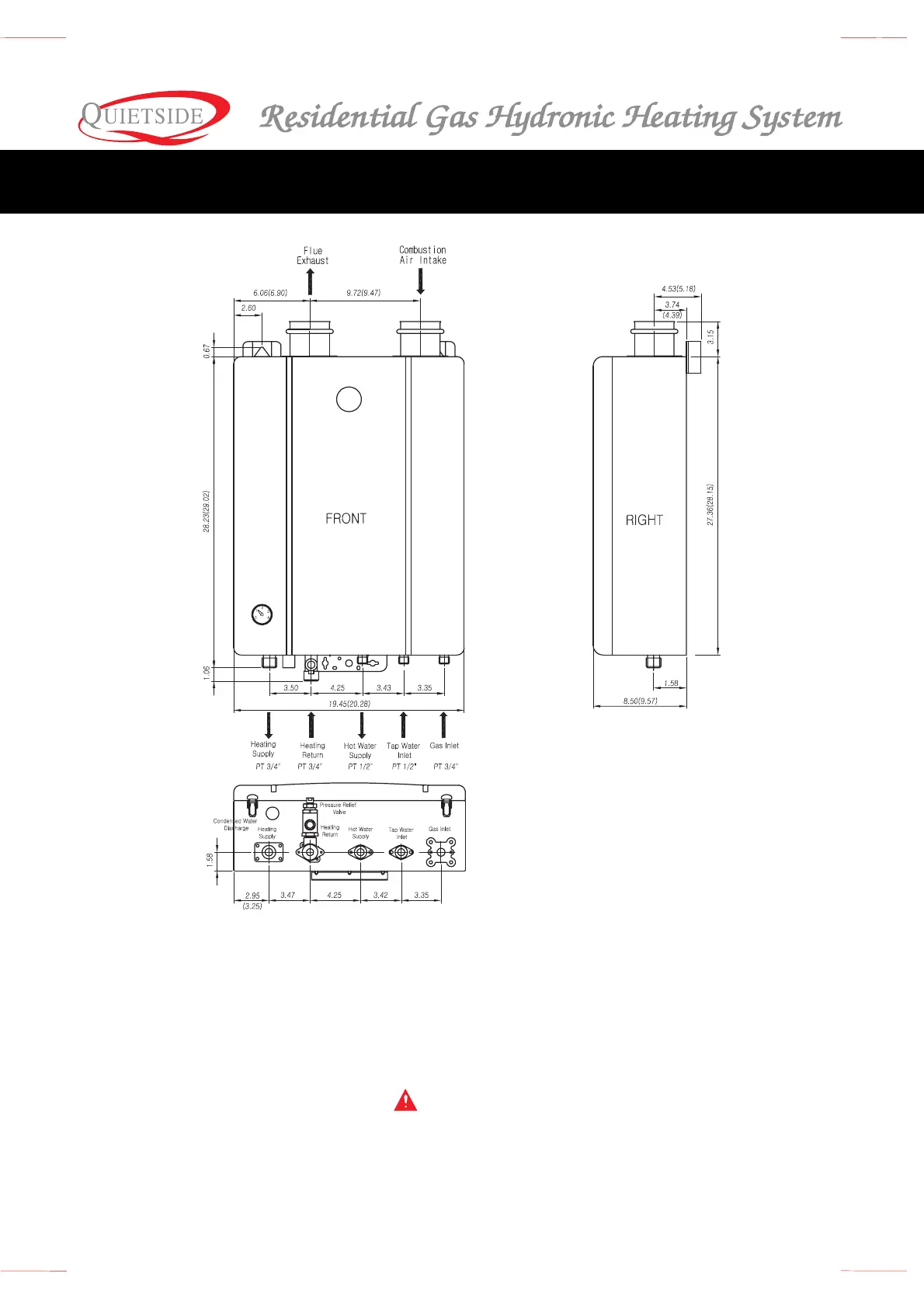

Dimensional Drawing of the Unit
(unit : inch)
※ Dimensions in “( )” apply 150W1-NG models.
