Quietside QVM 9-090W1-NG User Manual

QVM 9 Series 42
QVM 9-090W1-NG / QVM 9-125W1-NG
QVM 9-150W1-NG
MODEL RANGE : 90,000 ~ 135,000 BTU
THE CONDENSING GAS, WALL
- MOUNTED, MULTI-PURPOSE, HYDRONIC HEATING SYSTEM
---- KEY FEATURES
z Full, Dual Function Heating Design z Provides Hi-Temp Water for Heating the Home
z Natural to Propane Gas Conversion Kit z Provides Warm Water for Bathing & Washing
z Sealed Combustion 2-Pipe Venting System z On-Demand Hot Water Delivery.
z Modulating Gas Valve Control z Compact, Space-saving Design.
z Built-in Circulator Pump Assembly z Quiet, Vibration-free Operation.
z Built-in Expansion Tank z Limited lifetime Warranty on Heat Exchanger
z Built-in Freeze Protection with 1-Year on Parts.
z Digitally Controlled, Full-Logic Thermostat
QUIETSIDE MODEL NUMBER
QVM 9
090W1-NG
QVM 9
125W1-NG
QVM 9
150W1-NG
(Old model number) (KC-201) (KC-251) (KC-301)
Function Combo Water heater
CENTRAL HEATING WATER
Construction of Heat Exchanger Stainless Steel / Copper
Heat Input (BTU/hr) 46,000∼90,000 55,000∼115,000 65,000∼135,000
Max. Efficiency (%) 90
Temperature setting range (
o
F) 104 ∼ 176
Maximum working pressure (psi) 42.7
Pre-Charged Expansion Tank (gal) 1.82 1.82 2.24
Circulator Pump self priming
Freeze Protection device Thermistor
DOMESTIC HOT WATER
Heat Output (BTU/hr) 40,000∼78,300 50,000∼100,000 60,000∼117,400
Max. Temperature Setting (
o
F) 176
Continuous DHW production @ 45F delta-T (gpm) 3.5 4.4 5.3
Continuous DHW production @ 60F delta-T (gpm) 2.6 3.3 4.0
Continuous DHW production @ 72F delta-T (gpm) 2.2 2.8 3.3
Continuous DHW production @ 90F delta-T (gpm) 1.8 2.2 2.6
Maximum Working Pressure (psi) 249
OTHER DATA
Gas Type Liquefied Petroleum (L.P.), or Natural gas
Gas Consumption – LP (lbs/hr)
4.23 5.13 6.01
Gas Consumption (natural gas) (cu. ft/hr) 77.34 94.29 110.18
Gas Inlet Supply Pressure (natural : inch W.C.) (min - max) 5.82″∼9.70″
Manifold Pressure (inch W.C.) 0.71″∼2.36″ 0.87″∼3.00″ 0.87″∼2.92″
Usage (Heating & Hot Water) Dual
Water Storage Capacity (gal) 0.18 0.18 0.21
Power (volts/cycle) AC 115V / 60Hz
Power Consumption (watts) 120 ∼ 160
Ignition ELECTRONIC
Nox Emissions (Ref : 0%, O2 in flue gas natural gas ppm) 20 (less than)
Temp. of Exhaust Gas (
o
F) 185 (less than)

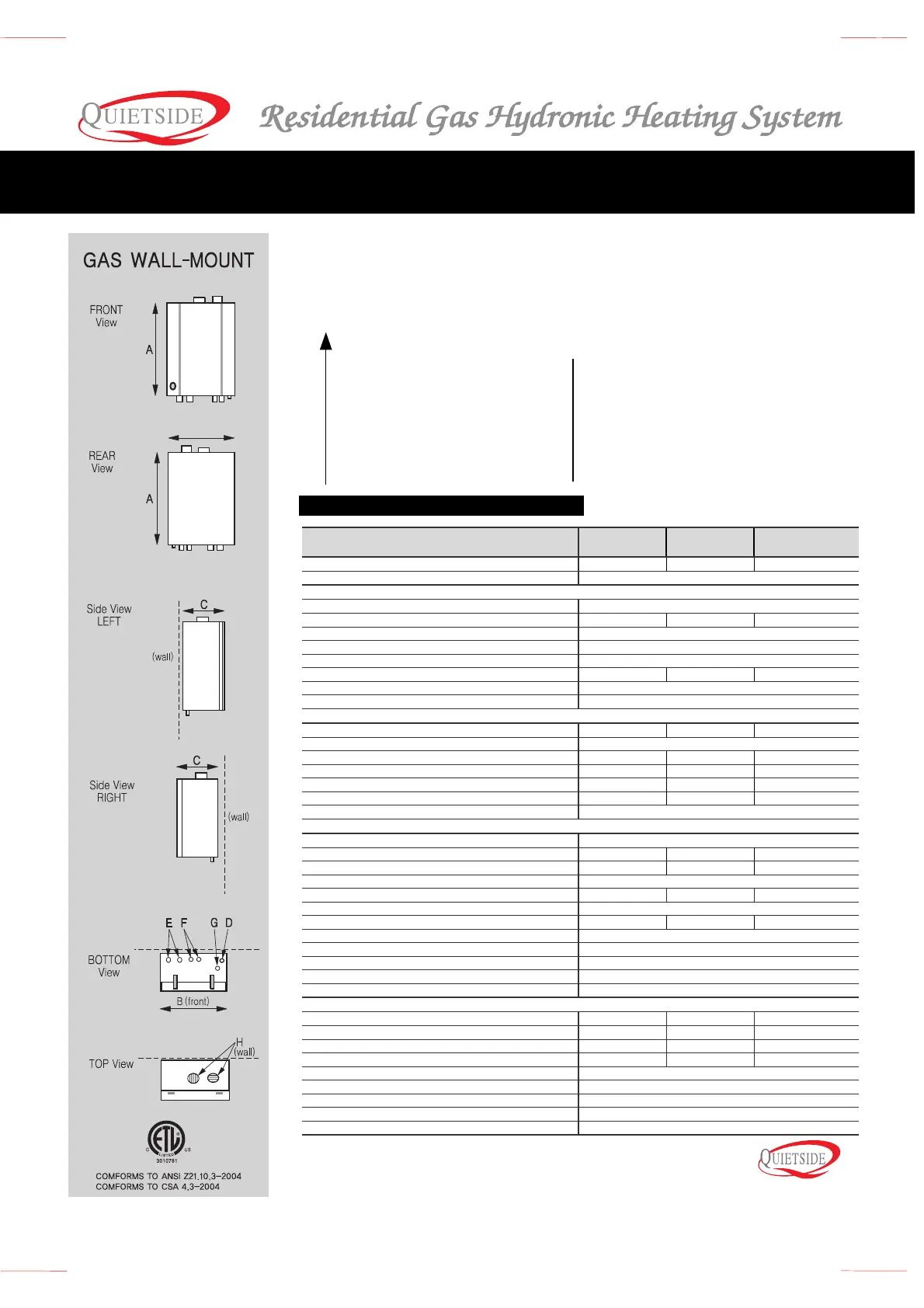

WEIGHT AND DIMENSIONS
Net Weight (lbs) 75 79 84
A Physical Dimensions: Height (inch) 27 ⅜″ 27 ⅜″ 28 ⅛″
B Width (inch) 19 ½″ 19 ½″ 20 ¼″
C Depth (inch) 8 ½″ 8 ½″ 9 ⅝″
D Connection : Gas Inlet (inch) 3/4″
E Connection : Heating Water Supply / Return (inch) 3/4″
F Connection : Domestic Hot Water Supply / Return (inch) 1/2″
G Connection : Primary Power (120 Volts) 1/2″
H Flue Diameter (Intake / Exhaust) (inch) 2.75″ / 2.95″
Specifications subject to change without prior notification
www. quietside.com NORTH AMERICA 2865 PELLISIER PLACE WHIT TIER CA 90601 : QUIETSIDE CORPORATION
