SPREADER OPERATION

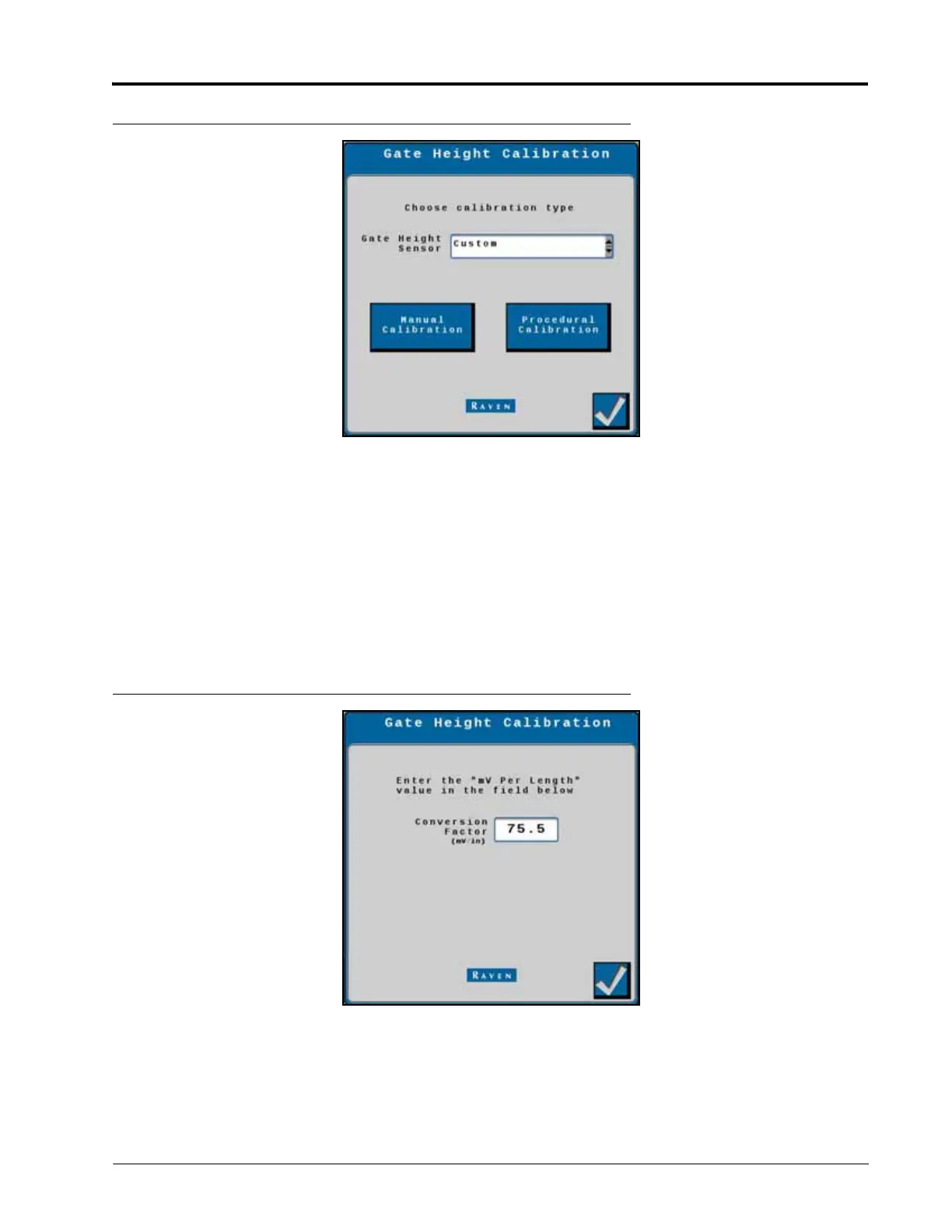

FIGURE 6. Manual Gate Height Calibration
• If the specific "mV Per Length" value is known (mV/in), refer to the Manual Calibration section on
page 25.
• If the specific "mV Per Length" value is not known, refer to the Procedural Calibration section on
page 26.
MANUAL CALIBRATION
If the specific "mV Per Length” value is known (mV/in), select the “Manual Calibration” button and enter the known
value into the field under the Manual Calibration tab to calibrate the gate height sensor.
FIGURE 7. Manual Gate Height Calibration
