3.12cSeriesandeSeriesparts
supplied

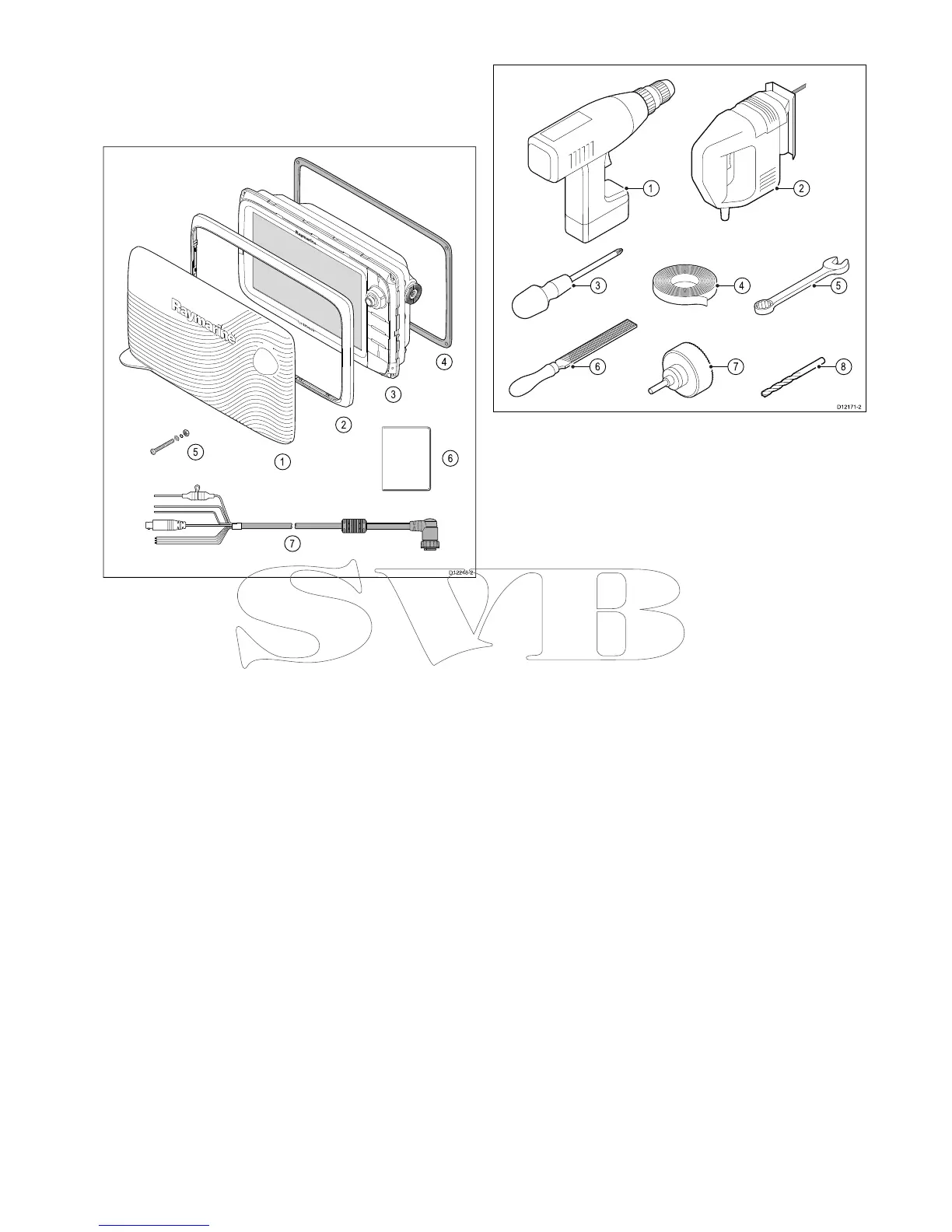

Thepartsshownbelowaresuppliedwiththe
cSeriesandeSeries(Excludinge7ande7D)
multifunctiondisplays.
D12248-2
7
1
2
3
4
6
5
1.Suncover
2.Frontbezel
3.Multifunctiondisplay(MFD)
4.Gasket(requiredforsurfacemounting)
5.4xsetsofxings(forsurfacemounting)
6.Documentationpack,includes:
•MultilingualCD
•Mountingandgettingstartedmultilingualguide
•Mountingtemplate
•Warrantypolicy
7.Poweranddatacable
3.13Toolsrequiredforinstallation
D12171-2
1
4
5
3
876
2
1.Powerdrill.
2.Jigsaw.
3.Pozidrivescrewdriver.
4.Adhesivetape.
5.Spannerforsurfacemountingorbracket
mountingxings.
6.File.
7.Holesawforushmounting(Forholesawsize
refertoyourproduct’smountingtemplate).
8.Drillbitforsurfacemountingorbracketmounting.
Planningtheinstallation
45
