2.2 Display Installation
2.2.1 Choosing a Location
When choosing the location to mount the
NAV
Display unit, please consider
the following criteria for the site:
l
The best location to provide ease of operation and viewing of the unit.
l
The best location to provide protection from the elements of the
environment. Even though the
NAV
398
is designed to meet the toughest
USCG waterproofing specifications, common sense dictates that it
should be mounted, whenever possible, so that it is not exposed to the
direct effects of salt spray or the hot sun.
l
The best location with the most separation from sources of interference.
lIIizl

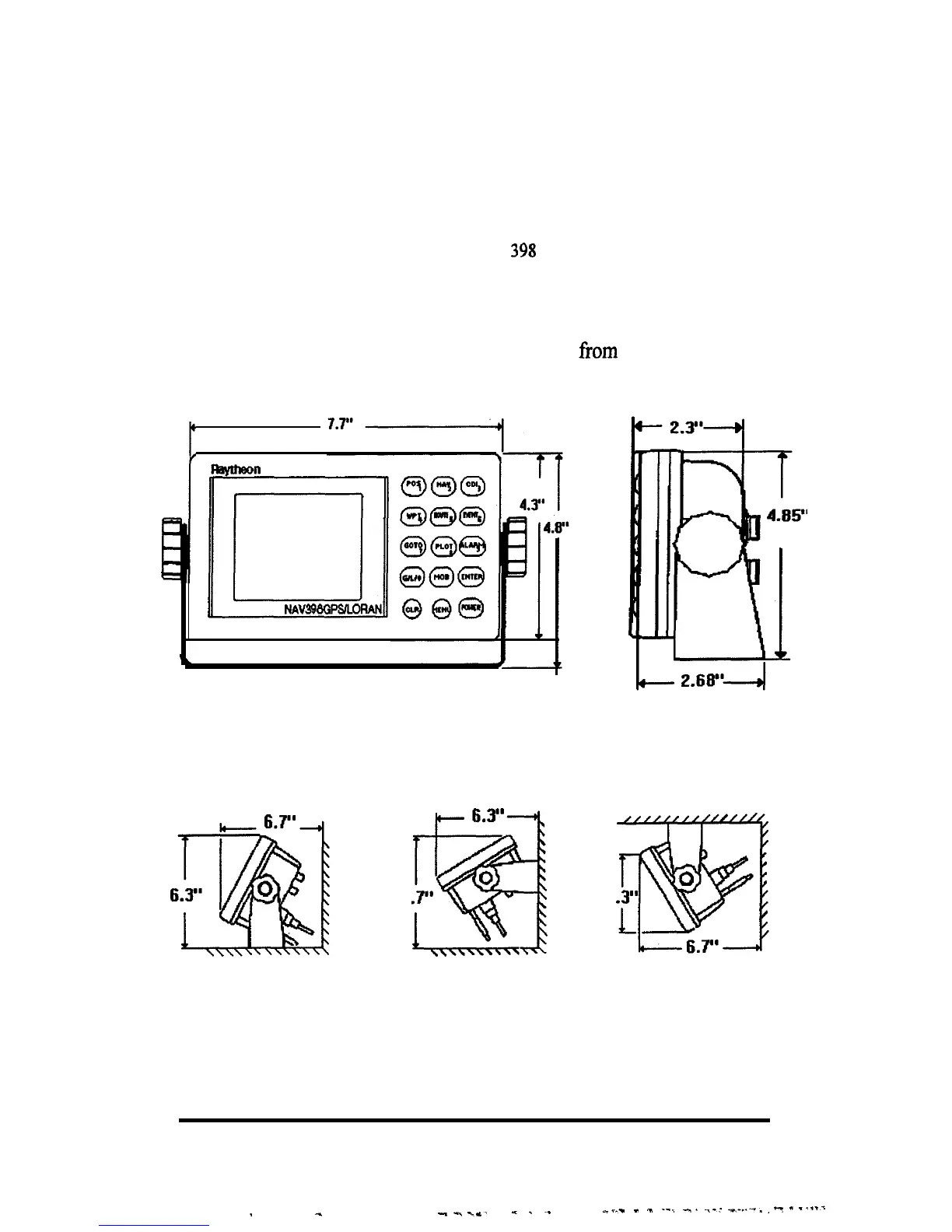

NAV396GPSLORAN
The unit can be mounted to a chart tabletop, suspended from the overhead,
or attached to a bulkhead using the yoke bracket supplied.
6 6
TABLE TOP
BULKHEAD OVERHEAD
INSTALLATION 2-2
