5.3 Bracket Mounting (Preferred Method)
This method allows for the easy removal of a display as and when
required, for either security reasons or to prevent damage or discomfort
whilst not in use.

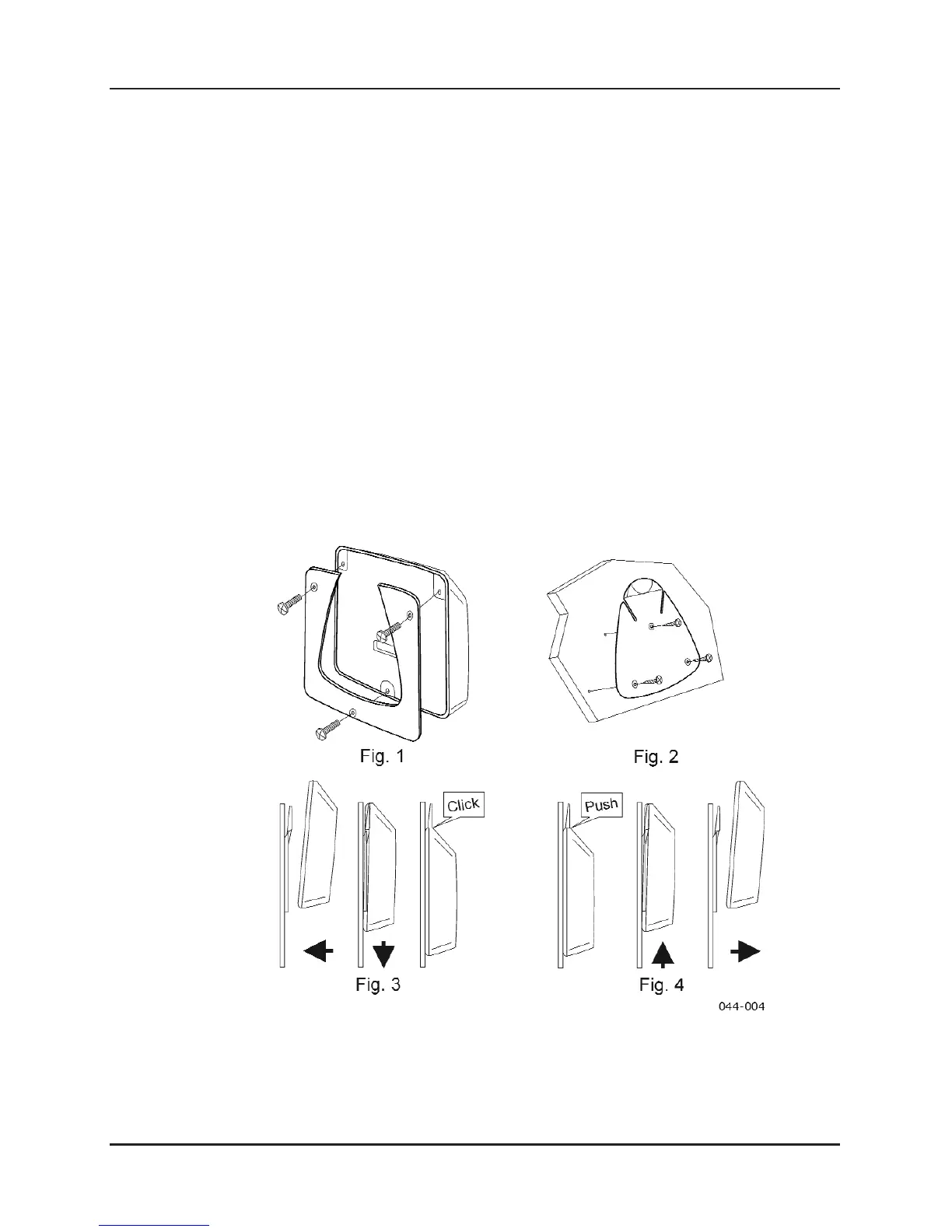

1. Using the three supplied M4 bolts attach the back plate to the rear of
the display (Fig.1).
2. Drill three 2.5mm holes marked "A" on the Template and using the
supplied self tapping screws, screw the clip bracket to the mounting
surface (Fig.2).
3. Place the display flat against the bracket slightly higher than the final
position and slide gently down into position. There will be a small
click as the bracket secures the display into position (Fig.3).
4. To release the display press lightly on the bracket tab and slide the
display upwards (Fig.4).
