Thep70sandp70RscanbeusedtocontrolEvolution™andSPXautopilotsystems.Witheither

autopilotsystemthep70s/p70Rsisconnectedtothesystemusingthesamemethod,shownbelow.

Note:

AnEvolution™systemthatincludesandA

CU-100orACU-150requiresadedicated12Vdcpower

supplyconnectedtotheSeaTalkng®network.

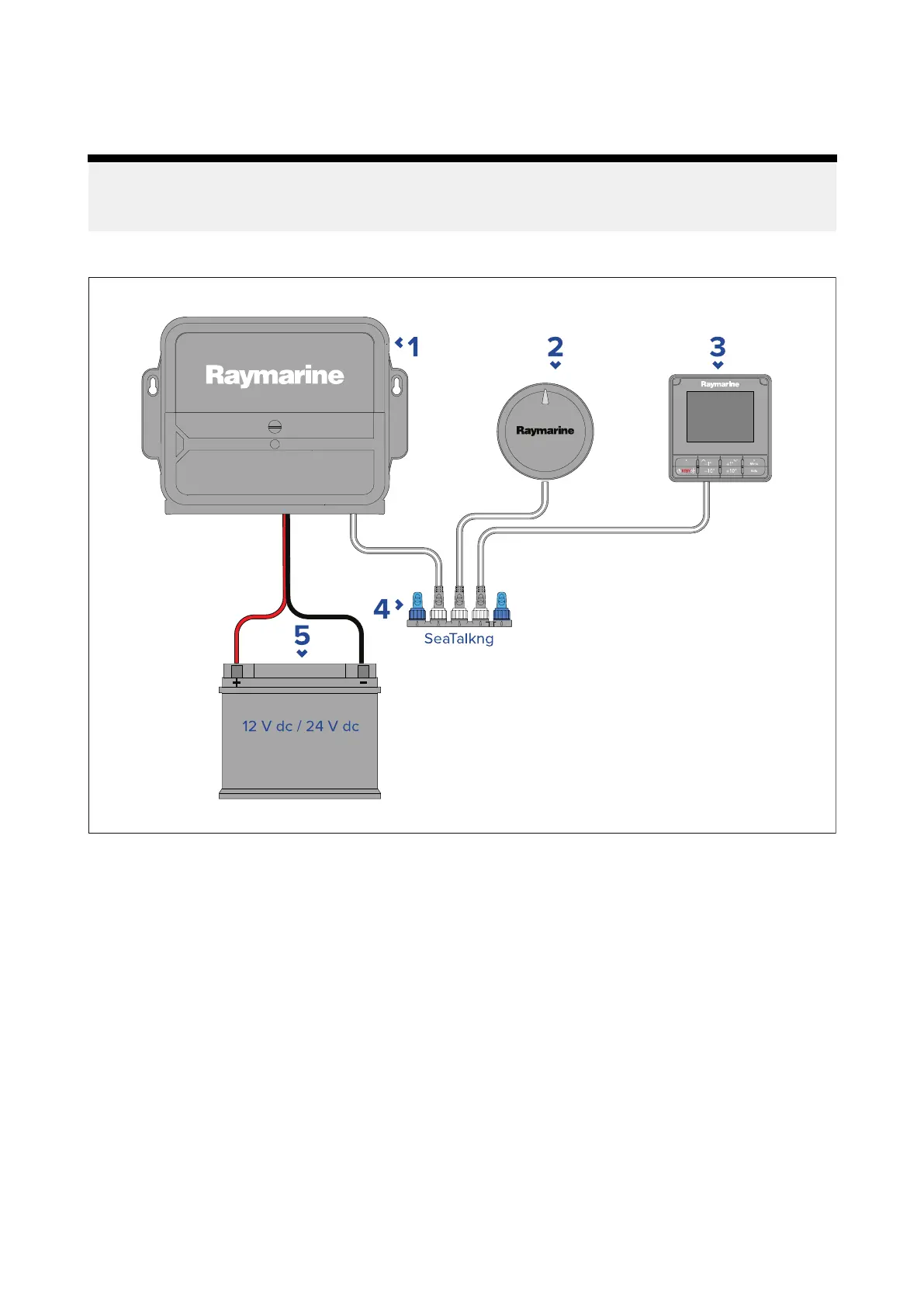

Example:basicEvolution™autopilotsystem

1.A CUunit(e.g.:ACU-200)

2.EVsensor(e.g.:EV-1)

3.p70s/p70RsPilotcontroller(p70sshown)

4.SeaTalkng®5–wayconnector(A06064)

5.12Vdc/24Vdcpowersupply

Connections33
