Disassembly and reassembly
CAUTION: Electrostatic Discharge (ESD)
This product contains components that can be damaged by electrostatic discharge.
If the cover is removed, any work on the product must be carried out at a properly equipped anti-
static station by personnel wearing anti-static straps.
Tools required
To assemble/disassemble the Course Computer you will need:
• 3 mm Allen key
• cross-head screwdriver

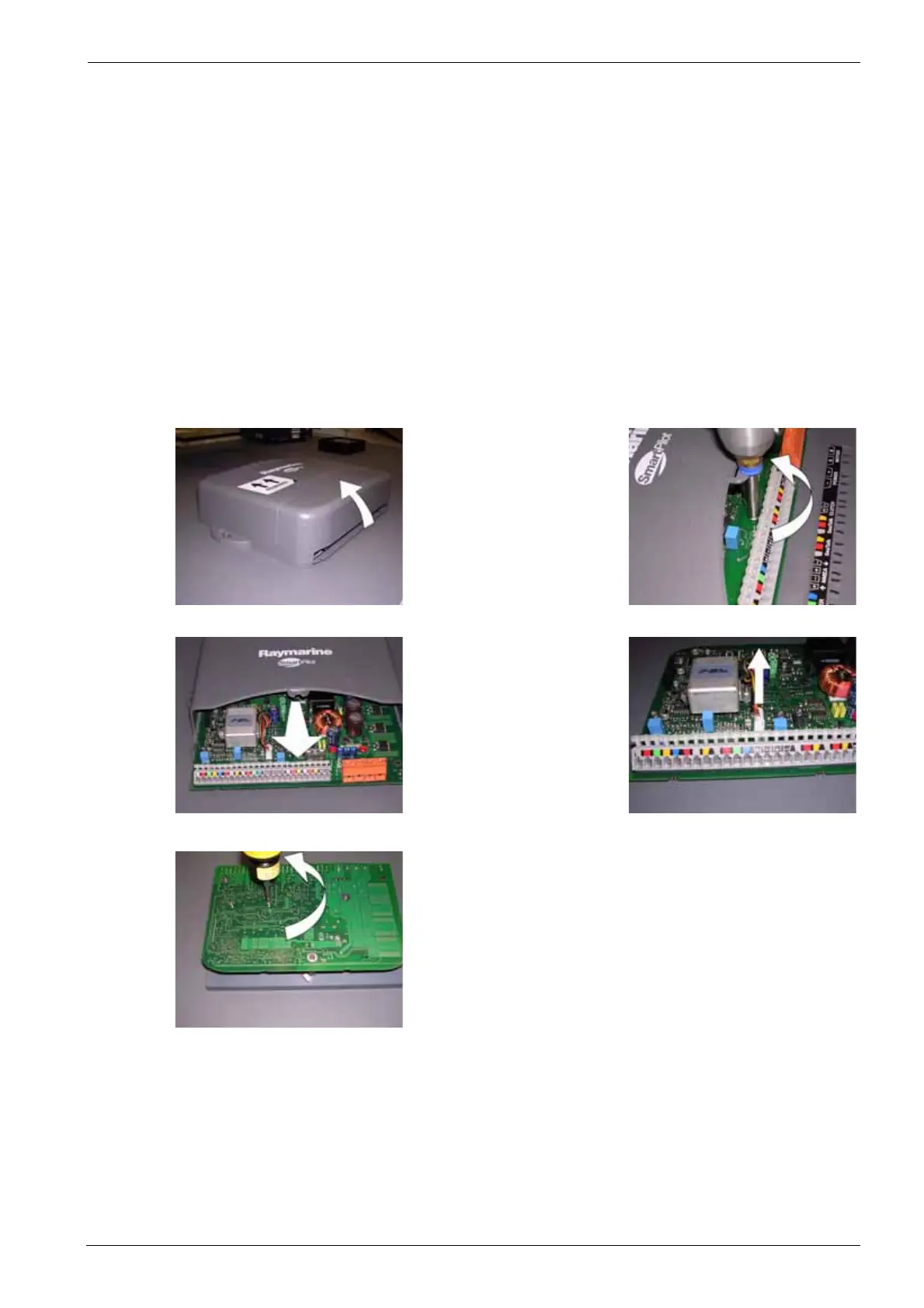

Disassembly/reassembly
Remove the connector cover
Remove the PCB retaining screw
Slide out the PCB
Unplug the rate gyro connector from
the PCB
Remove the gyro retaining screws on
the rear of the PCB (retain the screws
and plastic pillars)
