If your installation doesn't require vertical
reinforcement but does need top and bottom
fastening holes for the door bracket, fasten as shown
in Figure 2.
INSTALLATION STEP 11
Fasten the Door Bracket
A horizontal brace should be long enough to be
secured to 2 vertical supports. A vertical brace
should cover the height of the top panel.
The illustration shows one piece of angle iron as the
horizontal brace. For the vertical brace, 2 pieces of
angle iron are used to create a "U"-shaped support.
The best solution is to check with your garage door
manufacturer for an opener installation door
reinforcement kit.
• Center the door bracket on the previously marked
vertical guideline used for the header bracket
installation.
• Position the bracket on the face of the door within
the following limits:
A) The top edge of the bracket 2"-4" (5-10 cm)
below the top edge of the door.
B) The top edge of the bracket directly below any
structural support across the top of the door.
• Mark and drill 5/16" left and right fastening holes.
Secure the bracket as shown in Figure 1 if there is
vertical reinforcement.
glass panel, etc.). (Not Provided)
18
HARDWARE SHOWN ACTUAL SIZE

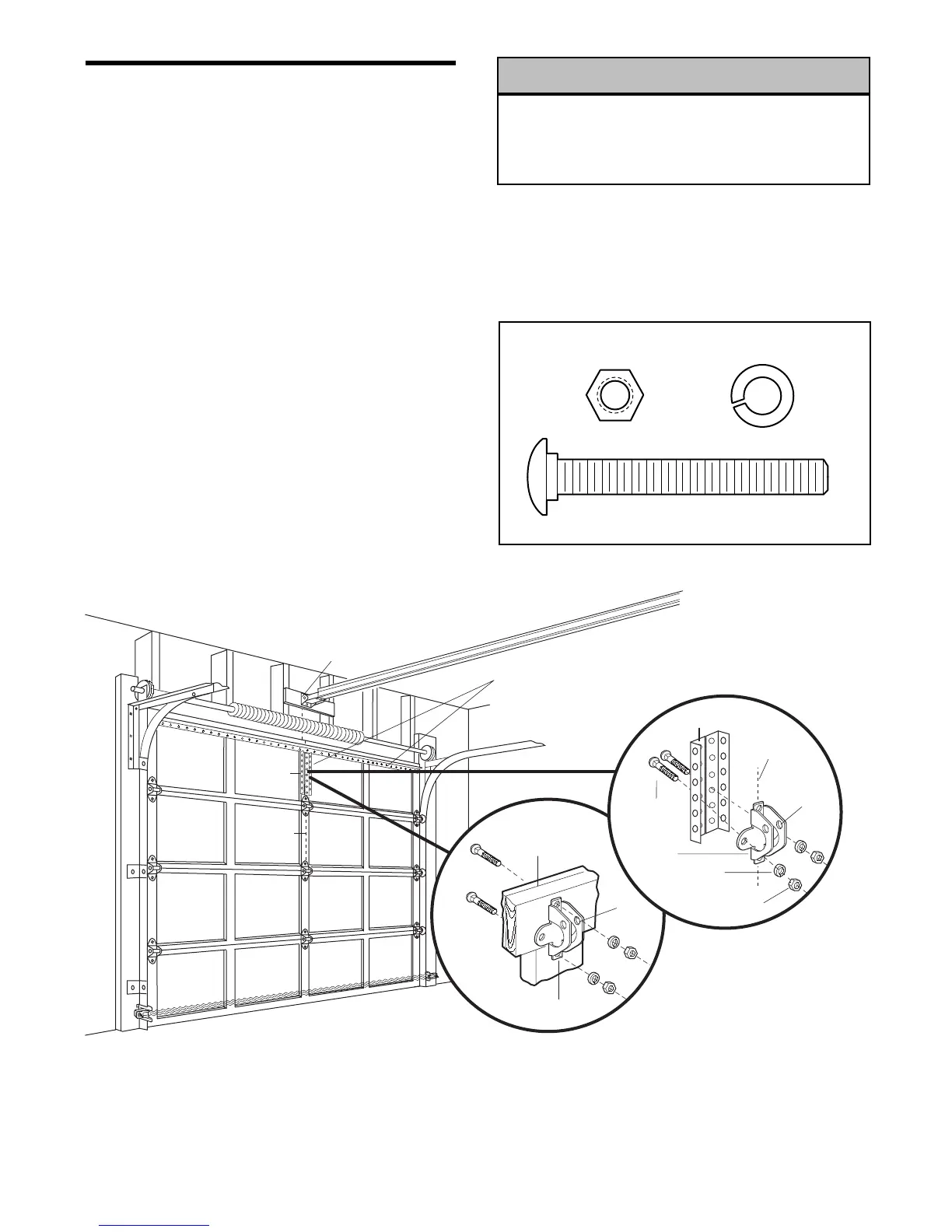

Figure 2
Figure 1
Fiberglass, aluminum or lightweight steel garage doors
WILL REQUIRE reinforcement BEFORE installation of
door bracket. Contact your door manufacturer for
reinforcement kit.
