Raynor ControlHoist ATS2113X-CX User Manual

6
U
P
C
E
I
L
I
N
G
M
O
U
N
T
O
N
L
Y
10
1
N
O
TIC
E
3
5
4
9
8
11
12
2
7
29
2
1
3
4
5

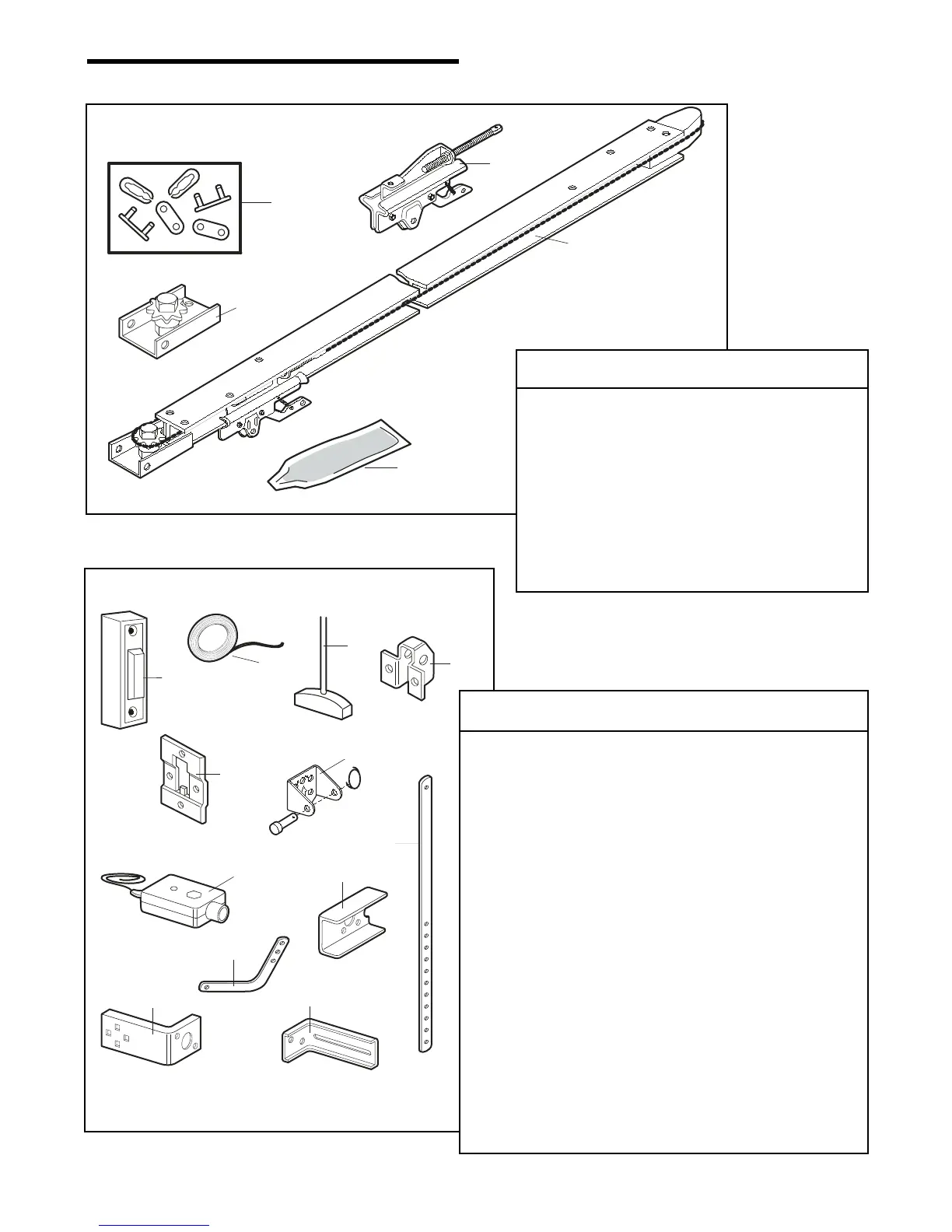

Installation Parts
REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41A2780 Chain pulley bracket
3 41A3489 Complete trolley assembly
4 CD1008 8 Foot (2.44 m) Rail Assy.
CD1010 10 Foot (3.05 m) Rail Assy.
CD1012 12 Foot (3.66 m) Rail Assy.
CD1014 14 Foot (4.27 m) Rail Assy.
5 83A11 Rail grease
NOT SHOWN
6 41C771 Center Bracket (1 pc.)
KEY PART
NO. NO. DESCRIPTION
1 41A4166 Door control push button
2 41B4494-1 2-conductor bell wire, white &
white/red
3 41A2828 Emergency release rope &
handle assembly
4 12B374 Door bracket
5 12B380 Door bracket plate
6 41A4353 Header bracket w/clevis pin & fastener
7 41A4373A Safety sensor kit
(receiving and sending eyes)
with 3' (0.9 m) 2-conductor bell wire
attached
8 178B35 Curved door arm section
9 12B483 C Wrap bracket
10 178B34 Straight door arm section
178B73 Straight door arm section (14' [4.27 m]
door)
11 12B484 Square hole mounting bracket
12 12B485 Slotted mounting bracket
NOT SHOWN
41A2770 Installation hardware bag (page 5).
41A4116 Safety sensor hardware
114A3156 Owner’s manual
114A3156SP Owner’s manual - Spanish
