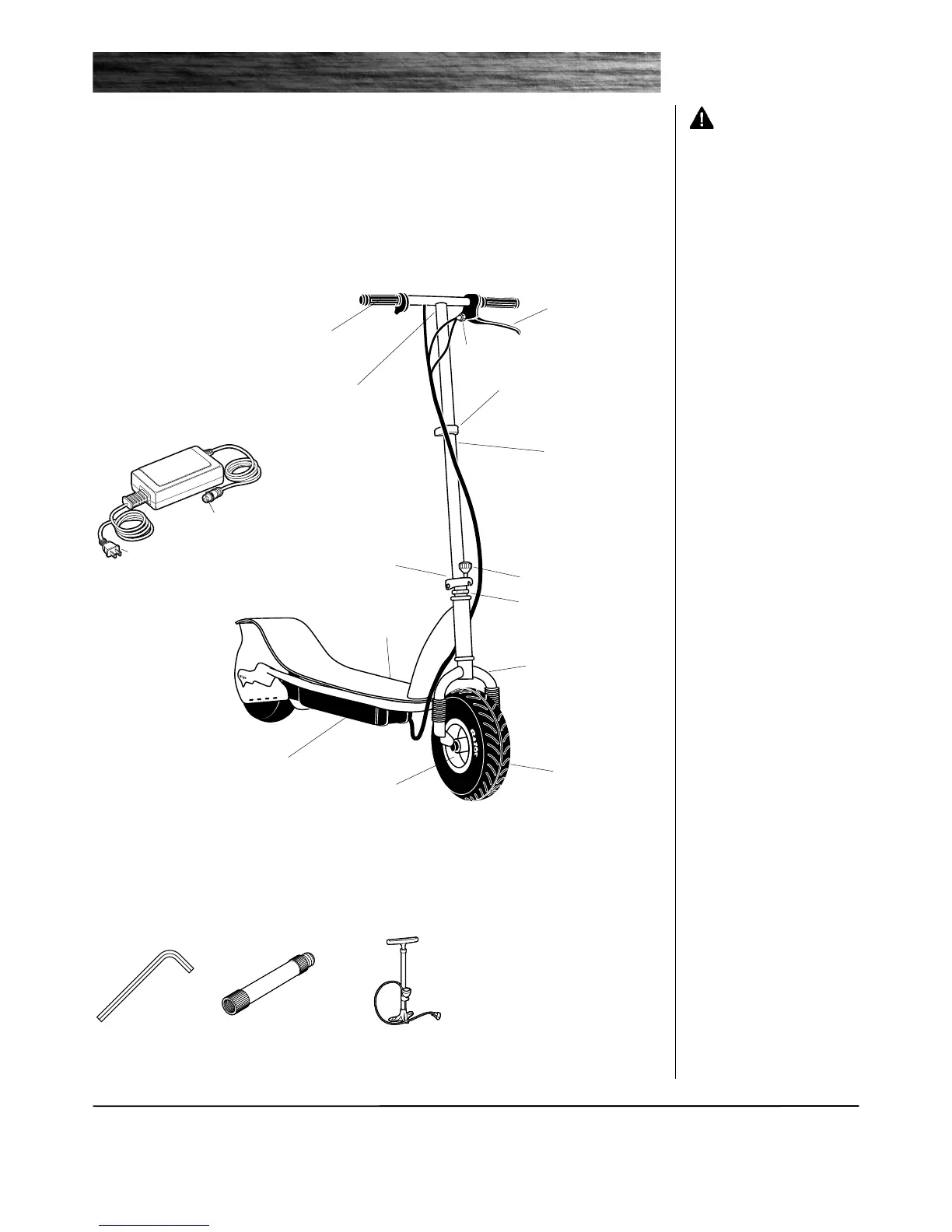

Charger
Charger
Plug
Charger
Port
Remove contents from box. Remove the foam separators that protect the components from damage during
shipping. Inspect the contents of the box for scratches in the paint, dents or kinked cables that may have
occurred during shipping. Because the scooter was 95 percent assembled and packed at the factory, there
should not be any problems, even if the box has a few scars or dents.
Estimated Assembly and Set-Up Time
Razor recommends assembly by an adult with experience in bicycle mechanics.
Allow up to 20 minutes for assembly, not including initial charge time.
Allow up to 12 hours for initial charge (see page 3 for charging information.
BEFORE YOU BEGIN
2
WARNING:
DO NOT USE NON-
RAZOR PRODUCTS WITH
YOUR RAZOR ELECTRIC
SCOOTER. The scooter has
been built to certain Razor design
specifications. The original
equipment supplied at the time of
sale was selected on the basis of
its compatibility with the frame,
fork and all other parts. Certain
aftermarket products may or may
not be compatible.
Required Tools
Some tools may be supplied; however, we recommend the use of mechanic’s grade tools. Use the supplied
tools only as a last resort.
Need Help? Visit our web site for updates and a list of authorized service centers at www.razor.com
or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
6mm hexagonal
key wrench
(included)
Bicycle-style tire pump
for Schrader valve
tires, with pressure
gauge
Wheel
Brake Lever
Brake Lever
Adjuster
Extension Tube
Folding System
Speed Control
Front Fork
Tire
Battery pack
and motor
controller
Headset
T-tube
Handlebar height adjust
quick-release
On/off switch
and charging port
Inflation valve
adapter/extender
(with E200 & E300
only)
Locking Knob
